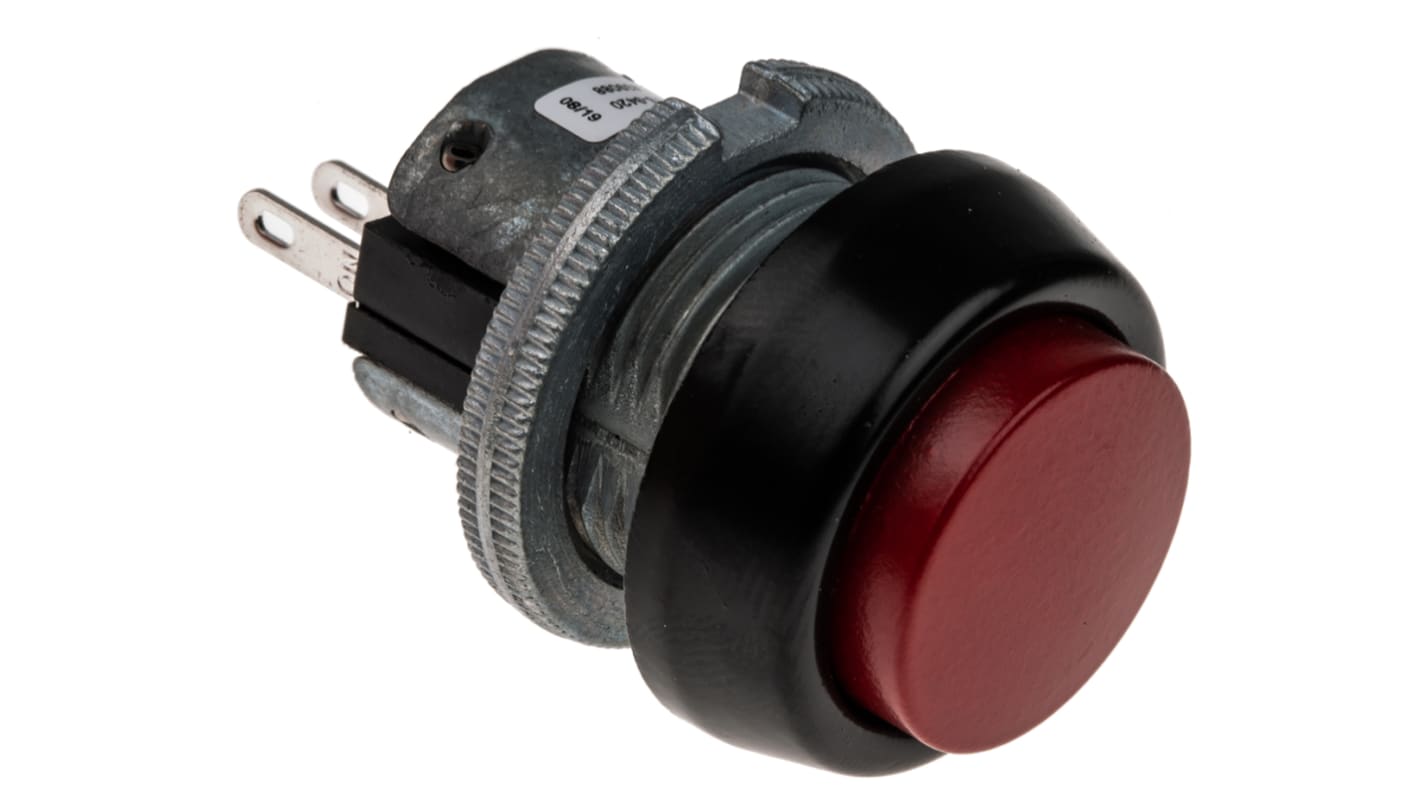

ITW Switches 76-94 Series Push Button Switch, Momentary, Panel Mount, 22mm Cutout, SPDT, Clear LED, 250V ac, IP67
- RS-artikelnummer:
- 173-8580
- Tillv. art.nr:
- 76-9420/439088R
- Tillverkare / varumärke:
- ITW Switches
Det är tyvärr inte möjligt att visa lagerbehållning för närvarande. Uppdatera sidan och försök igen.
Nästa dag-leverans inte möjlig
Lagt till varukorgen
Pris (ex. moms) Var (i en låda med 30)
194,575 kr
(exkl. moms)
243,219 kr
(inkl. moms)
| Enheter | Per unit | Per Box* |
| 30 - 30 | 194,575 kr | 5 837,25 kr |
| 60 - 120 | 188,737 kr | 5 662,11 kr |
| 150 - 270 | 184,846 kr | 5 545,38 kr |
| 300 + | 179,008 kr | 5 370,24 kr |
- RS-artikelnummer:
- 173-8580
- Tillv. art.nr:
- 76-9420/439088R
- Tillverkare / varumärke:
- ITW Switches
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- BZ
Produktdetaljer
High Impact IP67 Pushbutton Switches
The 76-94 Series from ITW, have been designed to cover a wide range of harsh environmental applications. Such as:-
• Military Environments
• Robust Industrial
• Vandal resistant requirements
• Mining Industries
• Petrochemical
• Process control
• Material Handling
• Robust Industrial
• Vandal resistant requirements
• Mining Industries
• Petrochemical
• Process control
• Material Handling
Features and Benefits
• The range is available in 3 styles, push-button, rotary and panel lamp.
• Push-button comes in 4 button styles with 3 colour options and has solder/faston terminals as standard.
• The rotary is a single pole, 2 position, snap action switch with green or red spot indicator on the black actuator.
• The indicator version is available with a red, green or amber lens.
• Panel sealed to IP67 and due to the construction and the materials used, are all capable of surviving the impact of approximately a 5 kg mass dropped from 40 cm (20J).
(IP67 - totally protected against dust and protected against the effects of temporary immersion between 15 cm and 1 m. Duration of test 30 minutes).
• The bezels and the actuators have been designed from non- sparking zinc alloy.
• Explosive-proof material used.
• Push-button comes in 4 button styles with 3 colour options and has solder/faston terminals as standard.
• The rotary is a single pole, 2 position, snap action switch with green or red spot indicator on the black actuator.
• The indicator version is available with a red, green or amber lens.
• Panel sealed to IP67 and due to the construction and the materials used, are all capable of surviving the impact of approximately a 5 kg mass dropped from 40 cm (20J).
(IP67 - totally protected against dust and protected against the effects of temporary immersion between 15 cm and 1 m. Duration of test 30 minutes).
• The bezels and the actuators have been designed from non- sparking zinc alloy.
• Explosive-proof material used.
Note
Specifikationer
Attribute | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | No |
| Panel Cut Out Diameter | 22mm |
| Mounting Type | Panel Mount |
| Push Button Colour | Red |
| Contact Configuration | SPDT |
| Voltage Rating | 250V ac |
| Push Button Style | Round |
| LED Colour | Clear |
| IP Rating | IP67 |
| Series | 76-94 |
| Contact Current Rating | 10 A @ 250 V ac |
| Contact Material | Fine Silver |
| Contact AC Voltage Rating | 250V |
| Case Colour | Black |
| Manufacturer Part No. | 76-9420/439088R |
| Terminal Type | Solder |
| Operating Temperature Range | -40 → +125°C |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
