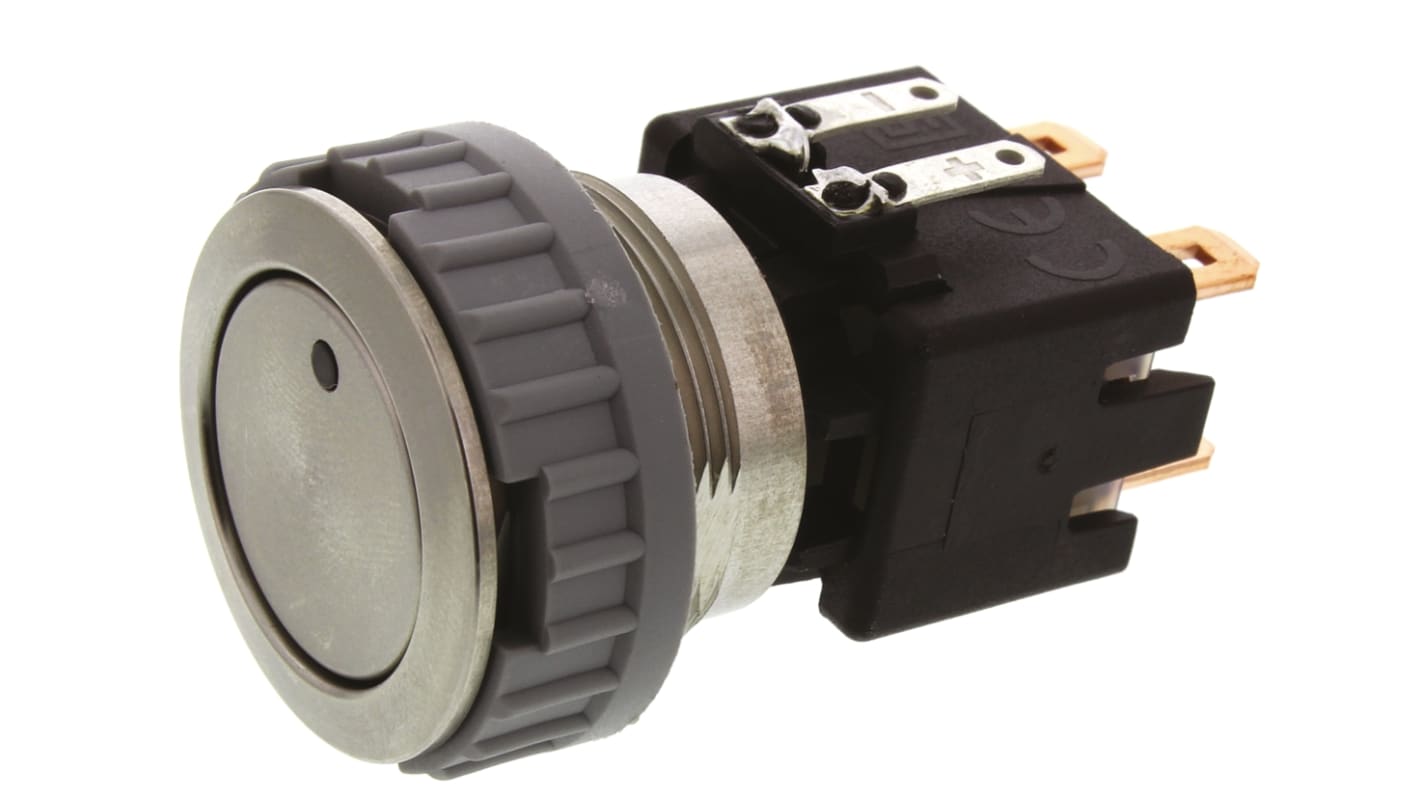

Schurter Illuminated Push Button Switch, Latching, Panel Mount, 22mm Cutout, DPDT, Red LED, 250V ac, IP64 (Front); IP00

Se alla Push Button Switches
Mängdrabatt möjlig

Antal (1 låda med 10 enheter)*

4 232,82 kr

(exkl. moms)

5 291,02 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 20 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per Låda*
10 - 10423,282 kr4 232,82 kr
20 - 30414,389 kr4 143,89 kr
40 - 90401,274 kr4 012,74 kr
100 +383,914 kr3 839,14 kr

*vägledande pris

RS-artikelnummer:
173-7941
Tillv. art.nr:
1241.6833.1121000
Tillverkare / varumärke:
Schurter
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Schurter

Switch Operation

Latching

Illuminated

Yes

Panel Cut Out Diameter

22mm

Mounting Type

Panel Mount

Contact Configuration

DPDT

Voltage Rating

250V ac

Push Button Style

Round

LED Colour

Red

IP Rating

IP64 (Front); IP00 (Rear)

Contact Current Rating

12 A @ 250 V ac

Manufacturer Part No.

1241.6833.1121000

Terminal Type

Tab

COO (Country of Origin):
DE

Anti-Vandal M19 & M22 Push Button Switches - MSM LA Series (Latching)


Robust pushbutton switch suitable for use in harsh environments - IK07 shock resistance (DIN EN 50102)
IP64 sealed stainless steel housing and latching (push-on, push-off) actuator
Actuator with 10N operating force and 4.5mm travel - protrudes 3.7mm above panel in off state
Quick connect terminals
Long life - up to 150,000 mechanical operations
Non-illuminated or red, green or blue LED point or ring illuminated versions, available in 19 or 22mm Ø panel cut outs
Switching status optically visible - illuminated viewing angle of 180°

Note

Point illuminated types require suitable series resistor; Ring illuminated types incorporate resistors for 24Vdc operation

Approvals

ENEC, UL, CSA
