KNITTER-SWITCH MAV Series Illuminated Vandal Proof Push Button Switch, Momentary, Panel, 16 mm Cutout, SPST, Green LED,

RS-artikelnummer:: 164-9979
Tillv. art.nr:: MAV16CARE-6-JR-12V
Tillverkare / varumärke:: KNITTER-SWITCH

KNITTER-SWITCH MAV Series Illuminated Vandal Proof Push Button Switch, Momentary, Panel, 16 mm Cutout, SPST, Green LED,

Antal (1 enhet)*

124,24 kr

(exkl. moms)

155,30 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

11 enhet(er) är redo att levereras
Dessutom levereras 20 enhet(er) från den 01 april 2026

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 +	124,24 kr

*vägledande pris

RS-artikelnummer:: 164-9979
Tillv. art.nr:: MAV16CARE-6-JR-12V
Tillverkare / varumärke:: KNITTER-SWITCH

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	KNITTER-SWITCH
	Switch Operation	Momentary
	Product Type	Vandal Proof Push Button Switch
	Illuminated	Yes
	Series	MAV
	Panel Cutout Size	16 mm
	Mount Type	Panel
	Contact Configuration	SPST
	LED Colour	Green
	Terminal Type	Solder Lug
	IP Rating	IP67
	Actuator Style	Round
	Minimum Operating Temperature	-20°C
	Contact AC Voltage	250V
	Contact DC Voltage	36V
	Switch Configuration	On-Off
	Maximum Operating Temperature	120°C
	Switch Contact Current	2 A
	Standards/Approvals	CSA, UL

	Välj alla
	Brand KNITTER-SWITCH
	Switch Operation Momentary
	Product Type Vandal Proof Push Button Switch
	Illuminated Yes
	Series MAV
	Panel Cutout Size 16 mm
	Mount Type Panel
	Contact Configuration SPST
	LED Colour Green
	Terminal Type Solder Lug
	IP Rating IP67
	Actuator Style Round
	Minimum Operating Temperature -20°C
	Contact AC Voltage 250V
	Contact DC Voltage 36V
	Switch Configuration On-Off
	Maximum Operating Temperature 120°C
	Switch Contact Current 2 A
	Standards/Approvals CSA, UL

Datasheet

COO (Country of Origin):: CN

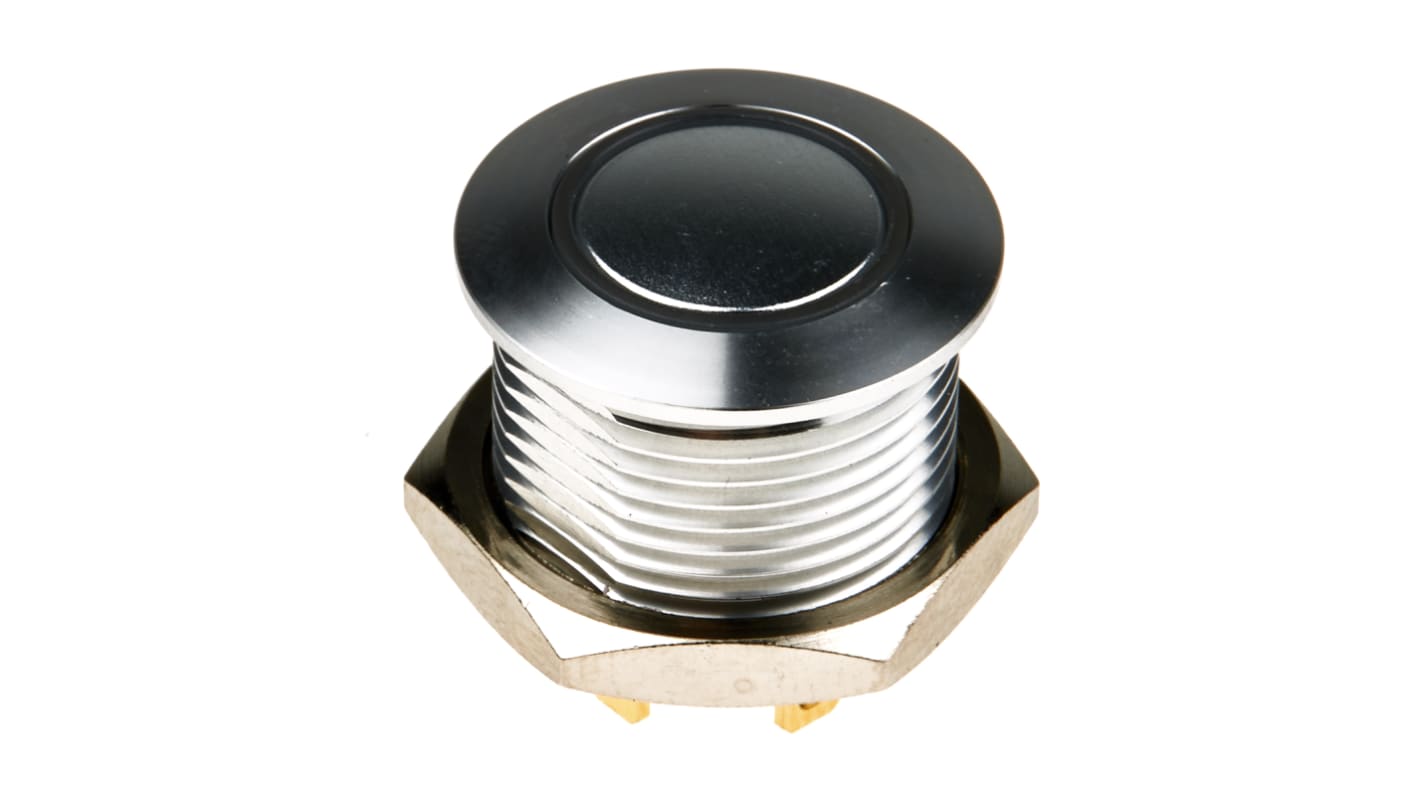

Knitter-Switch Push Button Switch

The Knitter-switch push button is a 1-pole on-off switch. It is a simple type of push button which is used when some kind of action is required to be carried out in a machine. The switch is available with flat or shaped surfaces. This switch exhibits excellent tactile feel consistent actuation force. It is a momentary type with a green LED. Its operating current rating is 2A.

Features and Benefits

• Operating temperature ranges between -20°C and 70°C

• Panel type mounting

• Silver alloy is used as contact material

• Solder lug Terminal type

• Voltage rating is 36VDC

Applications

• Conveyor controls

• Heavy equipment

• Industrial instruments

• Lifts

Certifications

• IP67 rating
