KNITTER-SWITCH MAV Series Illuminated Vandal Proof Push Button Switch, Momentary, Panel, 19.2 mm Cutout, DPDT, Green

Se alla Push Button Switches

Antal (1 fack med 50 enheter)*

11 244,60 kr

(exkl. moms)

14 055,75 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Tillfälligt slut
  • Leverans från den 26 juni 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per Bricka*
50 +224,892 kr11 244,60 kr

*vägledande pris

RS-artikelnummer:
164-9515
Tillv. art.nr:
MAV19A0F20E-624-JR
Tillverkare / varumärke:
KNITTER-SWITCH
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

KNITTER-SWITCH

Switch Operation

Momentary

Product Type

Vandal Proof Push Button Switch

Actuator Colour

Silver

Illuminated

Yes

Panel Cutout Size

19.2 mm

Series

MAV

Mount Type

Panel

Contact Configuration

DPDT

Terminal Type

Solder Lug

LED Colour

Green

IP Rating

IP67

Contact AC Voltage

250V

Contact DC Voltage

28V

Actuator Style

Round

Minimum Operating Temperature

-20°C

Switch Configuration

On-Off

Maximum Operating Temperature

120°C

Standards/Approvals

CSA, UL

Switch Contact Current

3 A

COO (Country of Origin):
CN

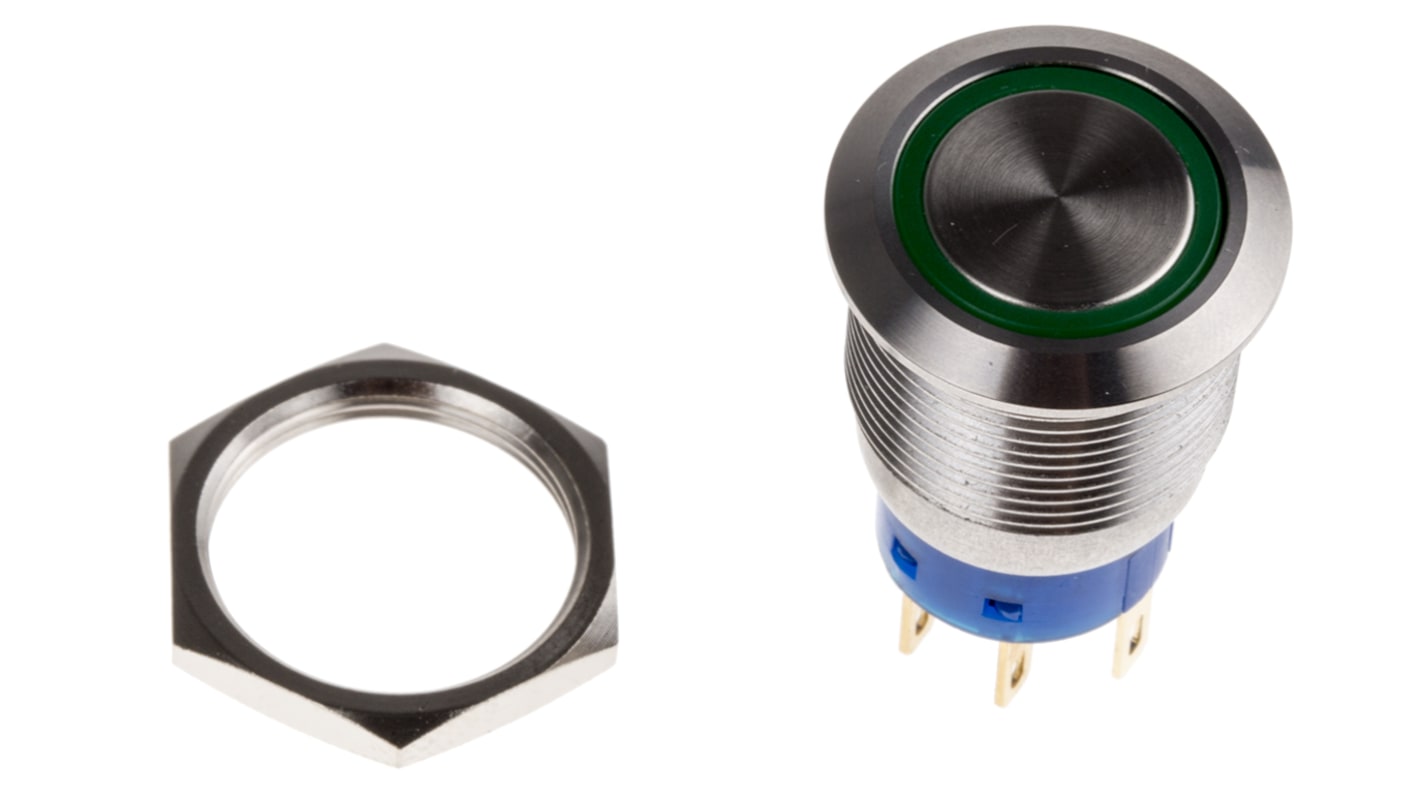

The Knitter-Switch MAV19 series, double pole double throw (DPDT), momentary green LED recessed push button switch has M19x1 bushing size, 250V AC & 28V DC contact voltage rating and 3A contact current rating.

Stainless steel button material

Ring shape lens style

IP67 protection rating

Solder lugs terminals

Gold flash over silver solder tab surface

Operating temperature ranging from -20 °C to +55 °C

LED voltage : 24 V, ca. 12 mA
