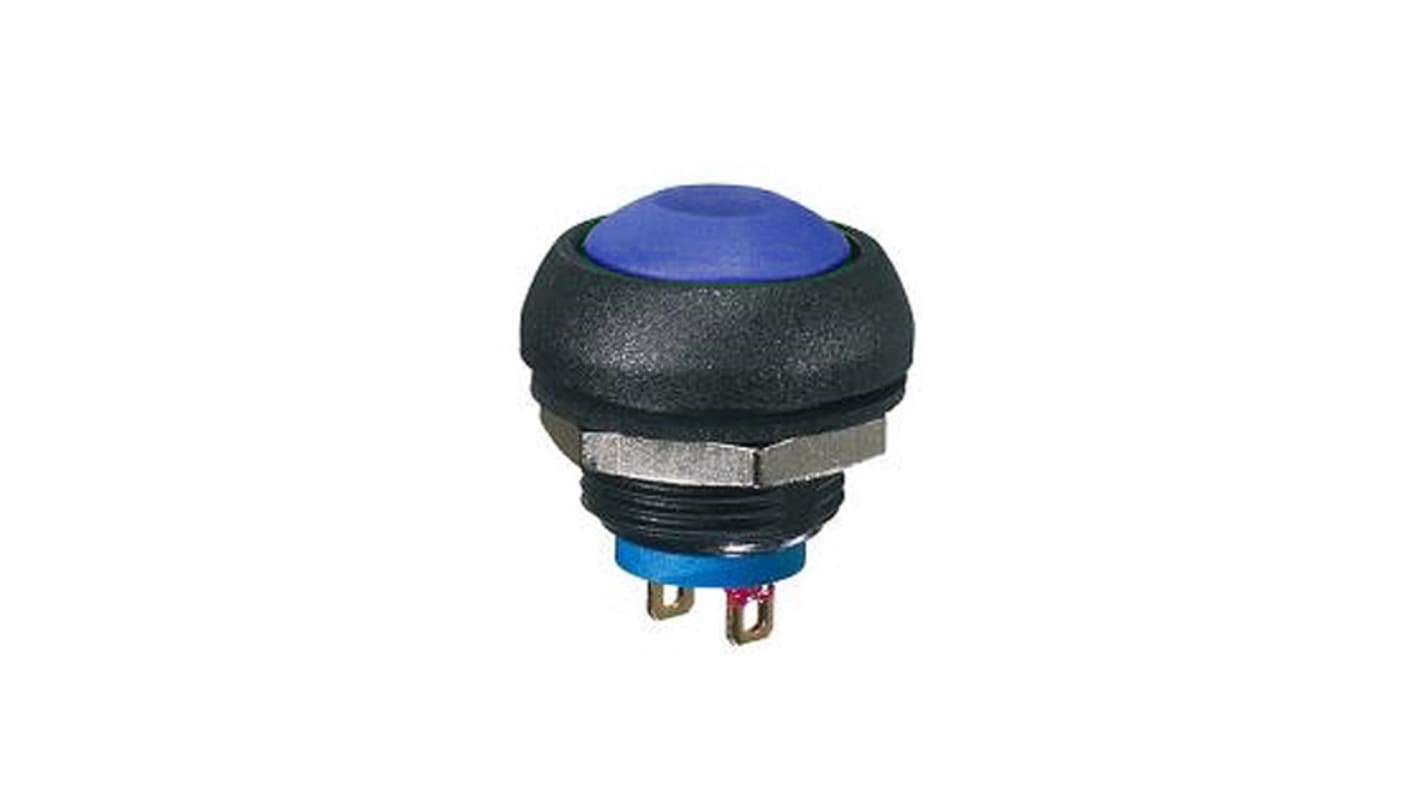

APEM Miniature Push Button Switch, Momentary, Panel Mount, 13.6mm Cutout, SPST, 32/48V dc, IP54
- RS-artikelnummer:
- 122-6271
- Tillv. art.nr:
- IBR3SADB00
- Tillverkare / varumärke:
- APEM
110 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
136,75 kr
(exkl. moms)
170,94 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 9 | 136,75 kr |
| 10 - 49 | 133,25 kr |
| 50 - 99 | 129,75 kr |
| 100 - 249 | 126,14 kr |
| 250 + | 122,97 kr |
- RS-artikelnummer:
- 122-6271
- Tillv. art.nr:
- IBR3SADB00
- Tillverkare / varumärke:
- APEM
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- FR
Produktdetaljer
IP67 sealed miniature momentary pushbuttons, series IB – ø 12 mm snap-in mounting
Apem IB series of momentary push buttons provide a reliable & robust solution to a wide variety of applications. The IB series offers solid, tactile feedback for a premium switching experience.
Shallow behind-panel depth.
Compact and light.
Plastic button and case.
Excellent tactile feedback.
Epoxy terminal seal.
Compact and light.
Plastic button and case.
Excellent tactile feedback.
Epoxy terminal seal.
Standards
IEC 512-4 - IEC-512-6
Specifikationer
Attribute | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | No |
| Panel Cut Out Diameter | 13.6mm |
| Mounting Type | Panel Mount |
| Push Button Colour | Blue |
| Contact Configuration | SPST |
| Voltage Rating | 32/48V dc |
| Push Button Style | Round |
| IP Rating | IP54 |
| Contact Current Rating | 100 mA @ 48 V dc, 400 mA @ 32 V ac |
| Contact Material | Gold Plated Silver |
| Manufacturer Part No. | IBR3SADB00 |
| Case Colour | Black |
| Contact DC Voltage Rating | 48V |
| Contact AC Voltage Rating | 32V |
| Terminal Type | Solder Lug |
