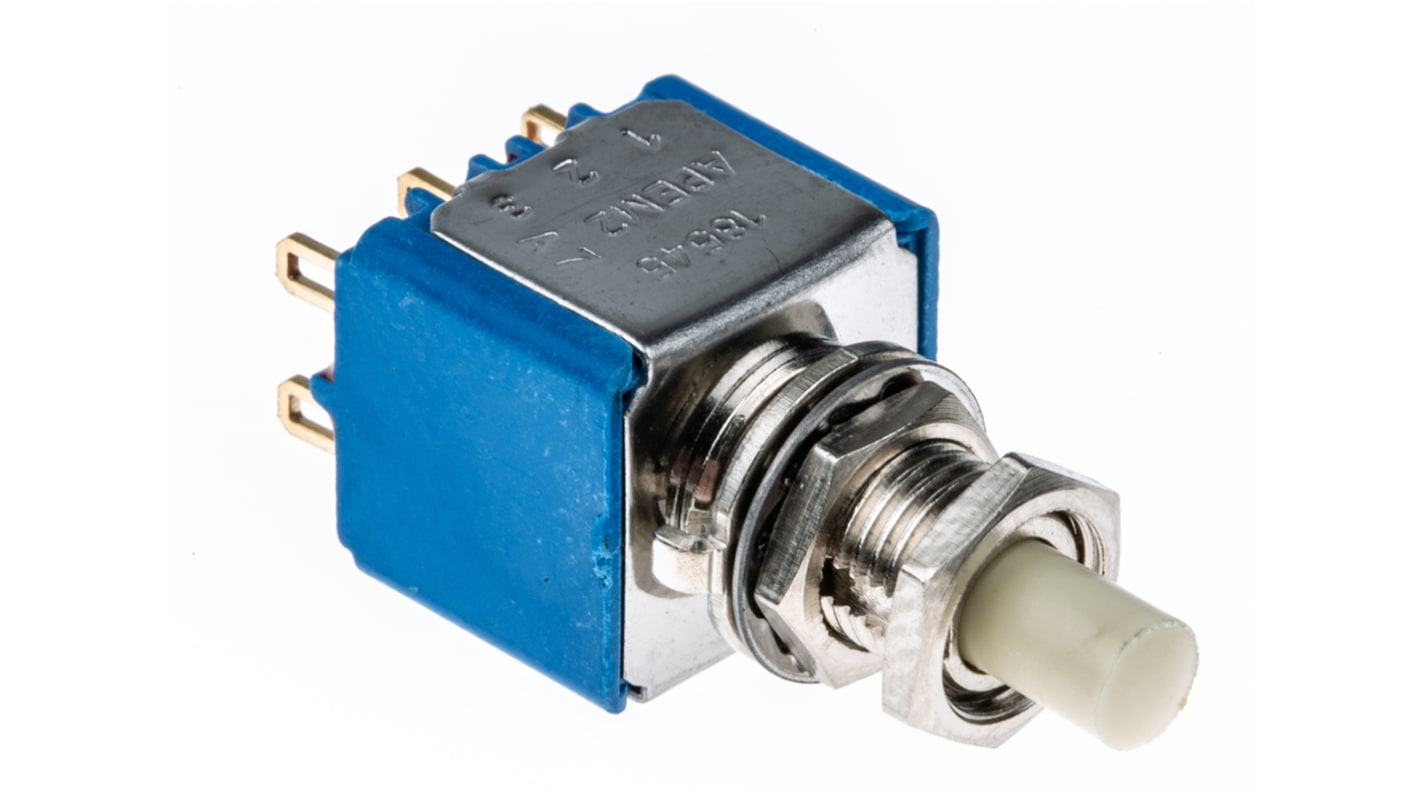

Double Pole Double Throw (DPDT) Momentary Miniature Push Button Switch, Panel Mount

  • RS-artikelnummer 320-994
  • Tillv. art.nr 18545CD
  • Tillverkare / varumärke APEM
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): FR
Produktdetaljer

Miniature Microswitch Action Switch

From Apem, this momentary action switch is available as either a Single Pole Double Throw (See Stock No: 320-988) and Double Pole Double Throw ( see Stock No: 320-994).

This 18000 Series miniature switch features gold plated copper contacts and a microswitch action that ensures high precision and reliability. It is ideal for signal switching applications.

The narrow actuator can be modified with interchangeable push-button caps.

Features and Benefits:

• Connection is via solder lug terminals
• Microswitch action
• 0.5mm total travel with 0.25mm over travel

Available in this range:

• Stock No: 320-988 is a SPDT Push-button switch
• Stock No: 320-994 is a DPDT Push-button switch
• Stock No: 693-1348 is an SP Push-button Switch with black bezel
• Stock No: 693-1345 is an SP Push-button switch with a red bezel
• Stock No: 693-1341 is a DP Push-button switch with a black bezel
• Stock No: 693-1345 is a DP Push-button switch with a red bezel
• Stock No: 103-5782 is a black Push-button cap
• Stock No: 103-5798 is a red Push-button cap

//media.rs-online.com/t_line/L320988-01.gif
//media.rs-online.com/t_line/LD320988-01.gif
//media.rs-online.com/t_line/LE320988-01.gif
Specifikationer
Attribute Value
Switch Operation Momentary
Mounting Type Panel Mount
Illuminated No
Contact Configuration Double Pole Double Throw (DPDT)
Panel Cut Out Size 13.2 x 12mm
Panel Cut Out Diameter 6.5mm
Actuator Colour Black
Voltage Rating 30V dc
Contact Current Rating 100 mA @ 30 V dc
Actuator Shape Plunger
Terminal Type Solder
Actuator Type Button
930 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
94,91 kr
(exkl. moms)
118,64 kr
(inkl. moms)
Enheter
Per unit
1 +
94,91 kr
