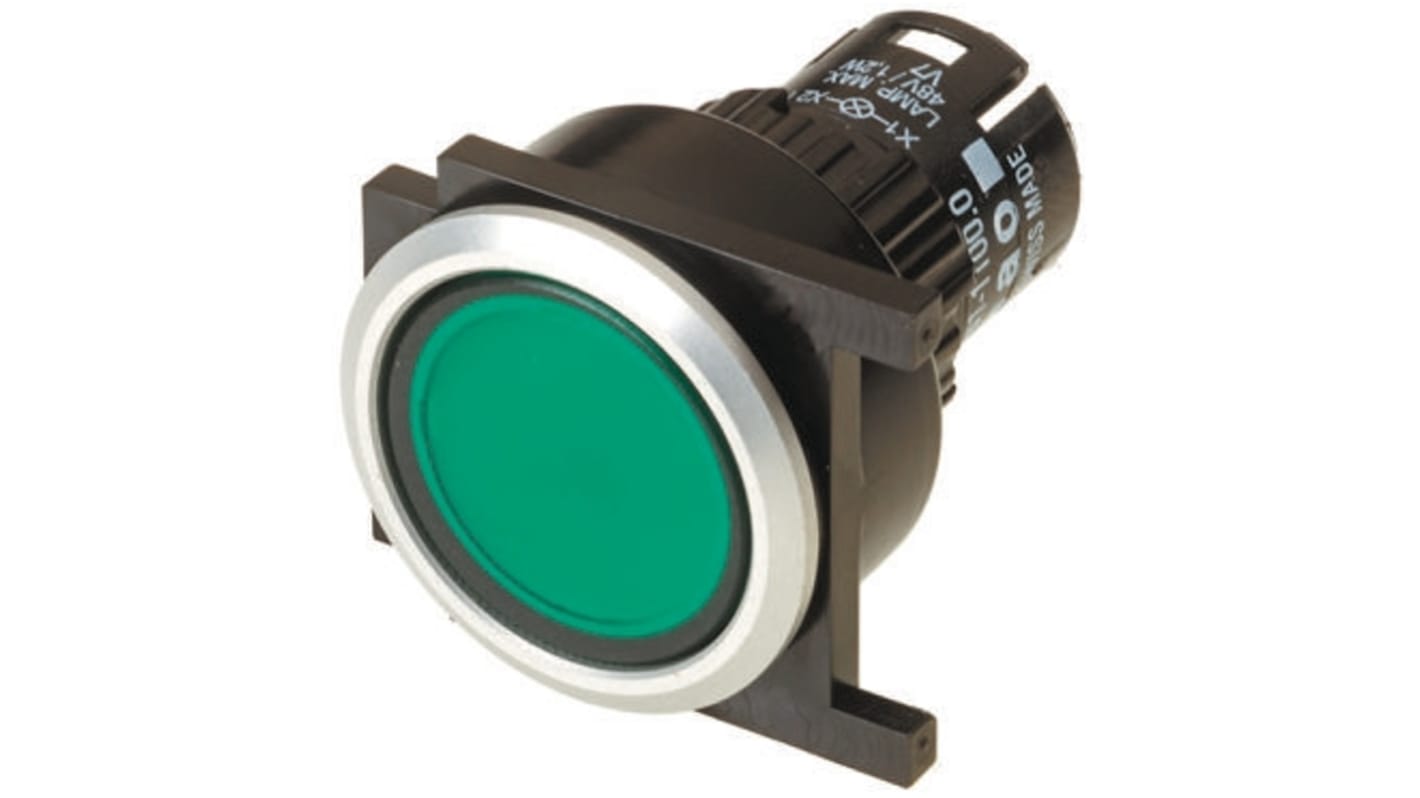

EAO Green Momentary Push Button Head, IP65
- RS-artikelnummer:
- 219-4185
- Tillv. art.nr:
- 61-1100.0, 61-9642.5 ,61-9933.0
- Tillverkare / varumärke:
- EAO
Denna bild representerar endast produktgruppen
Mängdrabatt möjlig
Antal (1 enhet)*
401,63 kr
(exkl. moms)
502,04 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 43 enhet(er) är redo att levereras
- Plus 6 enhet(er) är redo att levereras från en annan plats
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 9 | 401,63 kr |
| 10 - 49 | 386,40 kr |
| 50 - 99 | 363,10 kr |
| 100 - 249 | 331,30 kr |
| 250 + | 301,62 kr |
*vägledande pris
- RS-artikelnummer:
- 219-4185
- Tillv. art.nr:
- 61-1100.0, 61-9642.5 ,61-9933.0
- Tillverkare / varumärke:
- EAO
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | EAO | |
| Push Button Colour | Green | |
| Push Button Actuation | Momentary | |
| IP Rating | IP65 | |
| Maximum Operating Temperature | +55°C | |
| Minimum Operating Temperature | -20°C | |
| Mounting Type | Panel Mount | |
| Välj alla | ||
|---|---|---|
Brand EAO | ||
Push Button Colour Green | ||
Push Button Actuation Momentary | ||
IP Rating IP65 | ||
Maximum Operating Temperature +55°C | ||
Minimum Operating Temperature -20°C | ||
Mounting Type Panel Mount | ||
- COO (Country of Origin):
- CH
EAO Flushmount Pushbutton Switches, Series 61
The EAO Series 61 is a high quality, modular switch range that includes pushbuttons, indicators, selector switches, keylock switches and Emergency-stop. Available in raised or flush mount.
Flush mounting (2mm front-of-panel protrusion), professional grade pushbutton switches
Momentary or maintained high quality with a good tactile feel
Flush mounts into 24x24mm square, 25mm round and 24x30mm rectangular cut-outs
Switch rating 5A @ 250Vac
IP65 protection
Large legend area
Self cleaning snap action switching element
Suitable for use with T1 3/4 midget groove lamps or LED, see stock numbers 3607660 or 2829976 typically
For Contact Blocks see stock numbers 219-5447, 219-5453 or 219-5469
Optional tool kit consisting of lens remover, contact block remover and mounting nut spanner is recommended, see stock no. 219-5481
Momentary or maintained high quality with a good tactile feel
Flush mounts into 24x24mm square, 25mm round and 24x30mm rectangular cut-outs
Switch rating 5A @ 250Vac
IP65 protection
Large legend area
Self cleaning snap action switching element
Suitable for use with T1 3/4 midget groove lamps or LED, see stock numbers 3607660 or 2829976 typically
For Contact Blocks see stock numbers 219-5447, 219-5453 or 219-5469
Optional tool kit consisting of lens remover, contact block remover and mounting nut spanner is recommended, see stock no. 219-5481
Note
These switches are complete with a bezel for flush mounting. The 25mm diameter bezels are available in either plastic or aluminium. If they are to be used as raised switches, then a 16.5mm diameter cut-out can be used for all heads.
