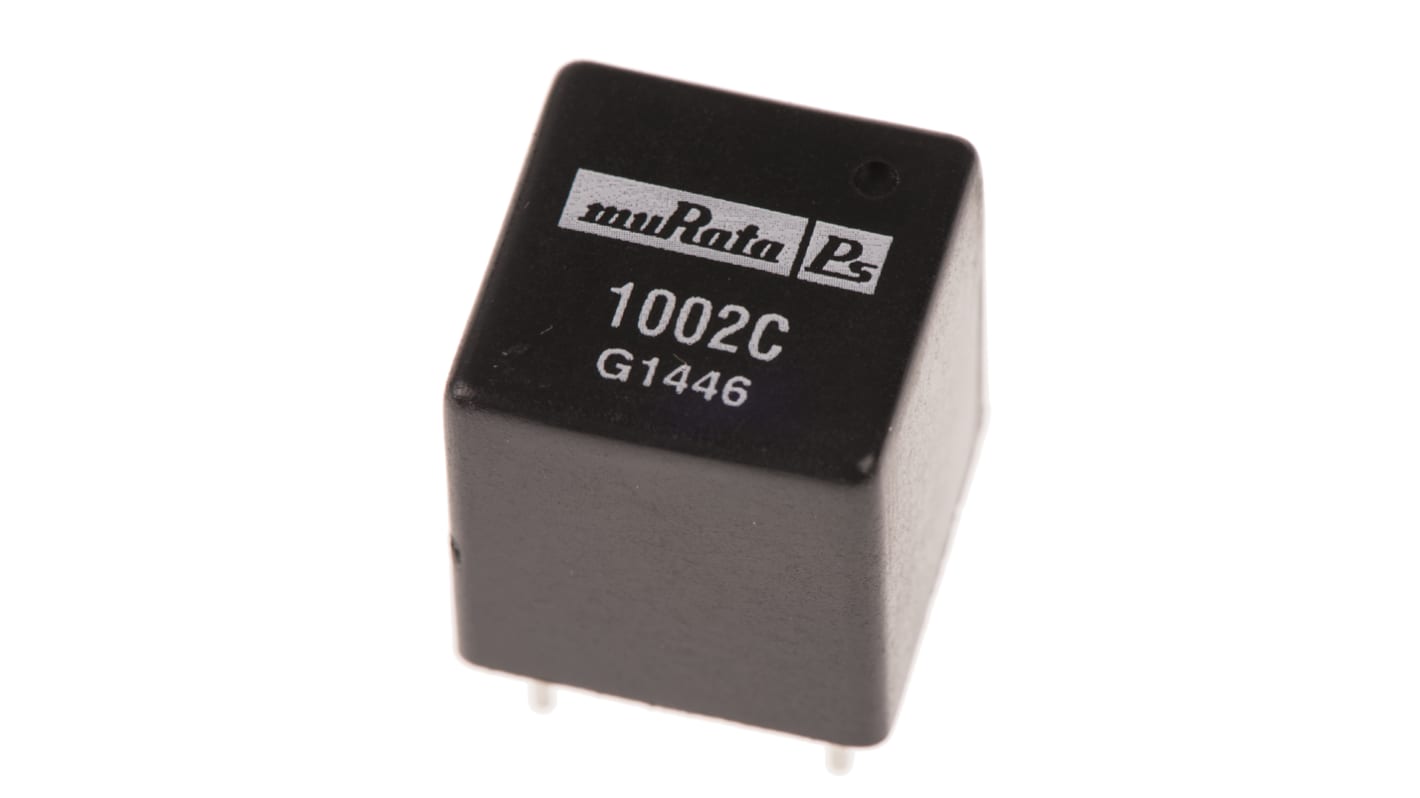

Murata Power Solutions PCB Mount Pulse Transformer 1:1:1 Turns Ratio, 3mH Prim. Inductance, 1.4Ω Prim. Resistance
- RS-artikelnummer:
- 800-4344
- Tillv. art.nr:
- 1002C
- Tillverkare / varumärke:
- Murata Power Solutions
Mängdrabatt möjlig
Antal (1 enhet)*
57,56 kr
(exkl. moms)
71,95 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 26 enhet(er) är redo att levereras
- Dessutom levereras 48 enhet(er) från den 17 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 49 | 57,56 kr |
| 50 - 99 | 54,88 kr |
| 100 - 199 | 52,19 kr |
| 200 - 499 | 49,84 kr |
| 500 + | 45,81 kr |
*vägledande pris
- RS-artikelnummer:
- 800-4344
- Tillv. art.nr:
- 1002C
- Tillverkare / varumärke:
- Murata Power Solutions
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Murata Power Solutions | |
| Primary Inductance | 3mH | |
| Primary DC Resistance | 1.4Ω | |
| Secondary DC Resistance | 1.7Ω | |
| Turns Ratio | 1:1:1 | |
| Mounting Type | PCB Mount | |
| Leakage Inductance | 9µH | |
| Dimensions | 15.06 x 15.06 x 15.75mm | |
| Depth | 15.75mm | |
| Length | 15.06mm | |
| Width | 15.06mm | |
| Minimum Temperature | 0°C | |
| Maximum Temperature | +70°C | |
| Välj alla | ||
|---|---|---|
Brand Murata Power Solutions | ||
Primary Inductance 3mH | ||
Primary DC Resistance 1.4Ω | ||
Secondary DC Resistance 1.7Ω | ||
Turns Ratio 1:1:1 | ||
Mounting Type PCB Mount | ||
Leakage Inductance 9µH | ||
Dimensions 15.06 x 15.06 x 15.75mm | ||
Depth 15.75mm | ||
Length 15.06mm | ||
Width 15.06mm | ||
Minimum Temperature 0°C | ||
Maximum Temperature +70°C | ||
- COO (Country of Origin):
- CN
Murata Pulse Transformers, 1000 Series
The 1000 series Pulse Transformers are intended for wideband and pulse operations. They are also suitable for signal isolation and use in small isolated power supplies.
The compact footprint makes them ideal for applications where space is at a premium
Isolation to 4kVrms
The compact footprint makes them ideal for applications where space is at a premium
Isolation to 4kVrms
