- RS-artikelnummer:
- 170-4980
- Tillv. art.nr:
- IT314
- Tillverkare / varumärke:
- Schaffner
Tillfälligt slut i lager – restorder för leverans 2024-09-13
Lagt till varukorgen
Pris (ex. moms) Var (i en låda med 100)
129,342 kr
(exkl. moms)
161,678 kr
(inkl. moms)
Enheter | Per unit | Per Box* |
100 + | 129,342 kr | 12 934,20 kr |
- RS-artikelnummer:
- 170-4980
- Tillv. art.nr:
- IT314
- Tillverkare / varumärke:
- Schaffner
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TH
Produktdetaljer

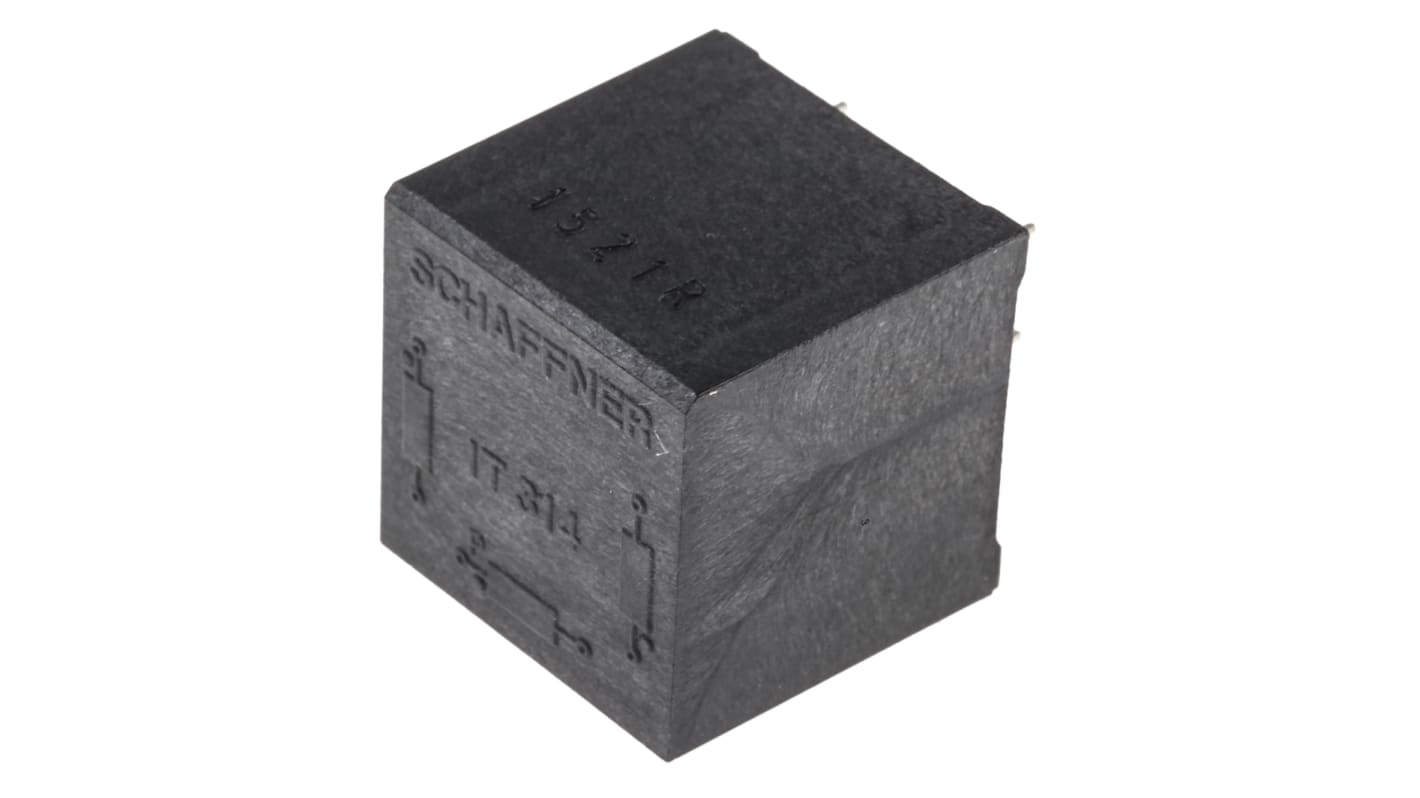

Pulse transformers IT Series
Schaffner's IT pulse transformers are designed to offer you galvanic isolation for transformer coupled gate drives. The IT series provides negligible delays and the possibility of voltage scaling. They are available with single or double secondary winding for multiple gate drives. Choosing the IT product line brings you the rapid availability of a standard gate drive transformer. A wide selection on turns ratio, ignition current and voltages are designed to offer you the desired standard product.
Galvanic separation
Voltage resistance up to 8 kV
Allows high potential difference voltage scaling
Optional grounded shields
Vacuum potting
Very low partial discharge effects
PCB through hole mounting or faston types
Voltage resistance up to 8 kV
Allows high potential difference voltage scaling
Optional grounded shields
Vacuum potting
Very low partial discharge effects
PCB through hole mounting or faston types
Specifikationer
Attribute | Value |
---|---|
Primary Inductance | 35mH |
Turns Ratio | 3:1:1 |
Mounting Type | Through Hole |
Dimensions | 25.5 x 25.5 x 25mm |
Depth | 25mm |
Length | 25.5mm |
Width | 25.5mm |
Minimum Temperature | -25°C |
Maximum Temperature | +70°C |
Primary Voltage Rating | 380V |
