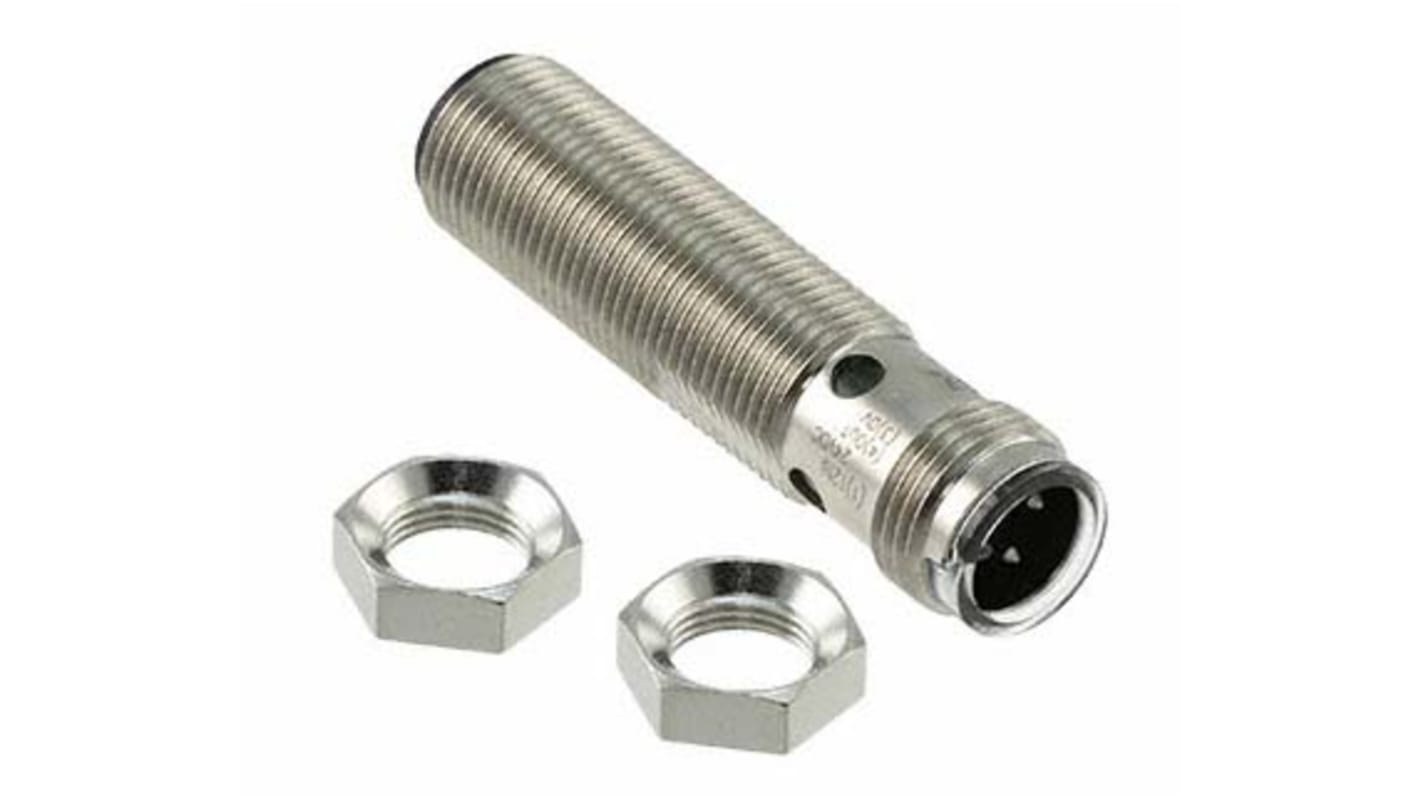

Omron Inductive Threaded Barrel Proximity Sensor, M12, 6 mm Detection, 10 → 32 V dc, 12 → 24 V dc
- RS Stock No.:
- 841-1717
- Mfr. Part No.:
- E2A3M12KS06M1B1
- Brand:
- Omron
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
Alternative
This product is not currently available. Here is our alternative recommendation.
Varje
712,56 kr
(exc. VAT)
890,70 kr
(inc. VAT)
- RS Stock No.:
- 841-1717
- Mfr. Part No.:
- E2A3M12KS06M1B1
- Brand:
- Omron
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Thread Size | M12 | |
| Sensor Technology | Inductive | |
| Body Style | Threaded Barrel | |
| Detection Range | 6 mm | |
| Supply Voltage | 10 → 32 V dc, 12 → 24 V dc | |
| Length | 34mm | |
| IP Rating | IP67 | |
| Mounting Type | Flush | |
| Housing Material | Brass Nickel Plated | |
| Maximum DC Voltage | 32V | |
| Minimum Operating Temperature | -25°C | |
| Reverse Polarity Protection | Yes | |
| Shielding | Partial | |
| Short Circuit Overload Protection | Yes | |
| Switching Current | 200 mA | |
| Maximum Switching Frequency | 350Hz | |
| Maximum Operating Temperature | +70°C | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Thread Size M12 | ||
Sensor Technology Inductive | ||
Body Style Threaded Barrel | ||
Detection Range 6 mm | ||
Supply Voltage 10 → 32 V dc, 12 → 24 V dc | ||
Length 34mm | ||
IP Rating IP67 | ||
Mounting Type Flush | ||
Housing Material Brass Nickel Plated | ||
Maximum DC Voltage 32V | ||
Minimum Operating Temperature -25°C | ||
Reverse Polarity Protection Yes | ||
Shielding Partial | ||
Short Circuit Overload Protection Yes | ||
Switching Current 200 mA | ||
Maximum Switching Frequency 350Hz | ||
Maximum Operating Temperature +70°C | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
E2A3 Long Distance Sensos
The E2A3 inductive sensor from Omron is designed to have a longer sensing distance to its standard E2A counterpart. This range featuers and optimised sensing preformance to achieve triple the sensing distance for flush mounting requirements. The additional sensing distance decreases the likelyhood of contact and mechanical damage.
Triple sensing distance
PBTP sensing face material
LED indication
PBTP sensing face material
LED indication
