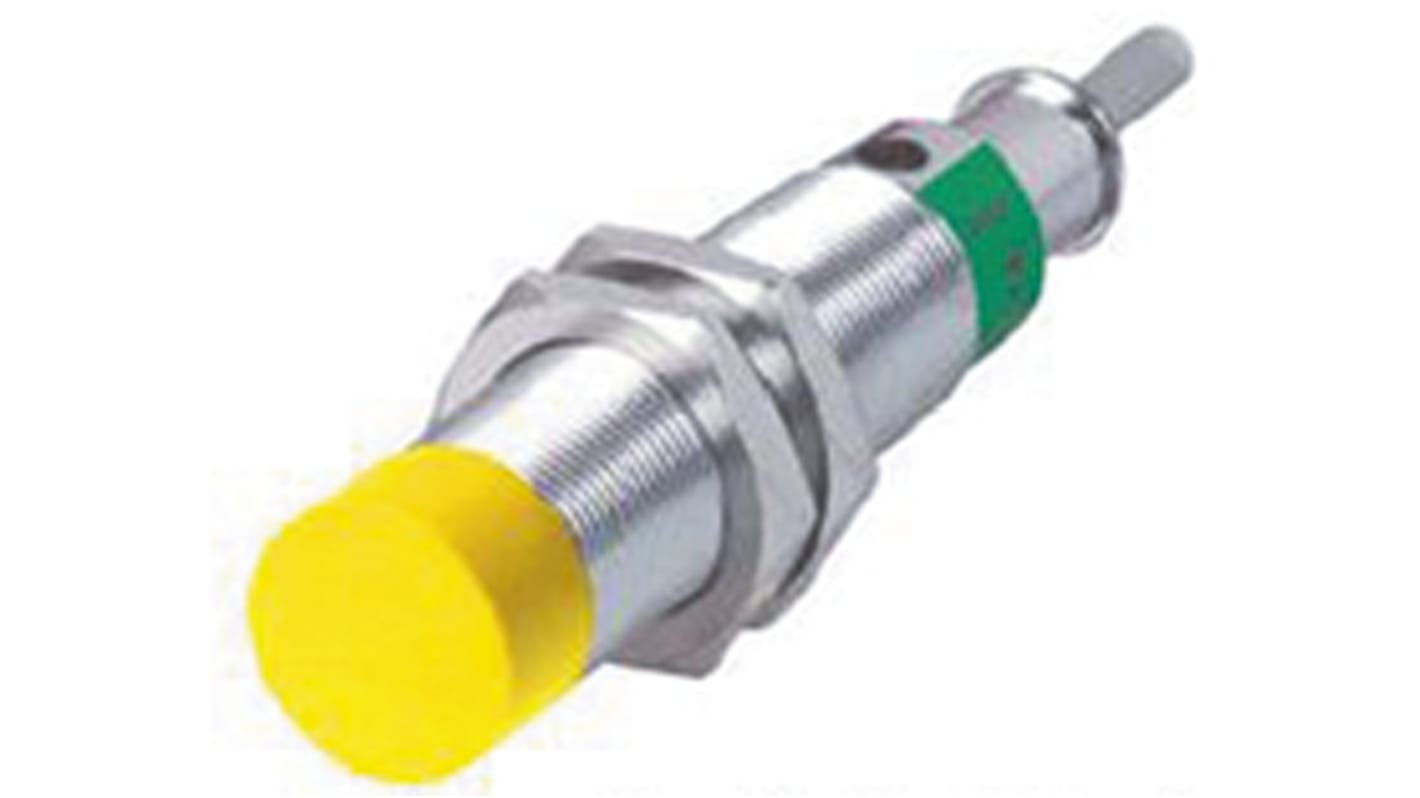

Turck Inductive Threaded Barrel Proximity Sensor, M18, 10 mm Detection, NPN NO, 4.75 → 5.25 V dc
- RS-artikelnummer:
- 837-5630
- Tillv. art.nr:
- NI10-M18-AN5X/CS11591
- Tillverkare / varumärke:
- Turck
Antal (1 enhet)*
4 554,14 kr
(exkl. moms)
5 692,68 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
Tillfälligt slut
- Leverans från den 21 april 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 + | 4 554,14 kr |
*vägledande pris
- RS-artikelnummer:
- 837-5630
- Tillv. art.nr:
- NI10-M18-AN5X/CS11591
- Tillverkare / varumärke:
- Turck
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Turck | |
| Thread Size | M18 | |
| Sensor Technology | Inductive | |
| Detection Range | 10 mm | |
| Body Style | Threaded Barrel | |
| Digital Switching Output Type | NPN | |
| Output Function | NO | |
| Connection Type | Pre-Cabled | |
| Cable Length | 2m | |
| Supply Voltage | 4.75 → 5.25 V dc | |
| Length | 54mm | |
| IP Rating | IP67 | |
| Mounting Type | Non-Flush | |
| Housing Material | Chrome Plated Brass | |
| Maximum DC Voltage | 5.25V | |
| Minimum Operating Temperature | -40°C | |
| Series | NI 10 | |
| Maximum Operating Temperature | +70°C | |
| Maximum Switching Frequency | 500Hz | |
| Switching Frequency | 500 Hz | |
| Reverse Polarity Protection | Yes | |
| Shielding | Unshielded | |
| Switching Current | 50 mA | |
| Välj alla | ||
|---|---|---|
Brand Turck | ||
Thread Size M18 | ||
Sensor Technology Inductive | ||
Detection Range 10 mm | ||
Body Style Threaded Barrel | ||
Digital Switching Output Type NPN | ||
Output Function NO | ||
Connection Type Pre-Cabled | ||
Cable Length 2m | ||
Supply Voltage 4.75 → 5.25 V dc | ||
Length 54mm | ||
IP Rating IP67 | ||
Mounting Type Non-Flush | ||
Housing Material Chrome Plated Brass | ||
Maximum DC Voltage 5.25V | ||
Minimum Operating Temperature -40°C | ||
Series NI 10 | ||
Maximum Operating Temperature +70°C | ||
Maximum Switching Frequency 500Hz | ||
Switching Frequency 500 Hz | ||
Reverse Polarity Protection Yes | ||
Shielding Unshielded | ||
Switching Current 50 mA | ||
NI 10 Series
The Professional Turck Banner NI 10 series of barrel style inductive proximity sensors.
Turck Banner Barrel Inductive Proximity Sensors
Inductive sensors are designed for contact-less and wear-free detection. They are the perfect solution for breweries, frozen food, dairies and packaging applications. Resistant to cleaning agents and disinfectants and exceed the protection classes IP68 & IP69K. These sensors are available as standard versions in chrome plated brass barrels or stainless steel housing with LCP front cap and double lip seal for heavy use or sudden changes in temperature. All inductive sensors of the new uprox+ generation operate with highest switching distances, feature an extended temperature range and are easily mounted.Turck inductive proximity sensors are manufactured with shielded coil, designated by “Bi” in the part number, and a non-shielded coil, designated by “Ni” in the part number.
