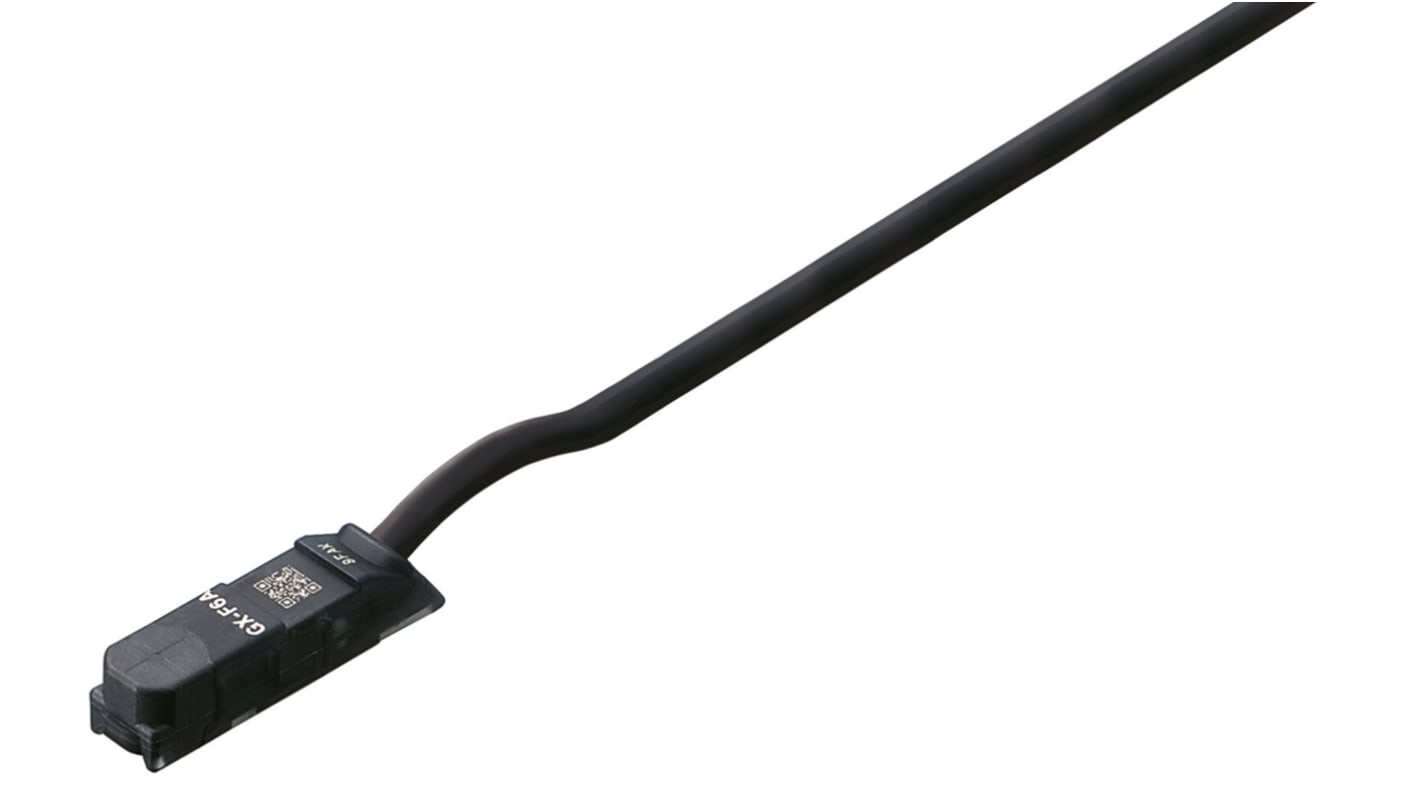

Panasonic Inductive Sensor - Block, NPN Output, 1.6 mm Detection, IP68, Cable Terminal
Tillfälligt slut i lager - restorder för leverans 2021-01-05
Lagt till varukorgen
- RS-artikelnummer:
- 808-9256
- Tillv. art.nr:
- GX-F6A
- Tillverkare / varumärke:
- Panasonic
Ej tillämpbart
- COO (Country of Origin):
- JP
| Enheter | Per unit |
| 1 + | 429,63 kr |
GX Rectangular Inductive Proximity Sensors
GX series of rectangular inductive proximity sensors which has an industry leading sensing range, ample space saving properties, front and top sensing options. The operation indicator has a greatly improved visibility. The GX series can be used in a variety of applications such as positioning processing equipment, detecting cam position and moving objects. IP68g prevents sensor damage by preventing oil and water getting inside.
| Attribute | Value |
| Sensor Technology | Inductive |
| Body Style | Block |
| Output Type | NPN |
| Detection Range | 1.6 mm |
| Terminal Type | Cable |
| Supply Voltage | 12 → 24 V dc |
| Length | 25mm |
| Width | 6mm |
| Depth | 6mm |
| Maximum DC Voltage | 24V |
| Mounting Type | Non Flush |
| IP Rating | IP68 |
| Switching Current | 15 mA |
| Housing Material | PBT |
| Reverse Polarity Protection | Yes |
| Minimum Operating Temperature | -25°C |
| Maximum Switching Frequency | 400Hz |
| Maximum Operating Temperature | +70°C |
