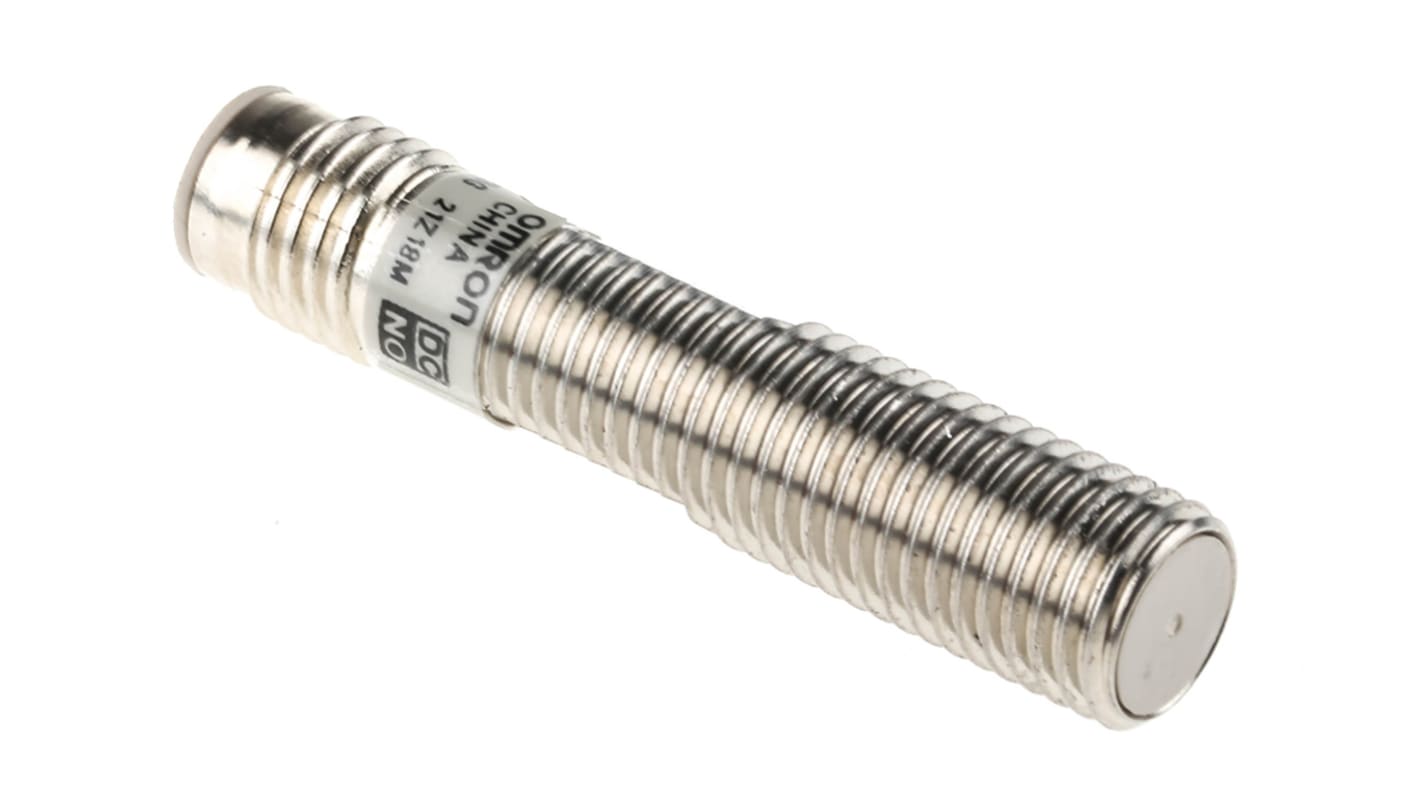

Omron Inductive Barrel-Style Proximity Sensor, M8 x 1, 2 mm Detection, NPN Output, 12 → 24 V dc, IP67
- RS-artikelnummer:
- 808-6358
- Tillv. art.nr:
- E2EX2D1M3GOMS.1
- Tillverkare / varumärke:
- Omron
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
Alternativ
Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar denna produkt istället.
Varje
732,76 kr
(exkl. moms)
915,95 kr
(inkl. moms)
- RS-artikelnummer:
- 808-6358
- Tillv. art.nr:
- E2EX2D1M3GOMS.1
- Tillverkare / varumärke:
- Omron
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Omron | |
| Sensor Technology | Inductive | |
| Thread Size | M8 x 1 | |
| Body Style | Barrel | |
| Output Type | NPN | |
| Detection Range | 2 mm | |
| Terminal Type | 3-Pin M8 Connector | |
| IP Rating | IP67 | |
| Supply Voltage | 12 → 24 V dc | |
| Length | 39mm | |
| Maximum DC Voltage | 30V | |
| Mounting Type | Flush | |
| Switching Current | 100 mA | |
| Housing Material | Stainless Steel | |
| Maximum Operating Temperature | +70°C | |
| Maximum Switching Frequency | 1.5kHz | |
| Shielding | Shielded | |
| Minimum Operating Temperature | -25°C | |
| Short Circuit Overload Protection | Yes | |
| Välj alla | ||
|---|---|---|
Brand Omron | ||
Sensor Technology Inductive | ||
Thread Size M8 x 1 | ||
Body Style Barrel | ||
Output Type NPN | ||
Detection Range 2 mm | ||
Terminal Type 3-Pin M8 Connector | ||
IP Rating IP67 | ||
Supply Voltage 12 → 24 V dc | ||
Length 39mm | ||
Maximum DC Voltage 30V | ||
Mounting Type Flush | ||
Switching Current 100 mA | ||
Housing Material Stainless Steel | ||
Maximum Operating Temperature +70°C | ||
Maximum Switching Frequency 1.5kHz | ||
Shielding Shielded | ||
Minimum Operating Temperature -25°C | ||
Short Circuit Overload Protection Yes | ||
E2EX Shielded DC 2-wire Sensors
The E2EX series of sensors are standard proximity sensors for detecting ferrous metals.
Features and benefits
PBT sensing face material
LED indication
2 wire DC
Shielded
No self-diagnosis output
LED indication
2 wire DC
Shielded
No self-diagnosis output
