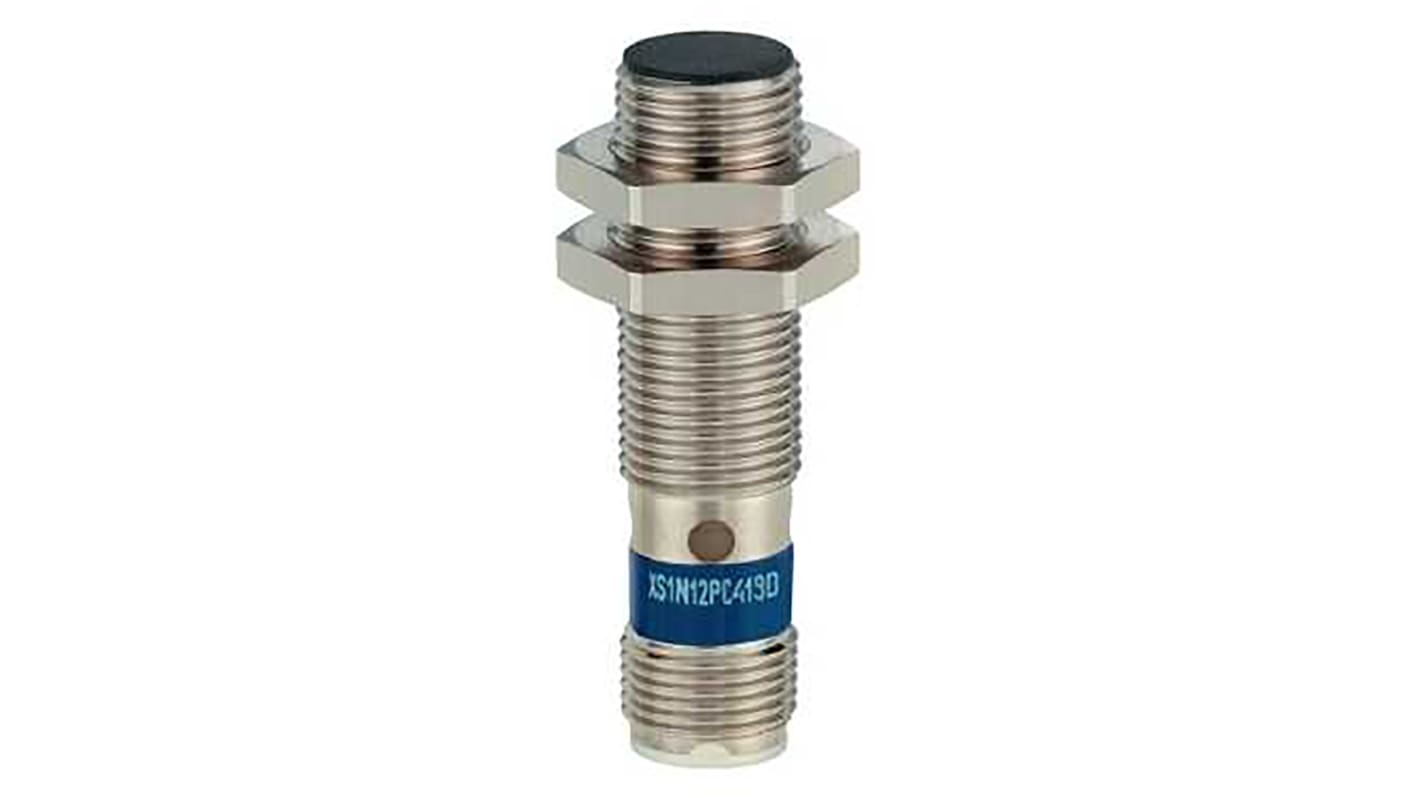

Telemecanique Sensors Inductive Barrel-Style Proximity Sensor, M12 x 1, 4 mm Detection, PNP Output, 12 → 24 V
- RS-artikelnummer:
- 123-8630
- Tillv. art.nr:
- XS1N12PC419D
- Tillverkare / varumärke:
- Telemecanique Sensors
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
Alternativ
Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar denna produkt istället.
Varje
797,50 kr
(exkl. moms)
996,88 kr
(inkl. moms)
- RS-artikelnummer:
- 123-8630
- Tillv. art.nr:
- XS1N12PC419D
- Tillverkare / varumärke:
- Telemecanique Sensors
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Sensor Technology | Inductive | |
| Thread Size | M12 x 1 | |
| Body Style | Barrel | |
| Output Type | PNP | |
| Detection Range | 4 mm | |
| Terminal Type | M12 - 4 Pin | |
| IP Rating | IP65, IP67, IP69K | |
| Supply Voltage | 12 → 24 V dc | |
| Length | 49.95mm | |
| Maximum DC Voltage | 24V | |
| Mounting Type | Flush Mount | |
| Switching Current | 200 mA | |
| Maximum Switching Frequency | 5kHz | |
| Shielding | Unshielded | |
| Housing Material | Brass | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -25°C | |
| Standards Met | CSA, E2, IEC 62061, TUV, UL | |
| Reverse Polarity Protection | Yes | |
| Short Circuit Overload Protection | Yes | |
| Välj alla | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Sensor Technology Inductive | ||
Thread Size M12 x 1 | ||
Body Style Barrel | ||
Output Type PNP | ||
Detection Range 4 mm | ||
Terminal Type M12 - 4 Pin | ||
IP Rating IP65, IP67, IP69K | ||
Supply Voltage 12 → 24 V dc | ||
Length 49.95mm | ||
Maximum DC Voltage 24V | ||
Mounting Type Flush Mount | ||
Switching Current 200 mA | ||
Maximum Switching Frequency 5kHz | ||
Shielding Unshielded | ||
Housing Material Brass | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -25°C | ||
Standards Met CSA, E2, IEC 62061, TUV, UL | ||
Reverse Polarity Protection Yes | ||
Short Circuit Overload Protection Yes | ||
- COO (Country of Origin):
- FR
Telemecanique Inductive Proximity Sensors XS.
Telemecanique Inductive Proximity Sensors OsiSense XS series allow you to detect all types of objects in applications providing high detection performance for metal objects. This inductive sensor range with industry recognised high performing technology provide non-contact detection of material up to 20 mm. Inductive proximity sensors are available in flush and non-flush models (shielded and non-shielded).
This range of inductive proximity sensors are purely for detecting any metal objects up to 60 mm and include an oscillator with windings (an alternating magnetic field is generated in front) making up the sensing phase.
Styles Available.
- Flush and Non-Flush (shielded and non-shielded).
- Short and long body.
- PNP and NPN versions (compatible with PLCs and controllers).
- 2 Wire DC, AC or AC/DC versions (available to be installed as a limit switch).
How do they work and where can I use them?
Inductive proximity sensors contain a coil and an oscillator, these create an electromagnetic field close to the sensing surface. When metal enters this field, a change occurs in the oscillating amplitude. This, in turn, changes the sensor output, showing you and equipment that metal has been sensed. Inductive proximity sensors are suitable for use most industries. Inductive sensors are unaffected by oil, dirt or surface finish and can be used in high vibration and high shock areas.
Applications.
- Railway, Mobile equipment, Lifts and escalators, Hoisting.
- Material handling, conveying, logistics.
- Material working, machine tools, Packaging.
- Food and beverage, Pharmaceutical, Robotics.
