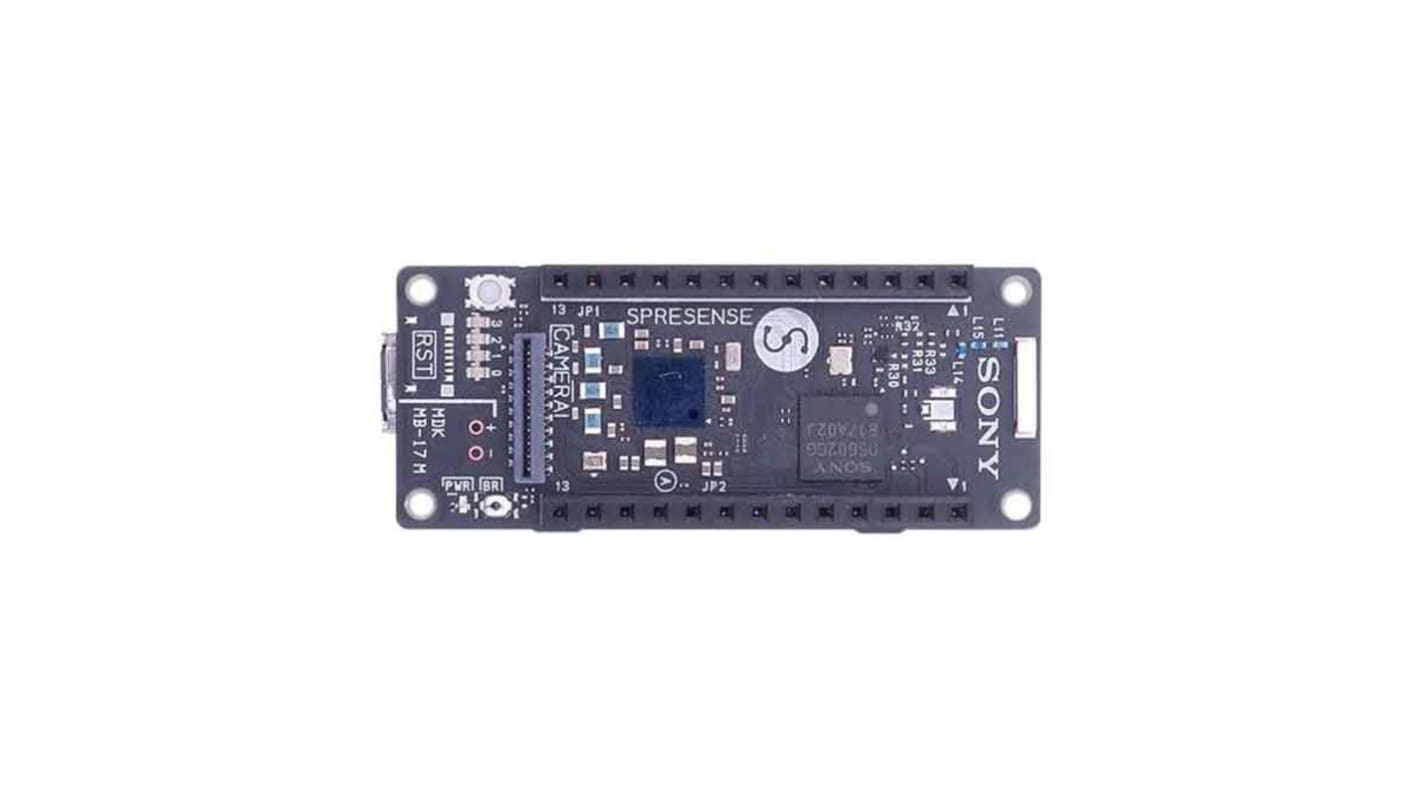

Sony SPRESENSE Main CPU Computer Board CXD5602PWBMAIN1E

  • RS-artikelnummer 178-3376
  • Tillv. art.nr CXD5602PWBMAIN1E
  • Tillverkare / varumärke Sony
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): JP
Produktdetaljer

SPRESENSE™ is a low-power board computer for the IoT that is equipped with a GPS receiver and supports High-Resolution Audio codecs. The board allows for IoT versatility and can be developed for a vast range of uses, such as a drone utilizing the GPS and high-performance processor, a smart speaker utilizing High-Resolution Audio recording and playback as well as the built-in full-digital amplifier, or a low-power time-lapse camera utilizing the camera interface. SPRESENSE™ will make the IoT smarter and more efficient.

High-precision Positioning Features
Ultra-low power consumption
Multiple GNSS systems supported:
GPS, GLONASS, SBAS, Galileo, and Beidu
Advanced High-Resolution Audio features
192 kHz/24 bit High-Resolution Audio codec
192 kHz A/D converter
8 channel microphone inputs (for digital microphones)
Full digital amplifier with BTL stereo output
Extensive computing power
Hexa-core ARM® Cortex®-M4F

Specifikationer
Attribute Value
Kit Name SPRESENSE Main
Kit Classification Evaluation Board
Processor Part Number CXD5602PWBMAIN1
Processor Family Name Smart-Sensing Processor-Equipped Board
15 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
527,34 kr
(exkl. moms)
659,18 kr
(inkl. moms)
Enheter
Per unit
1 - 4
527,34 kr
5 - 9
481,50 kr
10 +
469,41 kr
