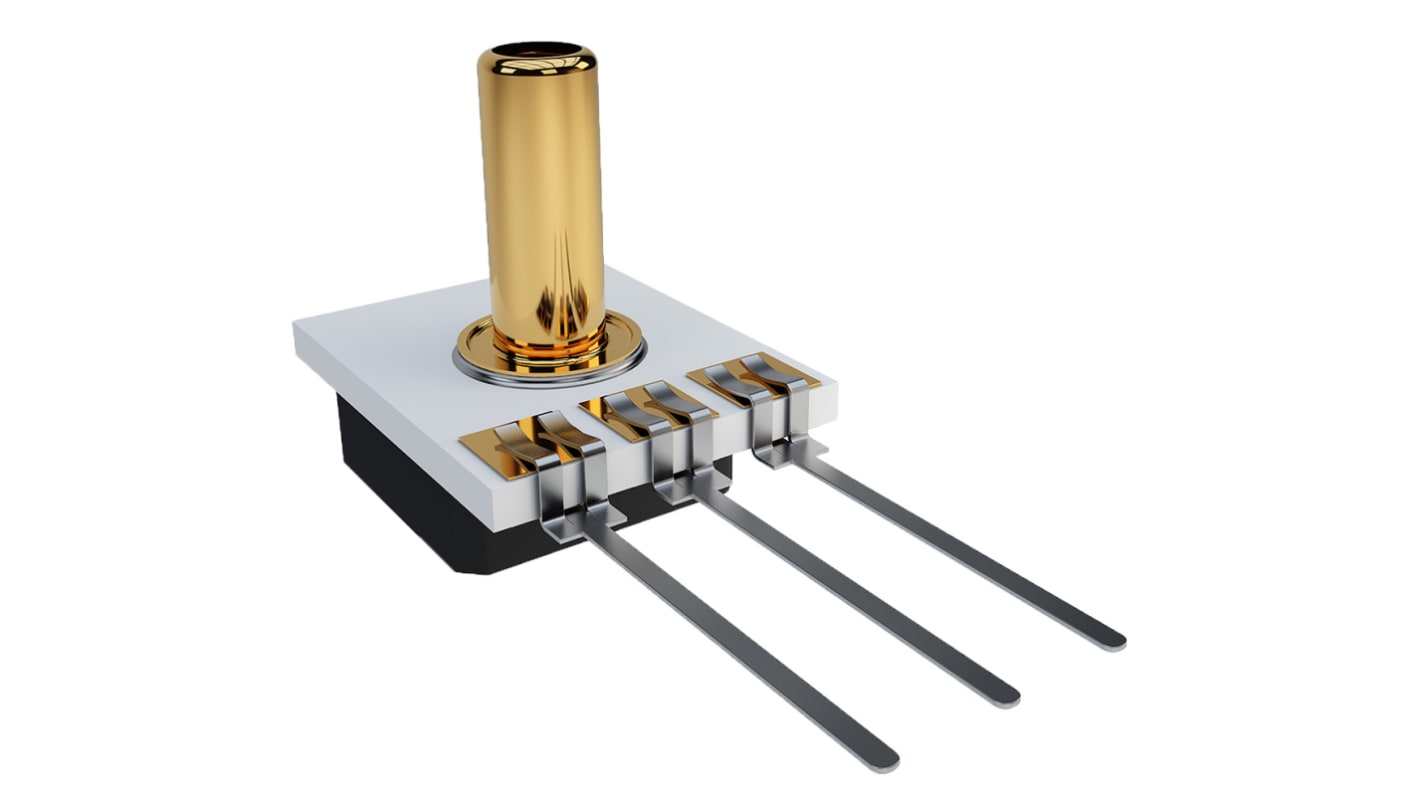

Bourns Absolute Pressure Sensor, 100psi Operating Max, 3-Pin
- RS-artikelnummer:
- 187-4741
- Tillv. art.nr:
- BPS130-HA100P-1SG
- Tillverkare / varumärke:
- Bourns
Tillfälligt slut i lager – restorder för leverans 2024-10-17
Lagt till varukorgen
Pris (ex. moms) Varje
437,28 kr
(exkl. moms)
546,60 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 437,28 kr |
| 5 - 9 | 400,90 kr |
| 10 - 24 | 381,16 kr |
| 25 + | 371,63 kr |
- RS-artikelnummer:
- 187-4741
- Tillv. art.nr:
- BPS130-HA100P-1SG
- Tillverkare / varumärke:
- Bourns
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- US
Produktdetaljer
BPS pressure sensors are based on innovative MEMS technology which provides extremely accurate condition readings in a miniature package size. The sensing element is comprised of embedded piezoresistive elements bonded to a chemically etched silicon diaphragm.
Compensated output
Direct-media monitoring
Gauge and absolute types
Isolated on board electronics
Gold-plated Kovar™ port option
Applications
Industrial:
Refrigerant systems
Water level & pressure monitoring
Medical Devices(low/medium risk):
Diagnostic/analysis equipment
Heavy Equipment:
Oil & fuel systems
Exhaust gas pressure sensing
Direct-media monitoring
Gauge and absolute types
Isolated on board electronics
Gold-plated Kovar™ port option
Applications
Industrial:
Refrigerant systems
Water level & pressure monitoring
Medical Devices(low/medium risk):
Diagnostic/analysis equipment
Heavy Equipment:
Oil & fuel systems
Exhaust gas pressure sensing
Specifikationer
Attribute | Value |
|---|---|
| Sensor Type | Absolute Pressure Sensors |
| Pin Count | 3 |
| Dimensions | 12.8 x 10.3 x 12.8mm |
| Maximum Operating Pressure | 100psi |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
