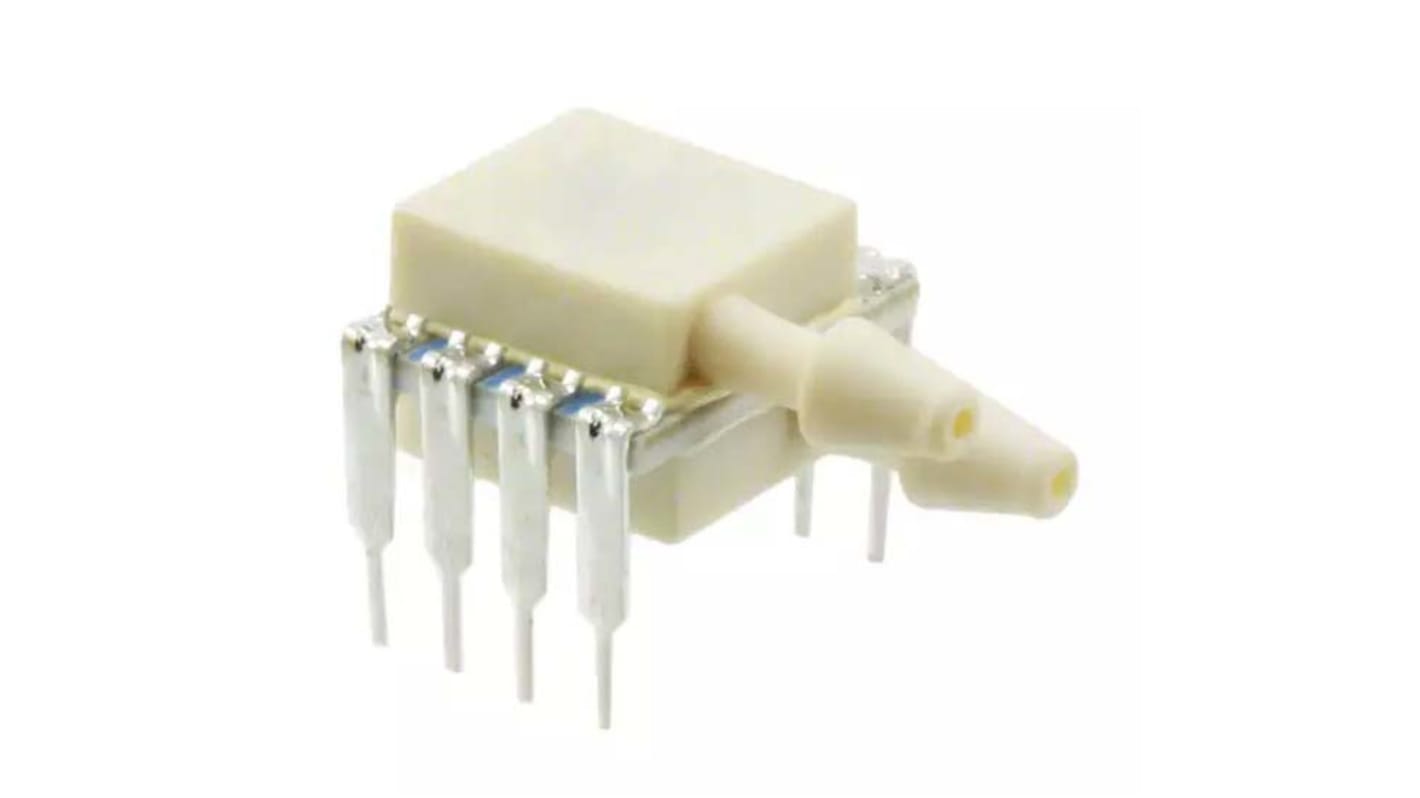

TE Connectivity Piezoresistive Pressure Sensor, 30psi Operating Max, PCB Mount, 8-Pin, 300psi Overload Max, Dual

Se alla Pressure Sensor ICs
För närvarande inte tillgänglig
Vi vet inte om den här artikeln kommer tillbaka i lager, RS har för avsikt att ta bort den från vårt utbud snart.
RS-artikelnummer:
146-8229
Tillv. art.nr:
4525-DS5A001DP
Tillverkare / varumärke:
TE Connectivity
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

TE Connectivity

Sensor Type

Differential Pressure Sensors

Maximum Overload Pressure

300psi

Mounting Type

PCB Mount

Package Type

Dual Sideport

Pin Count

8

Dimensions

17.4 x 12.4 x 7.2mm

Maximum Operating Pressure

30psi

Maximum Operating Supply Voltage

5 V

Maximum Operating Temperature

+105 °C

Minimum Operating Temperature

-25 °C

COO (Country of Origin):
CN
The MS4525 is a small, ceramic based, PCB mounted pressure transducer from Measurement Specialties. The transducer is built using the latest CMOS sensor conditioning circuitry to create a low cost, high performance transducer designed to meet the strictest requirements. The MS4525 is fully calibrated and temperature compensated with a total error band (TEB) of less than 1.0% over the compensated range. The sensor operates from single supply of either 3.3 or 5.0VDC and requires a single external component for proper operation.

PCB Mounted Pressure Transducers
Amplified Ratiometric Analog Output
Differential, Gage, Absolute, Compound, & Vacuum
Temperature Compensated
3.3 or 5.0 VDC Supply Voltage
PSI Pressure Ranges
PCB Mountable
High Level Analog Output
Barbed Pressure Ports
