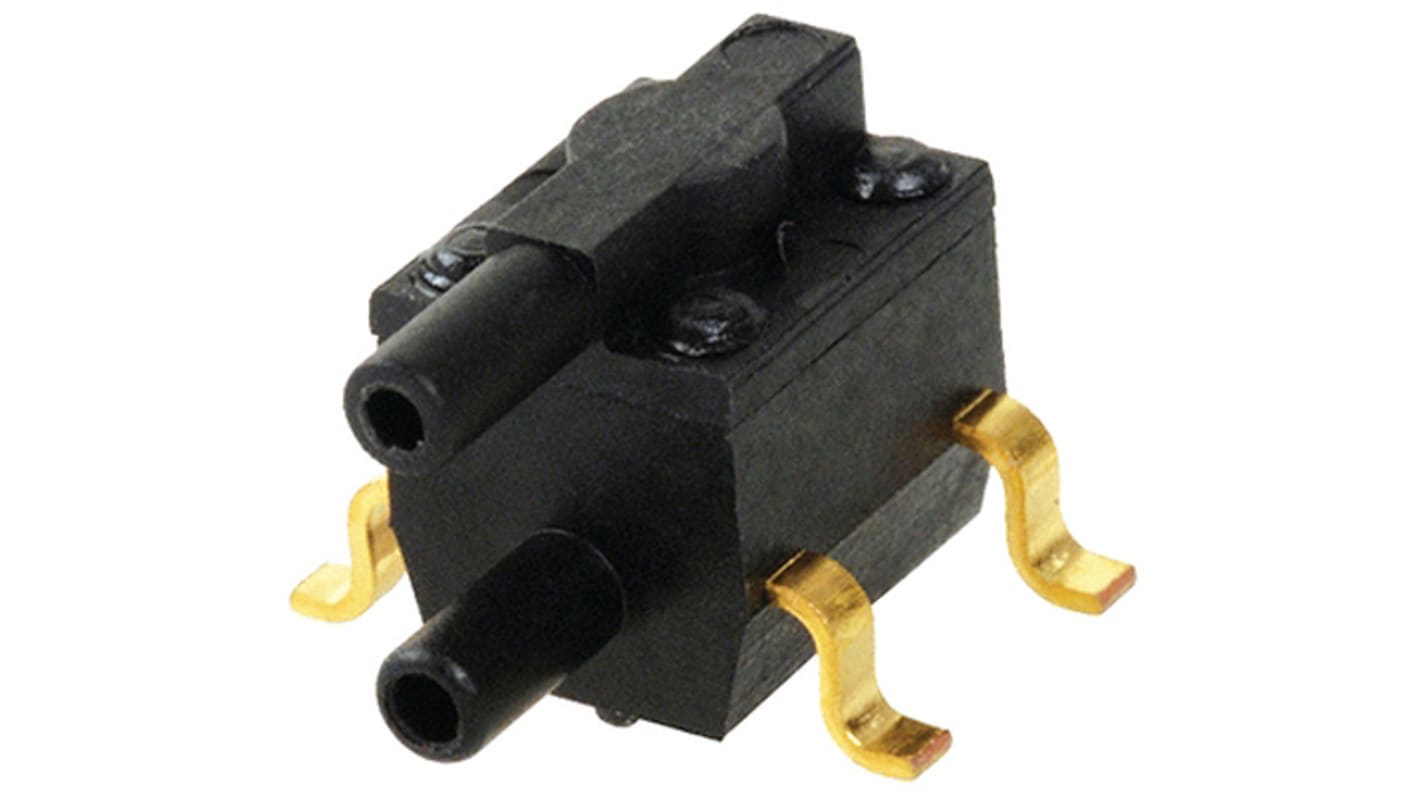

    Honeywell Low Pressure Sensor, 1psi Operating Max, Surface Mount, 4-Pin, 20psi Overload Max, SMT

    RS-artikelnummer:
    121-8180
    Tillv. art.nr:
    24PC01SMT
    Tillverkare / varumärke:
    Honeywell
    Honeywell
    Se alla Pressure Sensor ICs
    182 I lager för avsändande samma dag
    Add to Basket
    Enheter

    Lagt till varukorgen

    Pris (ex. moms) Each

    668,31 kr

    (exkl. moms)

    835,39 kr

    (inkl. moms)

    EnheterPer unit
    1 - 4668,31 kr
    5 - 9615,53 kr
    10 - 19600,70 kr
    20 +565,30 kr
    RS-artikelnummer:
    121-8180
    Tillv. art.nr:
    24PC01SMT
    Tillverkare / varumärke:
    Honeywell
    COO (Country of Origin):
    CN

    Lagstiftning och ursprungsland

    COO (Country of Origin):
    CN

    Produktdetaljer

    Honeywell 24PC/26PC Series Low Pressure Sensors


    These miniature Surface Mount Technology (SMT) Low Pressure Sensors are small, cost effective devices intended for use with wet/wet differential sensing. Based on the long established reliability and accuracy of the single in-line package, the SMT version’s smaller configuration reduces the footprint area on the printed circuit board thereby reducing overall PCB size and cost. The sensor is capable of being board-mounted with other common SMT devices, helping to eliminate secondary board mounting operations and improving manufacturing productivity.

    The 24PC/26PC sensors feature proven sensing technology that uses a specialized piezo-resistive micro-machined sensing element to offer high performance, reliability, and accuracy. Both sensor series are unamplified but the 26PC series are temperature compensated. The sensors can be used with a wide variety of wet and dry media that are compatible with polyphthalamide (PPA) plastics and media seals and they are designed to measure pressures from ±1 to ±15 psi over an operating temperature range of -40 to 85 ºC.


    • Compact SMT mounting package
    • Wet/Wet capability (i.e. liquids on both ports)
    • 24PC Series: Uncompensated/Unamplified
    • 26PC Series: Compensated/Unamplified
    • RoHS compliant
    • Designed and manufactured according to ISO 9001 standards



    Pressure Sensors, Honeywell


    Specifikationer

    AttributeValue
    Sensor TypeDifferential Pressure Sensors
    Maximum Overload Pressure20psi
    Mounting TypeSurface Mount
    Package TypeSMT
    Pin Count4
    Dimensions7.1 x 6.1 x 7.7mm
    Maximum Operating Pressure1psi
    Maximum Operating Supply Voltage12 V
    Maximum Operating Temperature+85 °C
    Minimum Operating Pressure0psi
    Minimum Operating Temperature-40 °C
