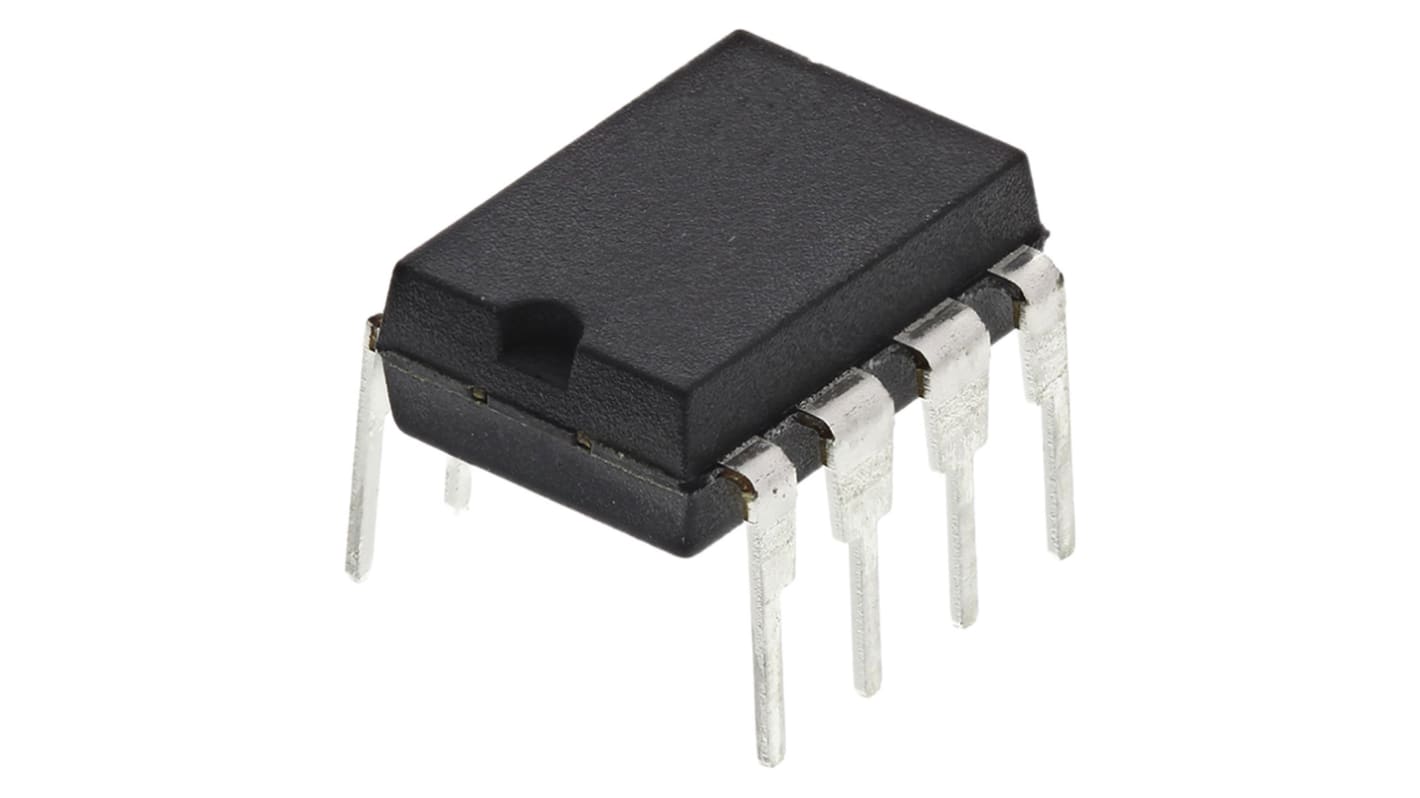

onsemi FSL156MRBN, PWM Controller Power Switch IC 8-Pin, PDIP
- RS-artikelnummer:
- 862-9129
- Tillv. art.nr:
- FSL156MRBN
- Tillverkare / varumärke:
- onsemi
För närvarande inte tillgänglig
Vi vet inte om den här artikeln kommer tillbaka i lager, RS har för avsikt att ta bort den från vårt utbud snart.
- RS-artikelnummer:
- 862-9129
- Tillv. art.nr:
- FSL156MRBN
- Tillverkare / varumärke:
- onsemi
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | onsemi | |
| Power Switch Type | PWM Controller | |
| Switch On Resistance | 2.2Ω | |
| Maximum Operating Current | 1.6A | |
| Number of Outputs | 1 | |
| Power Rating | 26W | |
| Mounting Type | Through Hole | |
| Package Type | PDIP | |
| Pin Count | 8 | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Temperature | -40 °C | |
| Dimensions | 9.83 x 6.67 x 3.68mm | |
| Välj alla | ||
|---|---|---|
Brand onsemi | ||
Power Switch Type PWM Controller | ||
Switch On Resistance 2.2Ω | ||
Maximum Operating Current 1.6A | ||
Number of Outputs 1 | ||
Power Rating 26W | ||
Mounting Type Through Hole | ||
Package Type PDIP | ||
Pin Count 8 | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
Dimensions 9.83 x 6.67 x 3.68mm | ||
Flyback & Forward PWM Controllers, Fairchild Semiconductor
Off-Line & Isolated DC-DC Controllers, Fairchild Semiconductor
The Flyback controllers, Line Level Control (LLC) controllers, and Primary-Side Regulation controllers offer Crucial energy savings to address the needs of Switch Mode Power Supply (SMPS) designs.
All controllers come with integrated soft-start, and protection features from over-voltage, open-feedback, overload, output-short, overcurrent, voltage brownout, and Undervoltage-Lockout.
All controllers come with integrated soft-start, and protection features from over-voltage, open-feedback, overload, output-short, overcurrent, voltage brownout, and Undervoltage-Lockout.
