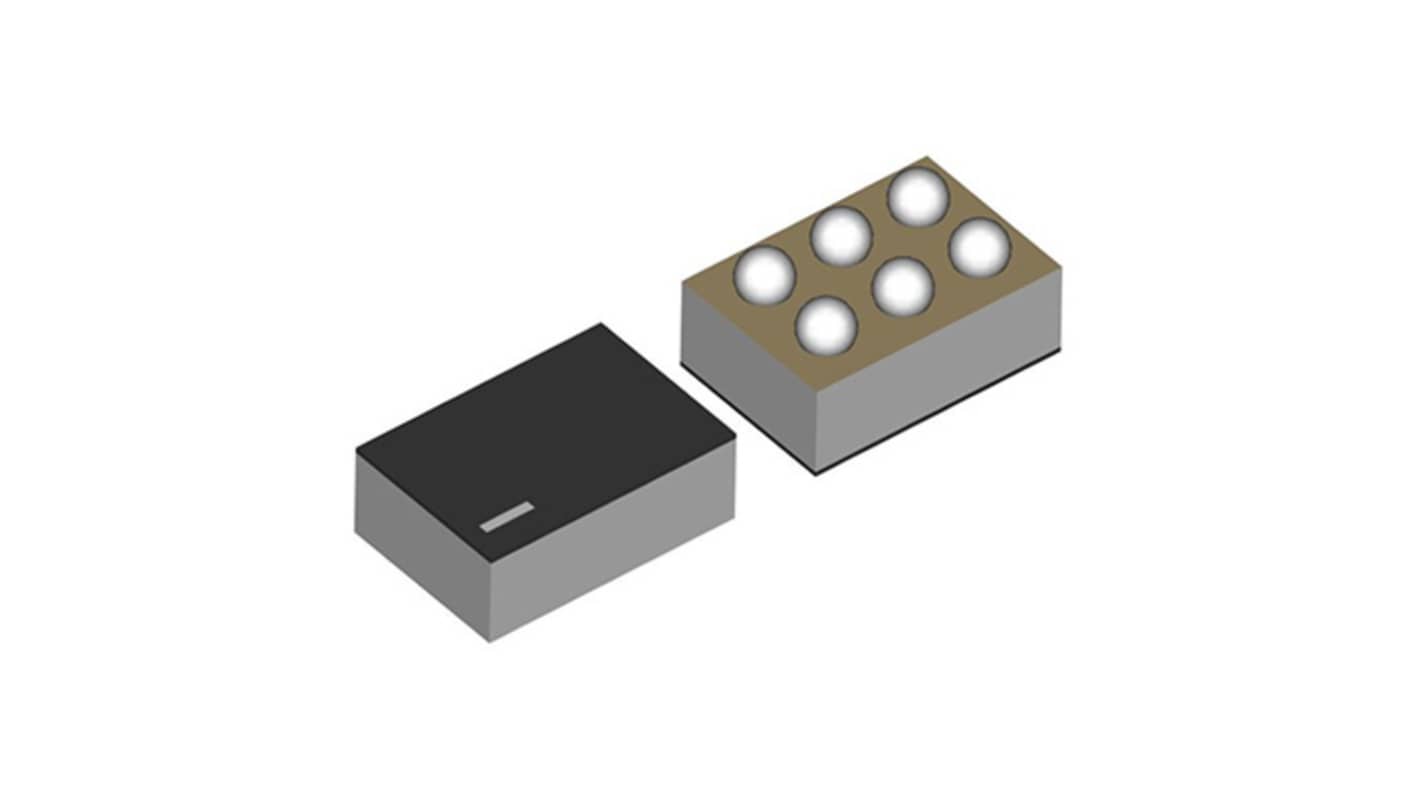

Nisshinbo Micro Devices RP509Z002D-E2-F, 1Low Side/High Side, High Side Power Switch IC 6-Pin, WLCSP-6-P6

Se alla Power Switch ICs
Mängdrabatt möjlig

Antal (1 längd med 10 enheter)*

52,53 kr

(exkl. moms)

65,66 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 5 000 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per Längd*
10 - 905,253 kr52,53 kr
100 - 2404,984 kr49,84 kr
250 - 4904,637 kr46,37 kr
500 - 9904,256 kr42,56 kr
1000 +4,088 kr40,88 kr

*vägledande pris

Förpackningsalternativ:
RS-artikelnummer:
276-961
Tillv. art.nr:
RP509Z002D-E2-F
Tillverkare / varumärke:
Nisshinbo Micro Devices
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Nisshinbo Micro Devices

Power Switch Type

High Side

Power Switch Topology

Low Side/High Side

Number of Channels

1

Maximum Operating Supply Voltage

5.5 V

Maximum Operating Current

0.5A

Number of Outputs

1

Package Type

WLCSP-6-P6

Pin Count

6

COO (Country of Origin):
JP
The Nisshinbo Micro Devices DC/DC Converter is employing synchronous rectification for improving the efficiency of rectification by replacing diodes with built in switching transistors. It uses synchronous rectification which not only increases circuit performance but also allows a design to reduce parts count. Output voltage controlling method is selectable between a PWM/VFM auto switching control type and a forced PWM control type, which further reduces noise than a normal PWM control under a light load, and these types can be set by the MODE pin.

Consists of a reference voltage unit
Consist of an error amplifier and a switching control circuit
Provides a soft start circuit and an under voltage lockout circuit
Provides a thermal shutdown circuit
