Microchip PICtail Plus Buck Converter for DM300027, Explorer 16

Se kategorien

Antal (1 enhet)*

1 441,66 kr

(exkl. moms)

1 802,08 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Lagerinformation är för närvarande otillgänglig
Enheter
Per enhet
1 +1 441,66 kr

*vägledande pris

RS-artikelnummer:
672-2728
Tillv. art.nr:
AC164133
Tillverkare / varumärke:
Microchip
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Microchip

Power Management Function

Buck Converter

For Use With

DM300027, Explorer 16

Kit Classification

Evaluation Board

Kit Name

PICtail Plus

COO (Country of Origin):
US

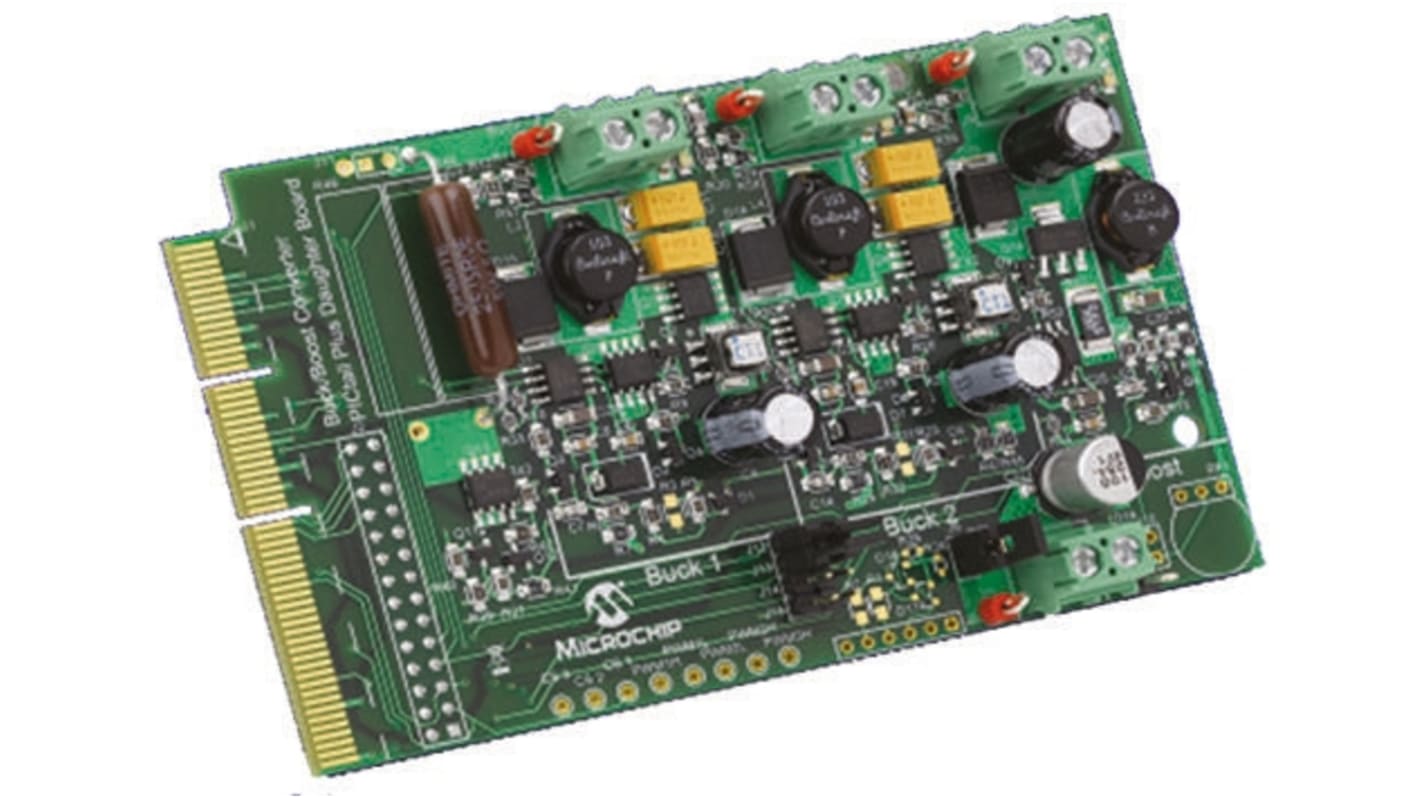

PICtail™ Plus Buck/Boost Converter Daughter Board


This PICtail™ Plus Daughter Board provides an easy and economical development platform for dsPIC® SMPS and Digital Power Conversion GS family Digital Signal Controllers, designed to provide low-cost and efficient control for a wide range of power supply topologies and power conversion applications.

Can be connected to Explorer 16 development board or 16-bit 28pin Starter Development board

Explorer 16: use MA330020, dsPIC33FJ16GS504 44pin to 100pin Plug-In Module

16-bit 28pin Starter Development board: use dsPIC33F16GS502-I/PT device

Operates at input voltage range +9V to +15V DC

Two synchronous buck converter power stages

One boost converter power stage

Full Load operation on 3.3V, 5V Buck outputs & 20V Boost output when loaded individually and or simultaneously

5V output1 @ 3A, 3.3V output2 @ 3A, 20V output3 @ 0.75A

PMBus communication interface connector

5Ω/5W switchable resistive load - expandable

Supported by Mindi™ Power Design and Simulator Tool

Parallel operation of two buck converters

Various fault indication & protection

Excellent dynamic load performance & output sequencing

Supplied with

Documentation on CD
