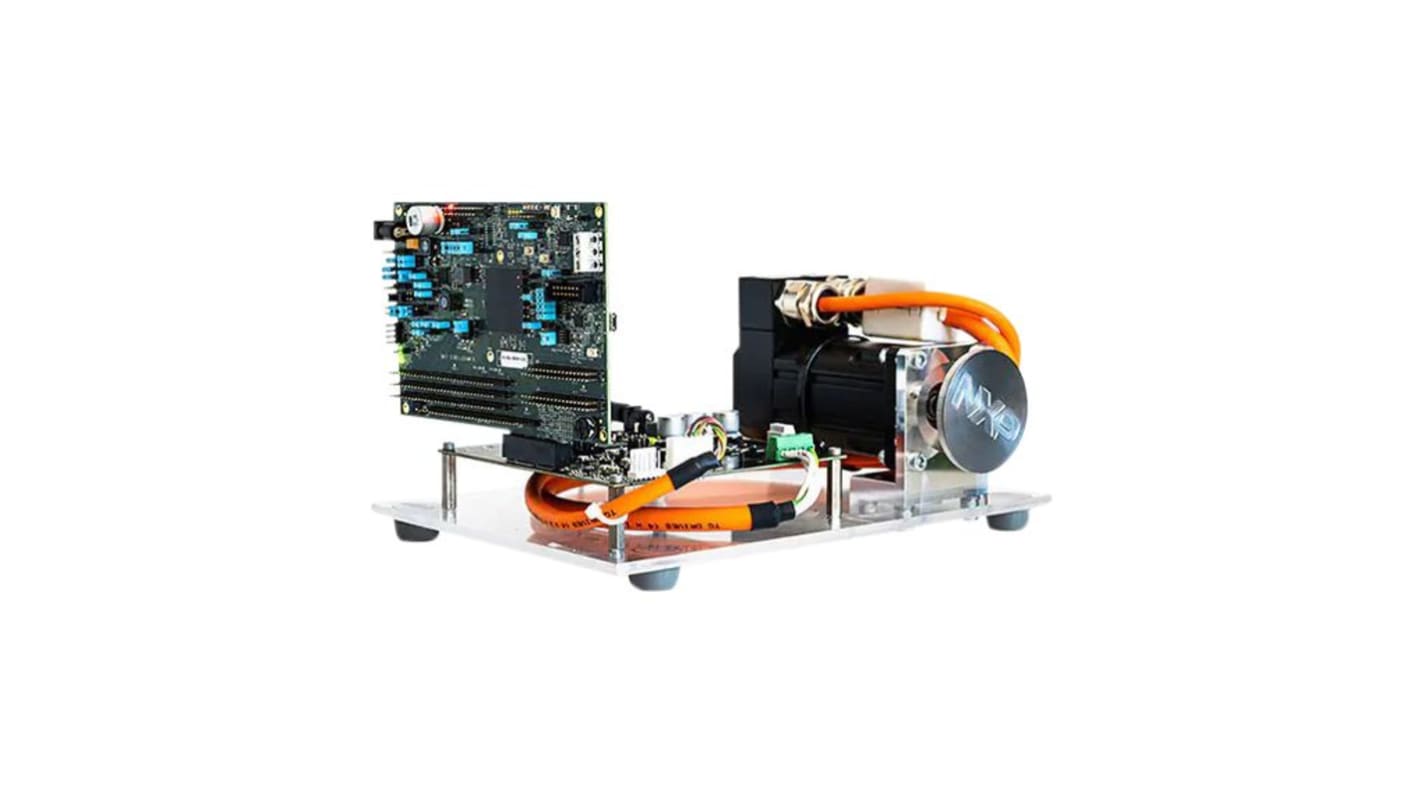

NXP MCSPTR2A5775E Motor Control Kit 3-Phase Motor Drive for MPC5775E-EVB for 3-phase PMSM/BLDC low-voltage power stage

Se kategorien

Antal (1 enhet)*

28 540,06 kr

(exkl. moms)

35 675,08 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 1 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +28 540,06 kr

*vägledande pris

RS-artikelnummer:
288-4869
Distrelec artikelnummer:
302-47-038
Tillv. art.nr:
MCSPTR2A5775E
Tillverkare / varumärke:
NXP
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

NXP

Power Management Function

3 Phase Motor Drive

For Use With

3-phase PMSM/BLDC low-voltage power stage based on the MC33937A pre-driver integrated circuit

Kit Classification

Motor Control Board

Featured Device

MPC5775E-EVB

Kit Name

MCSPTR2A5775E Motor Control Kit

COO (Country of Origin):
US
The efficient electric motor control kit, revolutionizes complex electric motor drive with enhanced features such as Ethernet, LIN, and CAN connectivity support. It utilizes a time processing unit (eTPU) to manage PWM, software resolver digital converter (RDC), and FOC motor control algorithm, offering flexibility and sophistication in motor control systems without the need for separate hardware.

Integrated MPC5775E-EVB controller board with two eTPUs

3-phase PMSM/BLDC low-voltage power stage based on MC33937A pre-driver IC

Current sensing via shunt resistor for accurate control

Support for ISO 26262 ASIL D applications

+24 VDC power supply for reliable operation

S32 Design Studio, FreeMASTER, and MCAT supported for ease of use

Detailed 3-Phase PMSM Motor Control Application Note available
