Process Control and Automation Solution

Se kategorien

Antal (1 enhet)*

3 065,22 kr

(exkl. moms)

3 831,52 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 4 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +3 065,22 kr

*vägledande pris

RS-artikelnummer:
235-4720
Tillv. art.nr:
STEVAL-PLC001V1
Tillverkare / varumärke:
STMicroelectronics
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

STMicroelectronics

Power Management Function

PLC Controller

For Use With

Power Supplies & Converters

Kit Classification

Evaluation Board

Featured Device

STM32F746ZGT7

Kit Name

STEVAL-PLC001V1

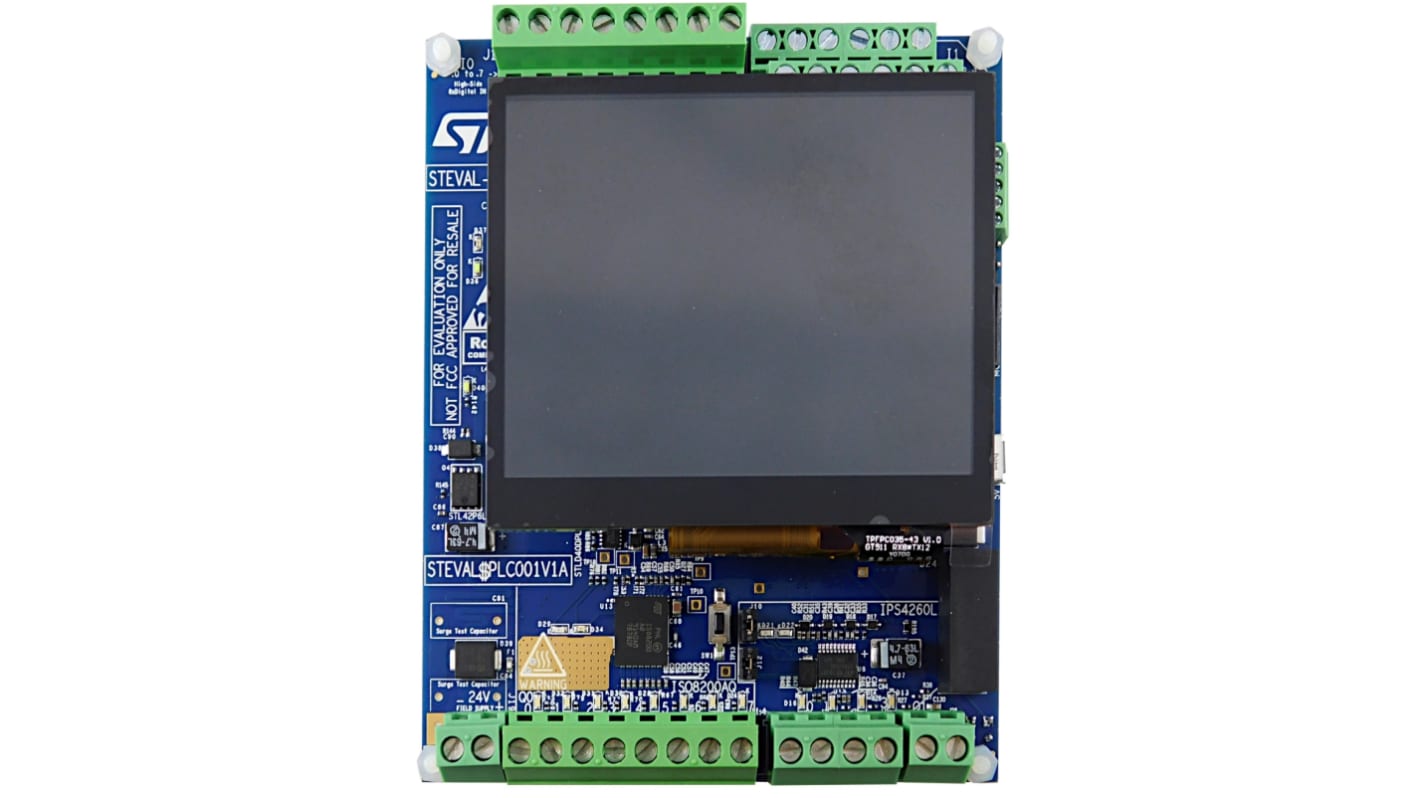

The STMicroelectronics STEVAL-PLC001V1 evaluation board targets compact programmable logic controller (PLC) applications in the factory automation domain. It features a powerful human machine interface (HMI) thanks to the 3.5 inch TFT touchscreen mounted on the PCB, which eases interaction with the tool. The board implements a galvanically isolated PLC control unit with robust digital input, digital output modules, expansion connectivity options, and interfaces. The control unit consists of a powerful 144-pin STM32F746ZGT7 MCU, which handles the industrial IOs on one side and the TouchGFX display technology on the other side, implementing the ladder logic programming code and several additional options.

Isolated USART port connector
EMC pad and four-layer routing
On-board RAM and serial flash
Provision for RTC, USB
Debug LEDs and reset button
