Microchip Power Detector for PD70211 for PD70211

Se kategorien

Antal (1 enhet)*

3 433,25 kr

(exkl. moms)

4 291,56 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Håller på att utgå
  • Slutlig(a) 2 enhet(er), redo att levereras
Enheter
Per enhet
1 +3 433,25 kr

*vägledande pris

RS-artikelnummer:
215-5997
Tillv. art.nr:
PD70211EVB50FW-5
Tillverkare / varumärke:
Microchip
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Microchip

Power Management Function

Power Detector

For Use With

PD70211

Kit Classification

Evaluation Board

Featured Device

PD70211

Kit Name

FWD, PD with PD70211 5V 10A

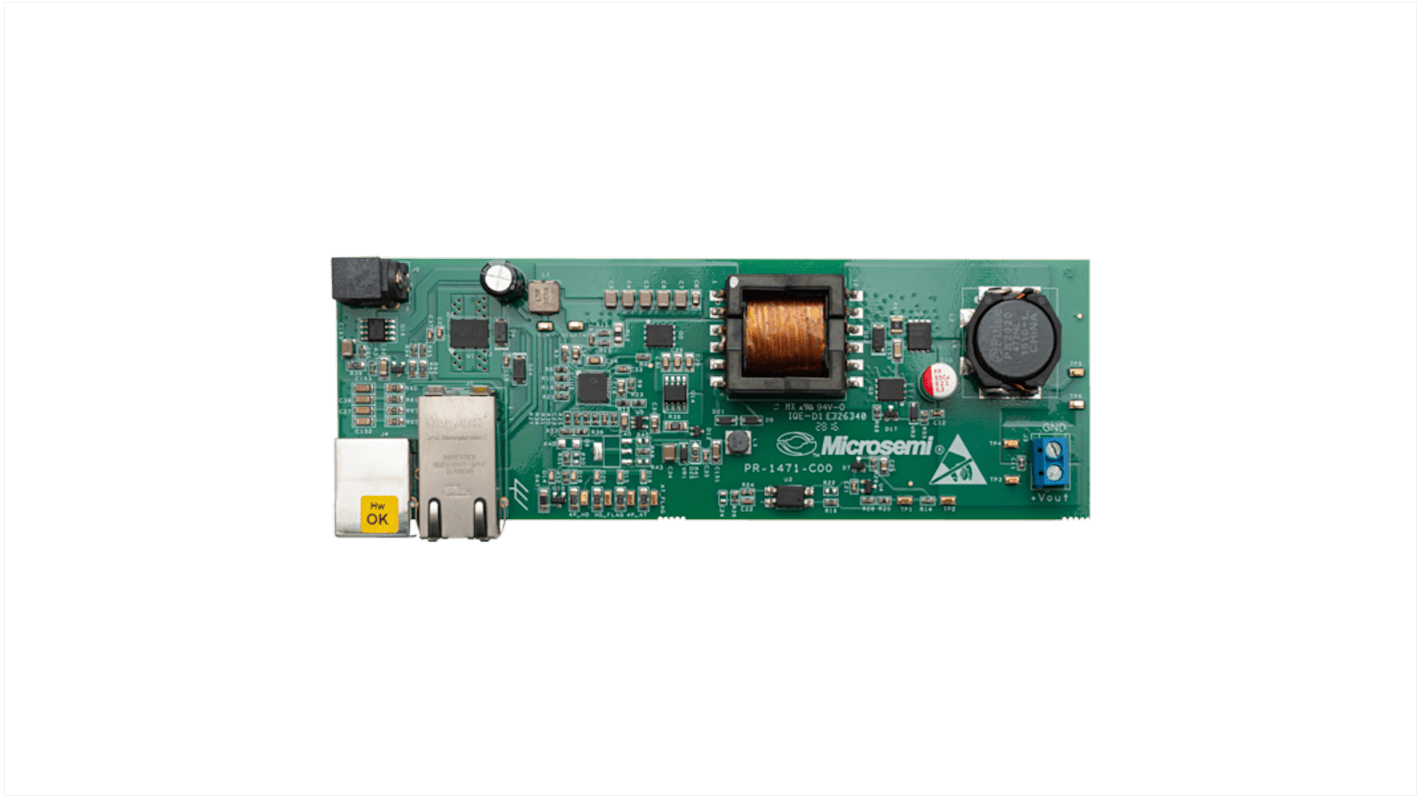

The Microchip PD70211EVB50FW-5 evaluation board provides designers with an environment needed for evaluating the performance and implementation of PD applications based on PD70211 controller. The board is using a single PD controller, PD70211ILQ, to support the Detection, Class, and Power Supplying phases on the 4 pairs of the Cat5 cable. The board supports sync detection of the 4 pairs. PD70211ILQ supports the current of the HDBaseT over 4 Pairs, which is more than twice the power of a standard IEEE802.3AT Type 2 interface.

Featuring PD70211 and PD70224

IEEE 802.3af/at/Dual-AT/POH standard compliant

50W - 5V / 10A output voltage / current

Active clamp forward topology

Wall adaptor support

Power is supplied through the 4-pairs of the Cat5 cable
