Infineon EVAL_3K3W_TP_PFC_SIC PFC Controller for Power Supplies

Se kategorien
För närvarande inte tillgänglig
Vi vet inte om den här artikeln kommer tillbaka i lager, RS har för avsikt att ta bort den från vårt utbud snart.
RS-artikelnummer:
214-1996
Tillv. art.nr:
EVAL3K3WTPPFCSICTOBO1
Tillverkare / varumärke:
Infineon
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Infineon

Power Management Function

PFC Controller

For Use With

Power Supplies

Kit Classification

Evaluation Board

Kit Name

EVAL_3K3W_TP_PFC_SIC

Uppfyller ej RoHS

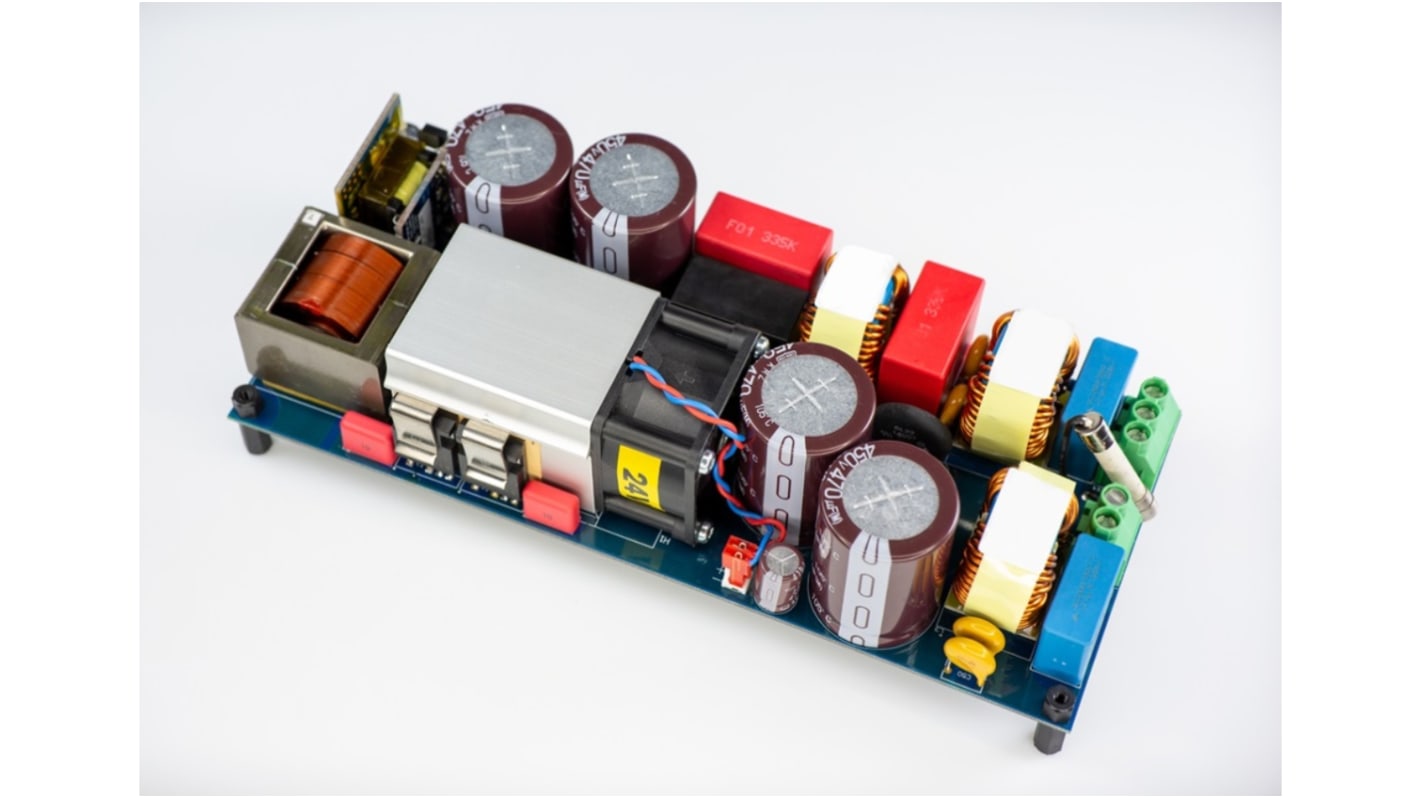

Infinion EVAL_3K3W_TP_PFC_SIC Evaluation Board


The EVAL_3K3W_TP_PFC_SIC evaluation board from Infineon Technologies is a system solution for a bridgeless totem-pole power factor corrector (PFC) with bidirectional power capability. Perfect for use with applications that require high efficiency and high power density, the EVAL_3K3W_TP_PFC_SIC evaluation board consists of a bridgeless totem-pole topology. Furthermore, the EV board is enabled by Infineon Technologies power semiconductors as well as drivers and microcontroller. The simple totem-pole topology provides full utilization of the PFC inductor and switches and offers a reduced part count.

The EVAL_3K3W_TP_PFC_SIC evaluation board also features reverse power flow (inverter operation for grid-connected applications) thanks to the inherent bi-directional power flow capability of the totem-pole topology. This enables the design to be used in battery formation applications or battery chargers.

Features and Benefits


High efficiency bridgeless totem-pole PFC
Perfect for high efficiency applications (close to 99%)
Bidirectional operation (digital control)
High power density
Enabled by CoolSiC™ MOSFET 650V
Digitally controlled with XMC1404
Bidirectional capability (DC-AC operation)
Compact form factor (72W/in3)
Low component count

Applications


The EVAL_3K3W_TP_PFC_SIC board is ideal for use with applications that require high efficiency and power density including energy storage systems, battery formation and charging, EV-charging, telecom and much more.

What components are used in the board?


600 V CoolMOS™ C7 SJ MOSFET and 650 V CoolSiC™ silicon carbide MOSFET
2EDF7275F isolated gate drivers (EiceDRIVER™)
XMC1404 microcontroller
ICE5QSAG CoolSET™ QR Flyback controller
950 V CoolMOS™ P7 SJ MOSFET
