Maxim Integrated MAX17205G EV Kit Power Management for DS91230+ for Maxim Integrated MAX17205/MAX17215

Se kategorien
Mängdrabatt möjlig

Antal (1 enhet)*

1 193,47 kr

(exkl. moms)

1 491,84 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Sista RS lager
  • Slutlig(a) 6 enhet(er), redo att levereras
Enheter
Per enhet
1 - 11 193,47 kr
2 - 41 162,45 kr
5 +1 133,78 kr

*vägledande pris

RS-artikelnummer:
191-4216
Tillv. art.nr:
MAX17205GEVKIT#
Tillverkare / varumärke:
Maxim Integrated
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Maxim Integrated

Power Management Function

Power Management

For Use With

Maxim Integrated MAX17205/MAX17215

Kit Classification

Evaluation Kit

Featured Device

DS91230+

Kit Name

MAX17205G EV Kit

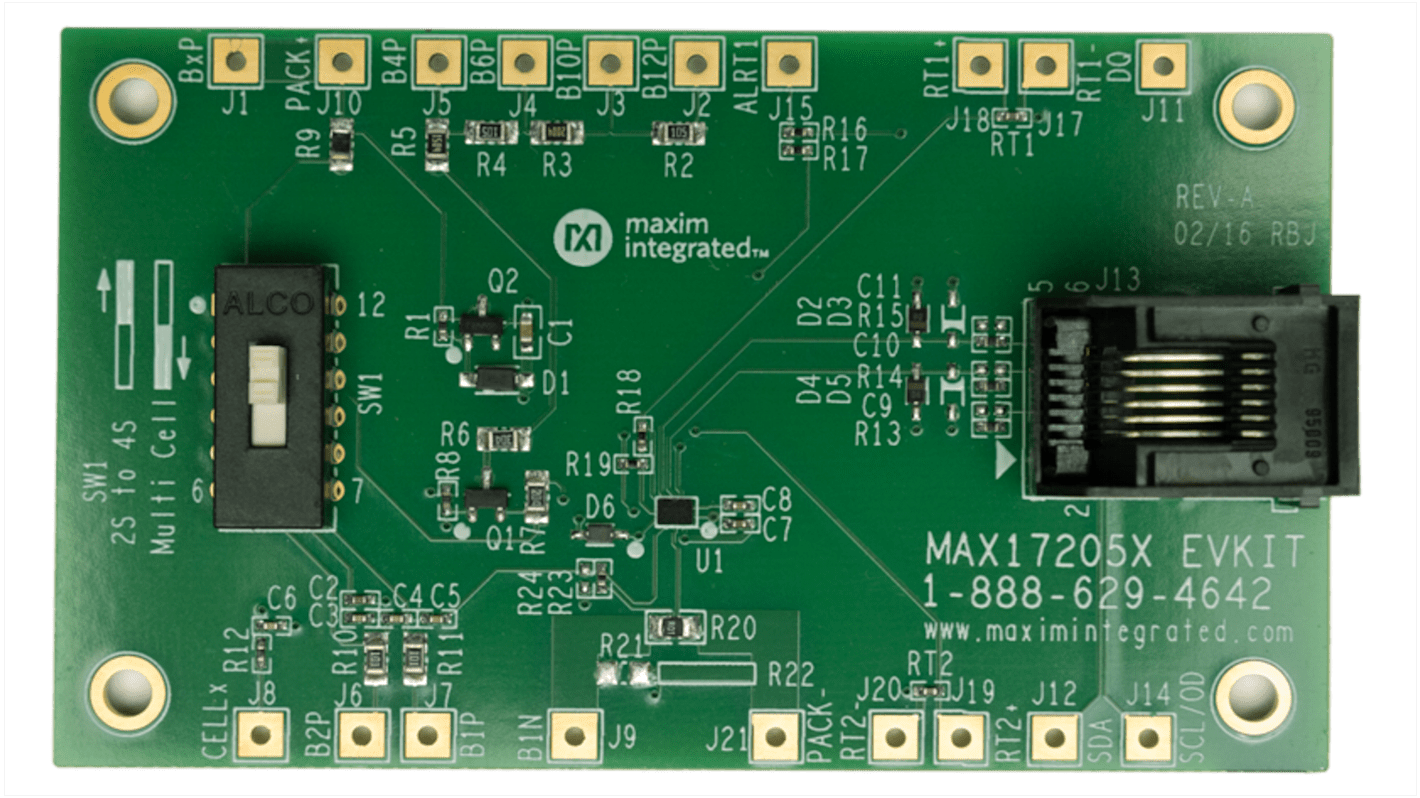

The Maxim Integrated evaluation kits (EV kits) for MAX17205/MAX17215 are fully assembled and tested surface-mount PCBs that evaluate the stand-alone Model Gauge m5 pack-side fuel-gauge ICs for lithium ion (Li+) batteries in handheld and portable equipment. The MAX17205 and MAX17215 are for multicell applications. See the MAX17201 and MAX17211 for single-cell applications. The MAX17205G/MAX17205X/MAX17215G/MAX17215X kits include the Maxim DS91230+ USB interface, IC evaluation board, and RJ-11 connection cable. Windows based graphical user interface (GUI) software is available for use with the EV kit and can be downloaded from Maxim’s website (under the Design Resources tab). Windows 7 or newer Windows operating system is required to use with the EV kit GUI software.

Model Gauge m5 Algorithm
Non-volatile Memory Configured for Stand-Alone Operation
Monitors from 2S to More Than 15S Cell Packs
Battery Pack Input Voltage Range of +2.1V to +4.9V per Cell
Thermistor Measurement Network
Optional On-Board PCB Trace Sense Resistor
Windows 7 or Newer Compatible Software
Proven PCB Layout
Fully Assembled and Tested
