XinaBox USB (Micro) Power Supply Power Supply

xChips are a rapid electronics development ecosystem to help reduce development time and simplify making custom products as well as aiding learning. Without soldering, wiring, breadboarding, or hardware knowledge you can assemble a circuit in minutes, and concentrate on coding.

xChips are compatible with the platform you want to use and bridges are available for the most popular pltatforms; Raspberry Pi, Minnowboard, Beaglebone, Micro:bit, Pixhawk and 96 boards. Rather than bridging to Ardunio, we offer compatible cores for Arduino Uno, the CC01, and for Arduino Zero, the CC03.

xChips utilise I2C, and due to this bus architecture, unlimited expansion of circuits is possible. Limitations of I2C addresses have been negated by development multiplexers.

Because of its simple connection method, it is easy to build quickly - for prototyping and small product runs

xChips connect to each other using an xBus connector, available from RS 174-4977.

Some xChips need an xPDI connector (RS 174-4974) to connect to programming interfaces, such as the IP02 or IP03.

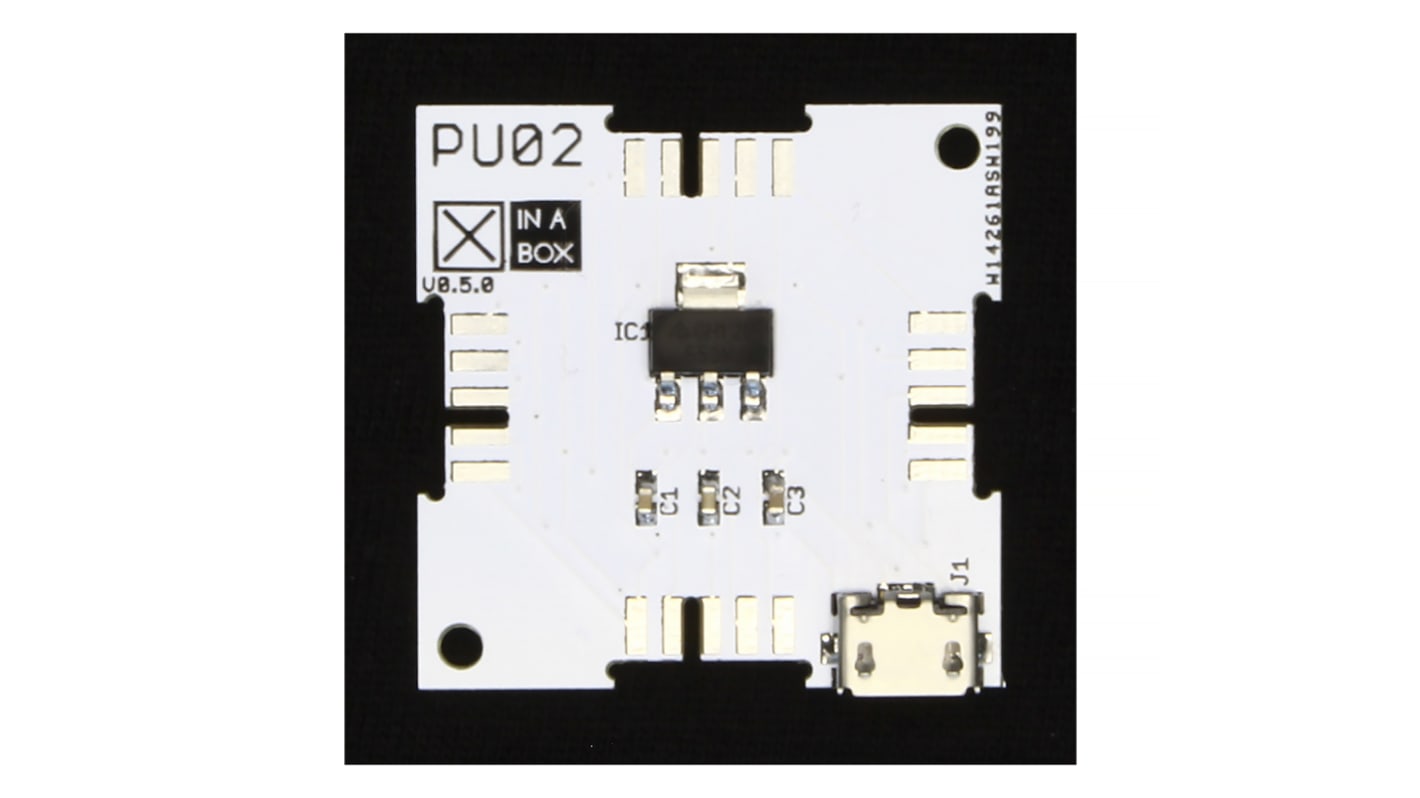

This xCHIP is designed to supply power to connected xCHIPS via a Micro USB cable. Voltage regulation from USB power provided by on-board AP2114 LDO, which features 1 A continuous current output, good output regulation accuracy and short circuit protection.

This xCHIP is designed to supply power to connected xCHIPS via a Micro USB cable. Voltage regulation from USB power provided by on-board AP2114 LDO, which features 1 A continuous current output, good output regulation accuracy and short circuit protection.

Product highlights
1 A Continuous Output Current
LED Power Indicator
Micro USB Connector
Fold-back Short Current Protection
Specifications
Output Voltage Accuracy: ±1.5%
Output Current: 1A
Fold-back Short Current Protection: 50mA
Low Quiescent Current: 60μA
Low Output Noise: 30μV RMS
OTSD Protection
Operating Temperature Range: -40°C to 85°C
