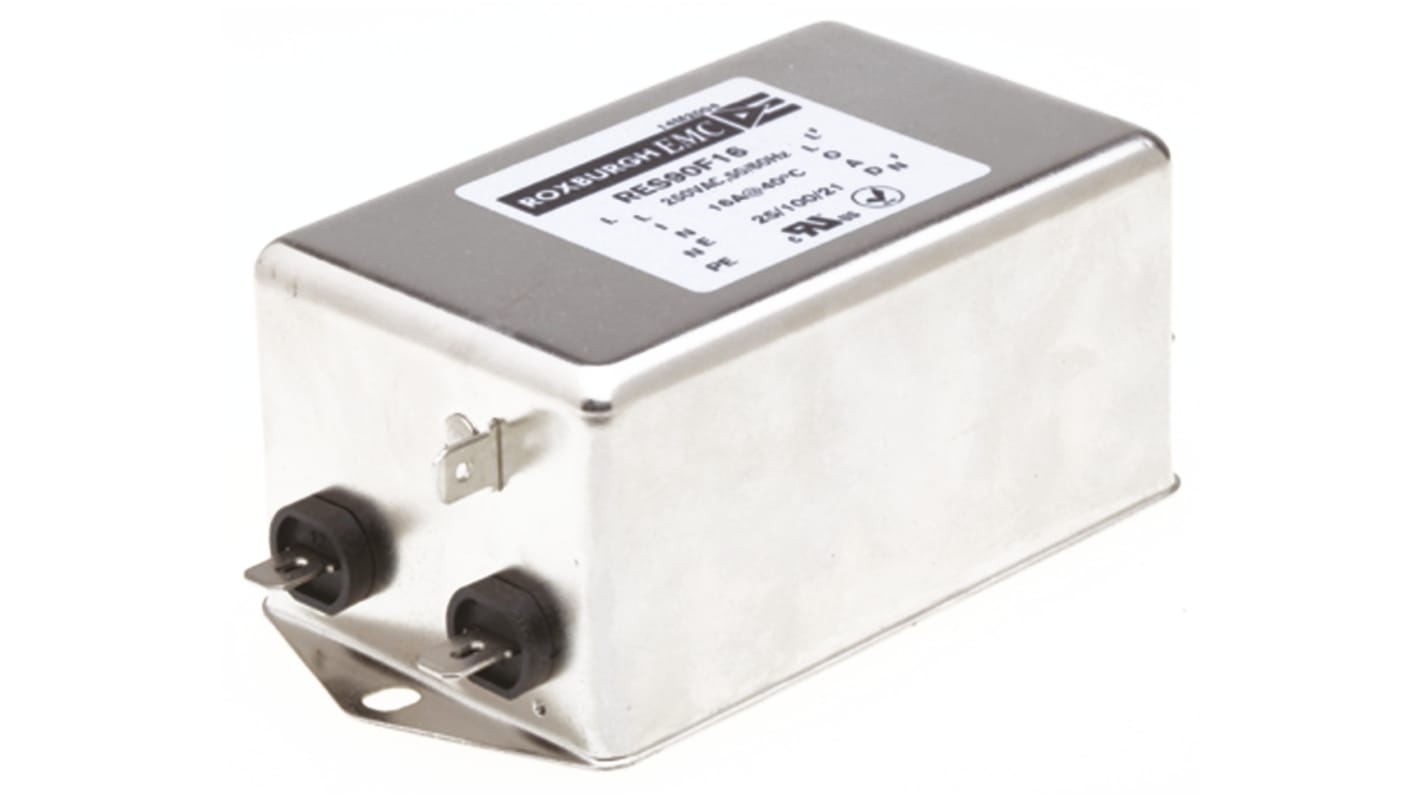

Roxburgh EMC RES90 Series 16A 250 V ac DC → 60Hz Chassis Mount RFI Filter, with Fast-On Terminals, Single Phase

  • RS-artikelnummer 806-8256
  • Tillv. art.nr RES90F16
  • Tillverkare / varumärke Roxburgh EMC
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): IN
Produktdetaljer

Roxburgh EMC RES90 Series

Roxburgh EMC RES90 series of multi-stage, single phase EMC filters featuring very high differential and common mode attenuation. The RES90 series is designed for use in applications where high levels of noise are present such as where drives are used. Typical applications for the RES90 series include: electrical and electronic equipment; consumer goods; household equipment; building automation; machinery; electronic data/communication processing equipment; office automation

Multi-stage
Very high differential and common mode attenuation
Excellent attenuation performance
For use from DC to 60Hz
1 Amp to 30 Amp
Compact size for performance
Fast-on, solder or wire terminations
Quick and easy chassis mounting

Note

Low leakage version suitable for medical applications

Approvals

UL E191581

Specifikationer
Attribute Value
Maximum Current Rating 16A
Maximum Voltage Rating 250 V ac
Mounting Type Chassis Mount
Termination Style Fast-On
Number of Phases 1
Number of Stages Multi Stage
Series RES90
Operating Frequency DC → 60Hz
Length 115mm
Depth 57mm
Height 45mm
Capacitance 3 μF, 22 nF
Inductance 8 mH
Dimensions 115 x 57 x 45mm
Leakage Current 1.02 mA
Minimum Operating Temperature -25°C
Maximum Operating Temperature +100°C
Resistance 220kΩ
Standards Met CSA 22.2 No. 8, UL 1283
34 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
345,25 kr
(exkl. moms)
431,56 kr
(inkl. moms)
Enheter
Per unit
1 - 9
345,25 kr
10 - 24
308,34 kr
25 - 49
280,75 kr
50 - 99
273,55 kr
100 +
266,71 kr
