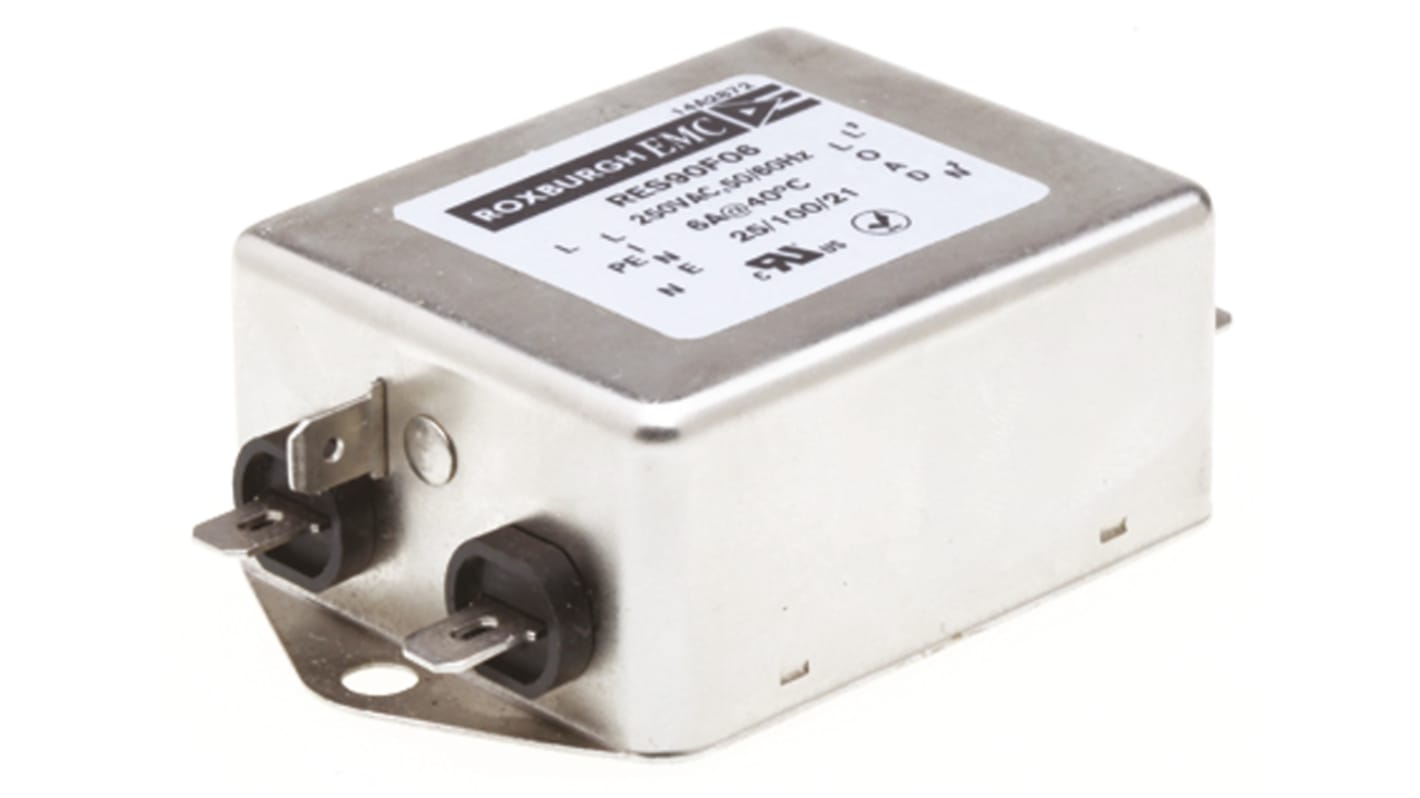

Roxburgh EMC, RES90 6A 250 V ac DC → 60Hz, Chassis Mount RFI Filter, Fast-On, Single Phase

Se alla Power Line Filters
Mängdrabatt möjlig

Antal (1 enhet)*

575,79 kr

(exkl. moms)

719,74 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 47 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 - 4575,79 kr
5 - 9535,47 kr
10 - 24500,86 kr
25 - 49471,97 kr
50 +442,18 kr

*vägledande pris

RS-artikelnummer:
806-8243
Tillv. art.nr:
RES90F06
Tillverkare / varumärke:
Roxburgh EMC
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Roxburgh EMC

Maximum Current Rating

6A

Maximum Voltage Rating

250 V ac

Mounting Type

Chassis Mount

Termination Style

Fast-On

Number of Phases

1

Number of Stages

Multi Stage

Series

RES90

Operating Frequency

DC → 60Hz

Length

85mm

Depth

51mm

Capacitance

1.41 μF, 8.6nF

Height

30mm

Inductance

16 mH

Dimensions

85 x 51 x 30mm

Minimum Operating Temperature

-25°C

Leakage Current

0.67 mA

Maximum Operating Temperature

+100°C

Resistance

330kΩ

Standards Met

CSA 22.2 No. 8, UL 1283

Roxburgh EMC RES90 Series


Roxburgh EMC RES90 series of multi-stage, single phase EMC filters featuring very high differential and common mode attenuation. The RES90 series is designed for use in applications where high levels of noise are present such as where drives are used. Typical applications for the RES90 series include: electrical and electronic equipment; consumer goods; household equipment; building automation; machinery; electronic data/communication processing equipment; office automation

Multi-stage
Very high differential and common mode attenuation
Excellent attenuation performance
For use from DC to 60Hz
1 Amp to 30 Amp
Compact size for performance
Fast-on, solder or wire terminations
Quick and easy chassis mounting

Note

Low leakage version suitable for medical applications

Approvals

UL E191581
