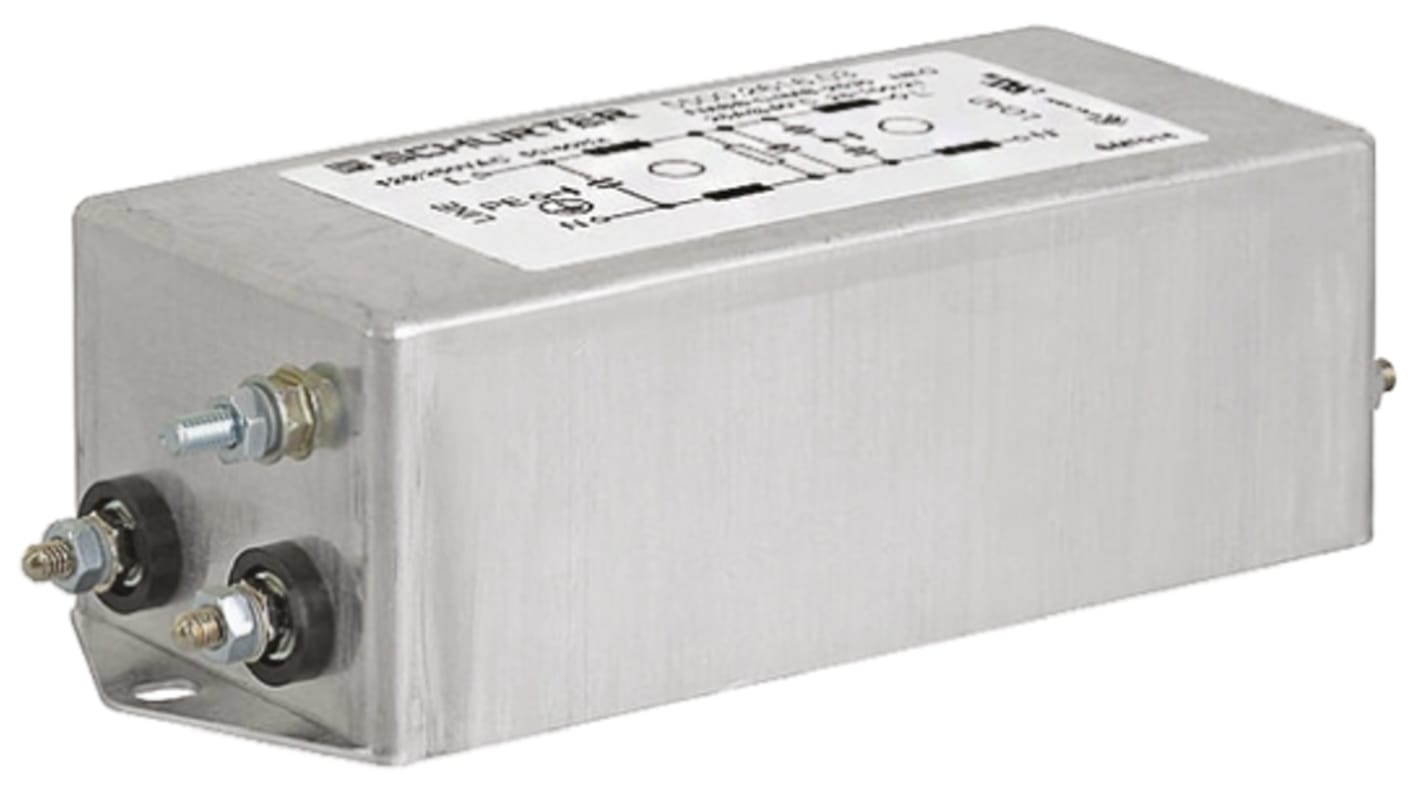

Schurter, FMBB NEO 3A 250 V ac 50 → 60Hz, Screw Mount RFI Filter, Tab, Single Phase

Denna bild representerar endast produktgruppen

Se alla Power Line Filters
Mängdrabatt möjlig

Antal (1 enhet)*

258,72 kr

(exkl. moms)

323,40 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Tillfälligt slut
  • Leverans från den 11 maj 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 - 4258,72 kr
5 - 9234,86 kr
10 - 19214,26 kr
20 - 49194,10 kr
50 +175,95 kr

*vägledande pris

RS-artikelnummer:
782-4092
Tillv. art.nr:
5500.2601.01
Tillverkare / varumärke:
Schurter
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Schurter

Maximum Current Rating

3A

Maximum Voltage Rating

250 V ac

Mounting Type

Screw Mount

Termination Style

Tab

Number of Phases

1

Series

FMBB NEO

Number of Stages

Two Stage

Operating Frequency

50 → 60Hz

Length

77mm

Depth

46mm

Height

31mm

Capacitance

4.7 nF, 220nF

Dimensions

77 x 46 x 31mm

Inductance

2.5 mH

Leakage Current

> 0.5 mA

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+100°C

Resistance

120mΩ

Standards Met

UL 1283

Power Loss

2.2W

COO (Country of Origin):
SK

FMBB NEO Series AC Filters Chassis Mount


Chassis type two stage single phase broad band attenuation filter in a metal housing
Designed for for industrial applications such as Frequency convertors, UPS systems etc.
Especially effective against symmetrical and asymmetrical interferences in the frequency range 100kHz up to 300MHz
Qualified for use in equipment according to IEC?EN 60950
