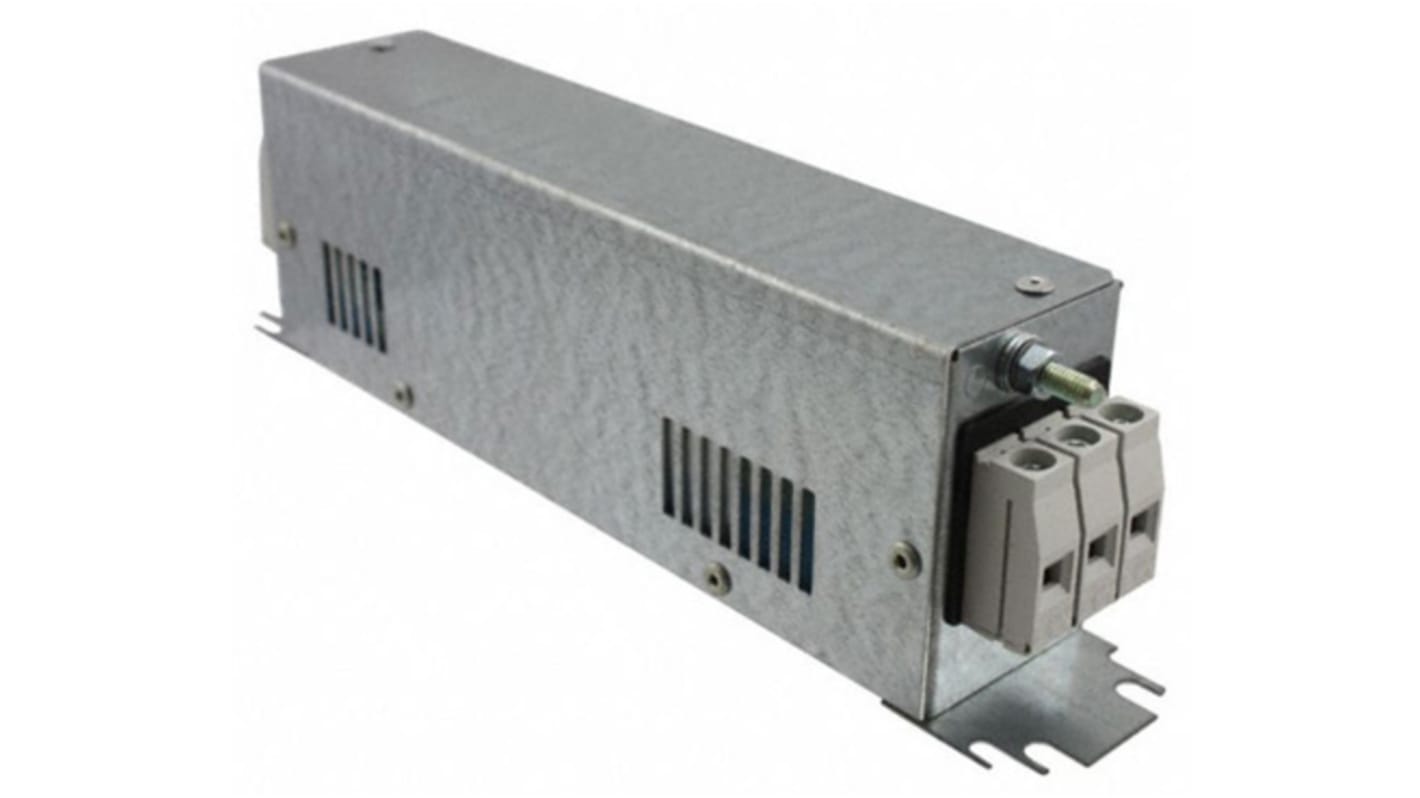

Schurter, FMAC ECO 64A 480 V ac 60Hz, Flange Mount RFI Filter, Screw 3 Phase

Se alla Power Line Filters
Mängdrabatt möjlig

Antal (1 enhet)*

2 780,53 kr

(exkl. moms)

3 475,66 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 3 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 - 12 780,53 kr
2 - 42 502,51 kr
5 - 92 252,18 kr
10 +2 026,99 kr

*vägledande pris

RS-artikelnummer:
708-5689
Tillv. art.nr:
FMAC-091E-6410
Tillverkare / varumärke:
Schurter
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Schurter

Maximum Current Rating

64A

Maximum Voltage Rating

480 V ac

Mounting Type

Flange Mount

Termination Style

Screw

Number of Phases

3

Number of Stages

Single Stage

Series

FMAC ECO

Operating Frequency

60Hz

Length

141mm

Depth

265mm

Height

58mm

Capacitance

3.3 μF, 4.7µF

Inductance

550 μH

Dimensions

141 x 265 x 58mm

Leakage Current

10.2 mA

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+100°C

Resistance

1.4mΩ

Standards Met

IEC 60939, UL 1283

Power Loss

17W

FMAC Series


Schurter FMAC series single stage power line filter for 3-phase systems. The FMAC series is designed for use in photovoltaic systems and industrial applications to offer protection against interference voltage form the mains supply. The FMAC series features high symmetrical and asymmetrical attenuation and a wide frequency range offer of 10kHz up to 300MHz.

High attenuation
Screw clamp terminals
Voltage rating 480 and 520 V ac for worldwide acceptance
Qualified for use in equipment according IEC/EN 60950

Standards

IEC 60939, UL 1283

Approvals

VDE, UL
