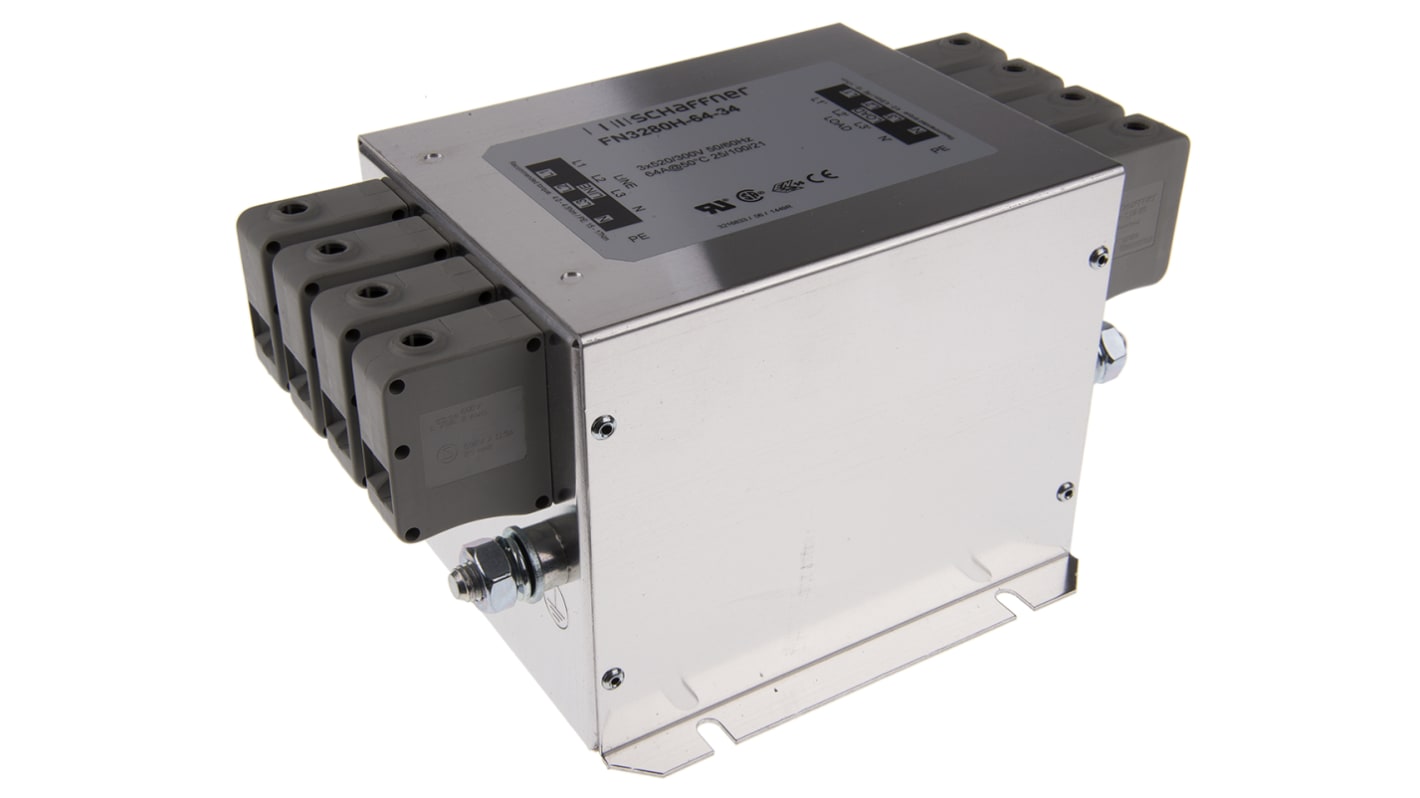

Schaffner, FN3280 64A 520/300 V ac 60Hz, Chassis Mount EMI Filter, Terminal Block 3 Phase
- RS-artikelnummer:
- 708-4339
- Distrelec artikelnummer:
- 304-02-096
- Tillv. art.nr:
- FN3280H-64-34
- Tillverkare / varumärke:
- Schaffner
Mängdrabatt möjlig
Antal (1 enhet)*
4 452,55 kr
(exkl. moms)
5 565,69 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 4 enhet(er) är redo att levereras från en annan plats
- Dessutom levereras 8 enhet(er) från den 23 december 2025
- Dessutom levereras 20 enhet(er) från den 22 januari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 4 | 4 452,55 kr |
| 5 - 9 | 4 140,98 kr |
| 10 + | 3 873,74 kr |
*vägledande pris
- RS-artikelnummer:
- 708-4339
- Distrelec artikelnummer:
- 304-02-096
- Tillv. art.nr:
- FN3280H-64-34
- Tillverkare / varumärke:
- Schaffner
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Schaffner | |
| Maximum Current Rating | 64A | |
| Maximum Voltage Rating | 520/300 V ac | |
| Mounting Type | Chassis Mount | |
| Termination Style | Terminal Block | |
| Number of Phases | 3 | |
| Series | FN3280 | |
| Operating Frequency | 60Hz | |
| Length | 153mm | |
| Depth | 238mm | |
| Height | 125mm | |
| Dimensions | 153 x 238 x 125mm | |
| Leakage Current | 1 mA | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +100°C | |
| Resistance | 820 kΩ, 660kΩ | |
| Power Loss | 18.4W | |
| Välj alla | ||
|---|---|---|
Brand Schaffner | ||
Maximum Current Rating 64A | ||
Maximum Voltage Rating 520/300 V ac | ||
Mounting Type Chassis Mount | ||
Termination Style Terminal Block | ||
Number of Phases 3 | ||
Series FN3280 | ||
Operating Frequency 60Hz | ||
Length 153mm | ||
Depth 238mm | ||
Height 125mm | ||
Dimensions 153 x 238 x 125mm | ||
Leakage Current 1 mA | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +100°C | ||
Resistance 820 kΩ, 660kΩ | ||
Power Loss 18.4W | ||
FN 3280 Series
FN3280 series compact and lightweight 3 phase + neutral line filters
Design optimised for industrial equipment combining exceptional attenuation with low leakage current
Suitable for machines in mixed domestic environments (Class A/B)
Operated directly on the mains input the immunity is increased
Solid touch safe terminal blocks offering a contacting cross section according to EN 60204-1
Simple and time saving installation with good accessibility for automatic and hand tools
The filter current ratings are aligned with common fuse values for ease of selection
Design optimised for industrial equipment combining exceptional attenuation with low leakage current
Suitable for machines in mixed domestic environments (Class A/B)
Operated directly on the mains input the immunity is increased
Solid touch safe terminal blocks offering a contacting cross section according to EN 60204-1
Simple and time saving installation with good accessibility for automatic and hand tools
The filter current ratings are aligned with common fuse values for ease of selection
