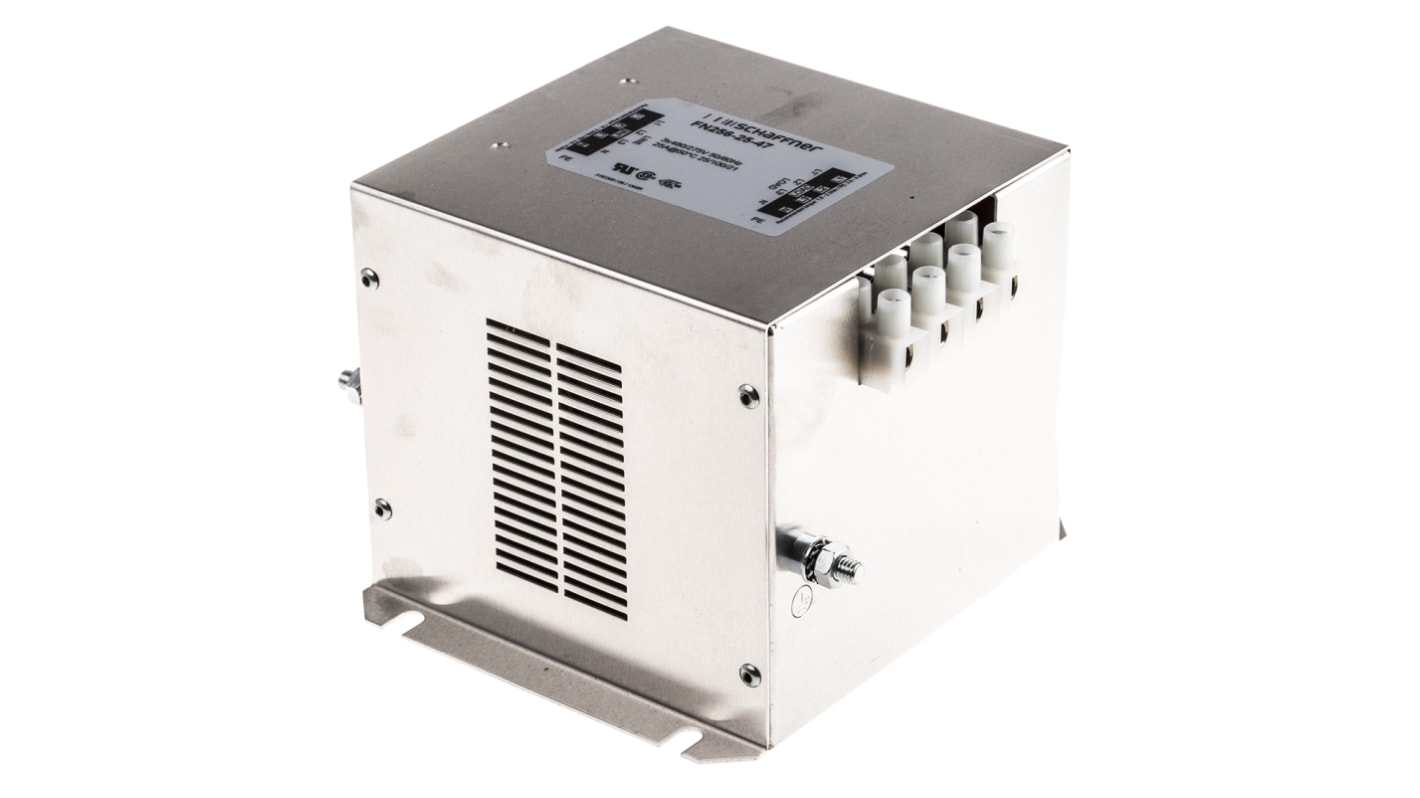

Schaffner, FN256 25A 480 V ac 0 → 60Hz, Flange Mount RFI Filter, Screw 3 Phase
- RS-artikelnummer:
- 262-9912
- Tillv. art.nr:
- FN256-25-47
- Tillverkare / varumärke:
- Schaffner
För närvarande inte tillgänglig
Vi vet inte om den här artikeln kommer att finnas i lager igen, den har utgått från tillverkaren.
- RS-artikelnummer:
- 262-9912
- Tillv. art.nr:
- FN256-25-47
- Tillverkare / varumärke:
- Schaffner
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Schaffner | |
| Maximum Current Rating | 25A | |
| Maximum Voltage Rating | 480 V ac | |
| Mounting Type | Flange Mount | |
| Termination Style | Screw | |
| Number of Phases | 3 | |
| Series | FN256 | |
| Number of Stages | Single Stage | |
| Operating Frequency | 0 → 60Hz | |
| Length | 153mm | |
| Depth | 166mm | |
| Height | 115mm | |
| Dimensions | 153 x 166 x 115mm | |
| Inductance | 1.57 mH | |
| Minimum Operating Temperature | -25°C | |
| Leakage Current | 3.4 mA | |
| Maximum Operating Temperature | +100°C | |
| Resistance | 680kΩ | |
| Power Loss | 11.6W | |
Välj alla | ||
|---|---|---|
Brand Schaffner | ||
Maximum Current Rating 25A | ||
Maximum Voltage Rating 480 V ac | ||
Mounting Type Flange Mount | ||
Termination Style Screw | ||
Number of Phases 3 | ||
Series FN256 | ||
Number of Stages Single Stage | ||
Operating Frequency 0 → 60Hz | ||
Length 153mm | ||
Depth 166mm | ||
Height 115mm | ||
Dimensions 153 x 166 x 115mm | ||
Inductance 1.57 mH | ||
Minimum Operating Temperature -25°C | ||
Leakage Current 3.4 mA | ||
Maximum Operating Temperature +100°C | ||
Resistance 680kΩ | ||
Power Loss 11.6W | ||
