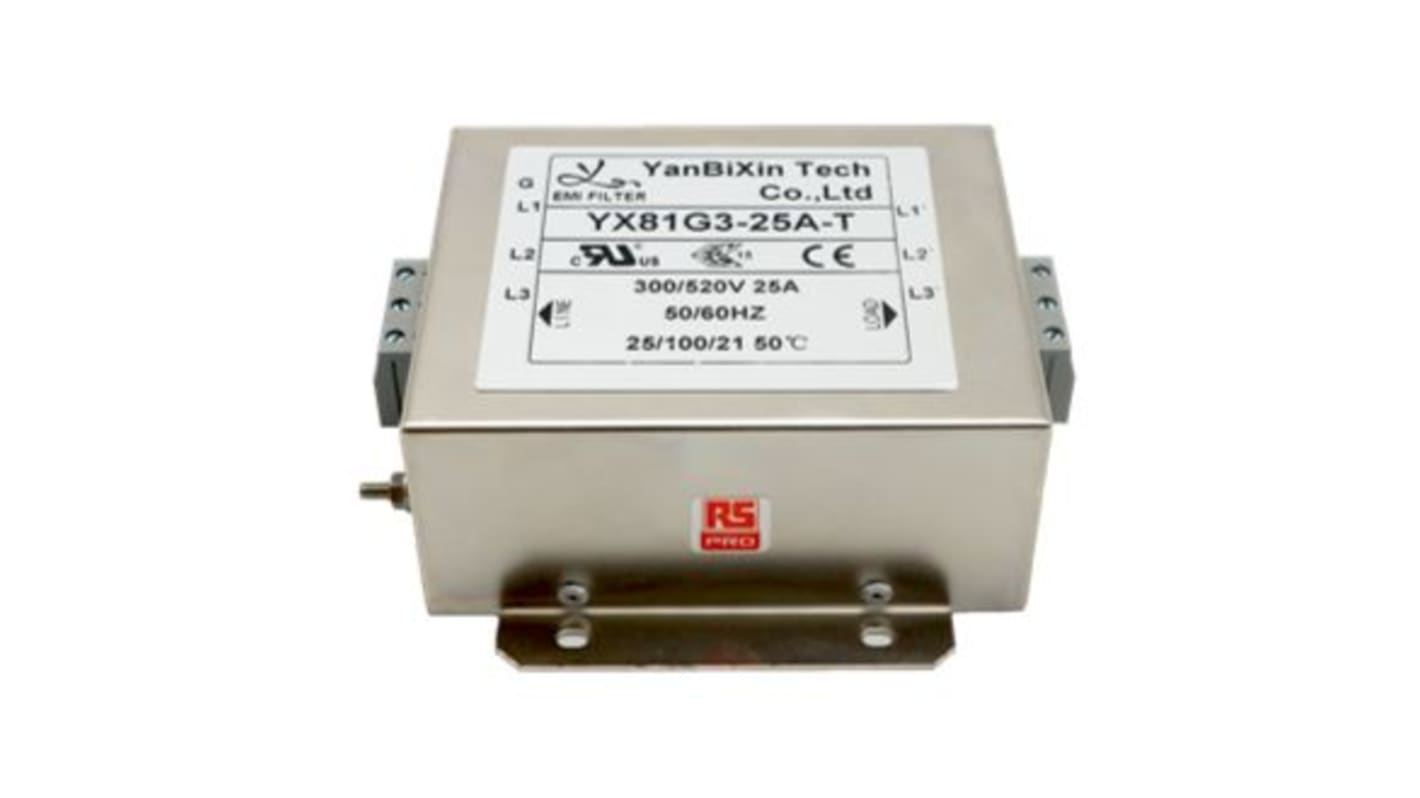

RS PRO 25A 300/520 V ac 50/60Hz, Chassis Mount Power Line Filter, Terminal Block 3 Phase
- RS-artikelnummer:
- 237-8742
- Tillverkare / varumärke:
- RS PRO
Price Var (i en låda med 18)**
1 001,323 kr
(exkl. moms)
1 251,654 kr
(inkl. moms)
36 I lager för avsändande samma dag*
* Leveransdatumen kan ändras beroende på vald kvantitet och leveransadress.
FRI frakt på alla onlineordrar över 500,00 kr
Finns det i lager?
Enheter | Per enhet | Per Låda** |
|---|---|---|
| 18 + | 1 001,323 kr | 18 023,814 kr |
**vägledande pris
- RS-artikelnummer:
- 237-8742
- Tillverkare / varumärke:
- RS PRO
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | RS PRO | |
| Maximum Current Rating | 25A | |
| Maximum Voltage Rating | 300/520 V ac | |
| Mounting Type | Chassis Mount | |
| Termination Style | Terminal Block | |
| Number of Phases | 3 | |
| Number of Stages | Single Stage | |
| Operating Frequency | 50/60Hz | |
| Length | 130 | |
| Depth | 120 | |
| Capacitance | 0.68µF | |
| Height | 50 | |
| Inductance | 3*1.0mH | |
| Dimensions | 130*120*50mm | |
| Leakage Current | 2.4/3.7mA | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +85°C | |
| Resistance | 470kΩ | |
Välj alla | ||
|---|---|---|
Brand RS PRO | ||
Maximum Current Rating 25A | ||
Maximum Voltage Rating 300/520 V ac | ||
Mounting Type Chassis Mount | ||
Termination Style Terminal Block | ||
Number of Phases 3 | ||
Number of Stages Single Stage | ||
Operating Frequency 50/60Hz | ||
Length 130 | ||
Depth 120 | ||
Capacitance 0.68µF | ||
Height 50 | ||
Inductance 3*1.0mH | ||
Dimensions 130*120*50mm | ||
Leakage Current 2.4/3.7mA | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +85°C | ||
Resistance 470kΩ | ||
