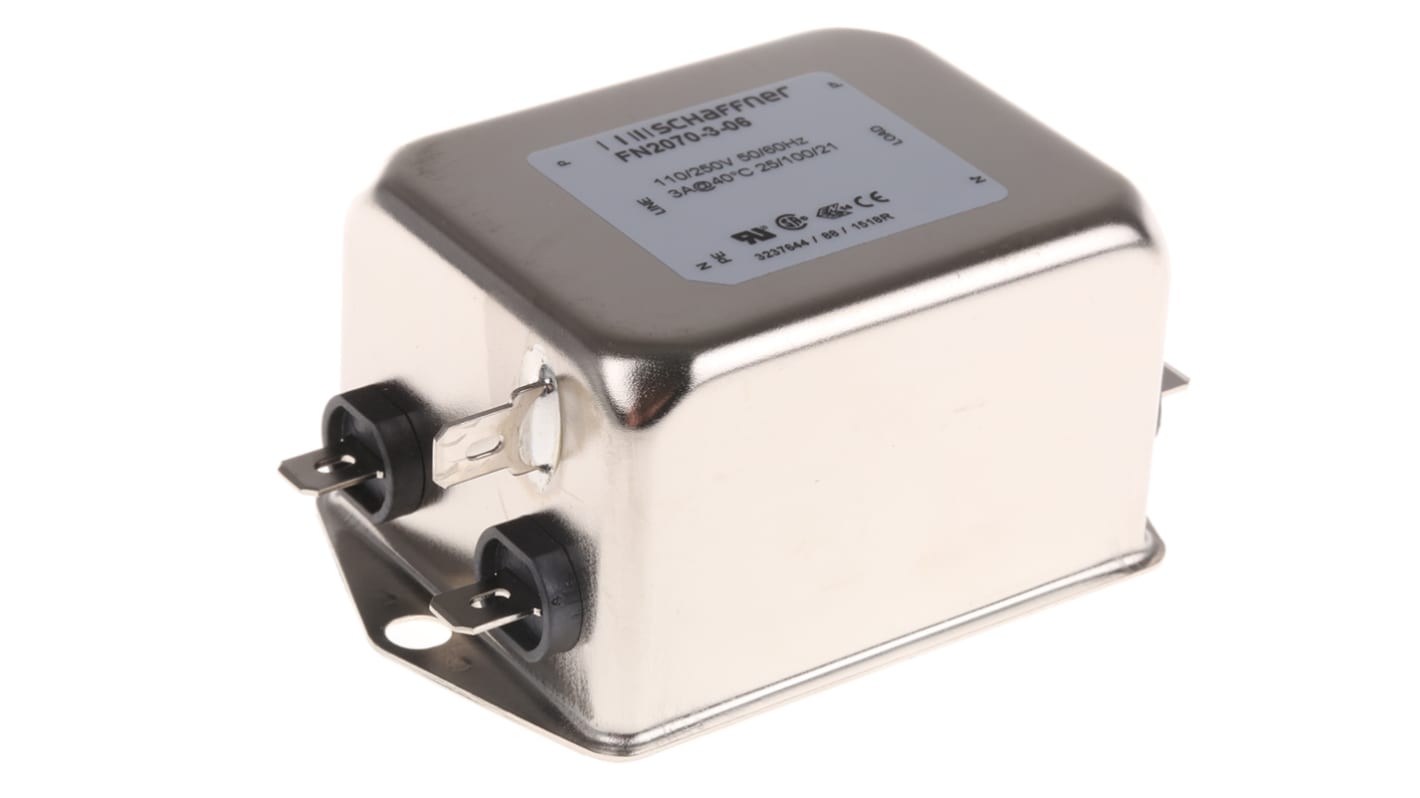

Schaffner, FN2070 3A 250 V ac/dc DC → 400Hz, Chassis Mount EMI Filter, Fast-On, Single Phase

Se alla Power Line Filters
Mängdrabatt möjlig

Antal (1 enhet)*

319,20 kr

(exkl. moms)

399,00 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 69 enhet(er) är redo att levereras
  • Plus 9 enhet(er) är redo att levereras från en annan plats
  • Dessutom levereras 48 enhet(er) från den 17 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 - 9319,20 kr
10 - 24296,80 kr
25 - 49277,65 kr
50 - 74261,63 kr
75 +250,77 kr

*vägledande pris

RS-artikelnummer:
219-2937
Distrelec artikelnummer:
169-67-228
Tillv. art.nr:
FN2070-3-06
Tillverkare / varumärke:
Schaffner
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Schaffner

Maximum Current Rating

3A

Maximum Voltage Rating

250 V ac/dc

Mounting Type

Chassis Mount

Termination Style

Fast-On

Number of Phases

1

Number of Stages

Two Stage

Series

FN2070

Operating Frequency

DC → 400Hz

Length

85mm

Depth

54mm

Capacitance

4.7 nF, 470nF

Height

40.3mm

Dimensions

85 x 54 x 40.3mm

Inductance

9.8 mH

Minimum Operating Temperature

-25°C

Leakage Current

0.734 mA

Maximum Operating Temperature

+100°C

Resistance

470kΩ

Power Loss

2.2W

FN 2070 Series


Schaffner's FN2070 two-stage filters are designed for easy and fast chassis mounting. All filters provide a high conducted attenuation performance based on chokes with high saturation resistance and excellent thermal behaviour.

Can be used in a wide range of applications such as electrical and electronic equipment, building automation, industrial applications, machinery, medical equipment and various noisy applications requiring good filter performance.

Two-stage chassis mount filters in aluminium case
Component values are selected to give improved performance in both differential and common mode, particularly at high frequencies
Connection by 0.25in Faston terminals
Optional medical versions (B type) & safety versions (A type) available

Note

FN2070 filters are also available as single- stage filters (FN2020 series)

Approvals

UL recognised, CSA Certified, VDE

Approvals

UL; CSA; VDE
