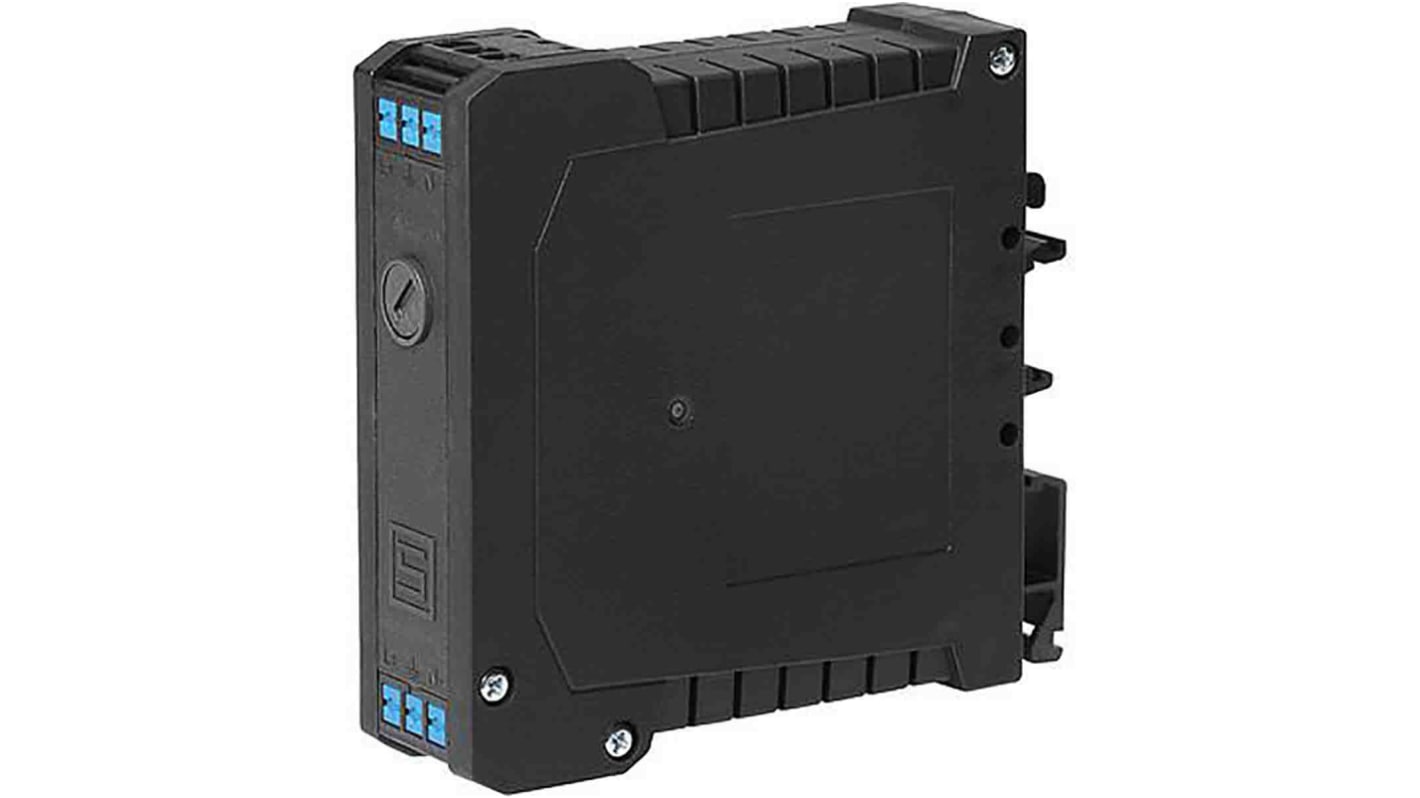

Schurter, FPBB 16A 250 V ac/dc 50Hz, DIN Rail Power Line Filter, Single Phase
- RS-artikelnummer:
- 188-0300
- Tillv. art.nr:
- 3-103-678
- Tillverkare / varumärke:
- Schurter
Mängdrabatt möjlig
Price Var (i en låda med 20)**
254,845 kr
(exkl. moms)
318,556 kr
(inkl. moms)
Tillfälligt slut i lager – restorder för leverans 2025-08-23*
* Leveransdatumen kan ändras beroende på vald kvantitet och leveransadress.
FRI frakt på alla onlineordrar över 500,00 kr
Enheter | Per enhet | Per Låda** |
|---|---|---|
| 20 - 20 | 254,845 kr | 5 096,90 kr |
| 40 - 80 | 247,711 kr | 4 954,22 kr |
| 100 + | 241,086 kr | 4 821,72 kr |
**vägledande pris
- RS-artikelnummer:
- 188-0300
- Tillv. art.nr:
- 3-103-678
- Tillverkare / varumärke:
- Schurter
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Schurter | |
| Maximum Current Rating | 16A | |
| Maximum Voltage Rating | 250 V ac/dc | |
| Mounting Type | DIN Rail | |
| Number of Phases | 1 | |
| Series | FPBB | |
| Operating Frequency | 50 Hz, 60Hz | |
| Length | 25mm | |
| Depth | 89.5mm | |
| Height | 85mm | |
| Dimensions | 25 x 89.5 x 85mm | |
| Minimum Operating Temperature | -40°C | |
| Leakage Current | 0.5 mA | |
| Maximum Operating Temperature | +100°C | |
| Resistance | 8mΩ | |
| Power Loss | 1.55W | |
Välj alla | ||
|---|---|---|
Brand Schurter | ||
Maximum Current Rating 16A | ||
Maximum Voltage Rating 250 V ac/dc | ||
Mounting Type DIN Rail | ||
Number of Phases 1 | ||
Series FPBB | ||
Operating Frequency 50 Hz, 60Hz | ||
Length 25mm | ||
Depth 89.5mm | ||
Height 85mm | ||
Dimensions 25 x 89.5 x 85mm | ||
Minimum Operating Temperature -40°C | ||
Leakage Current 0.5 mA | ||
Maximum Operating Temperature +100°C | ||
Resistance 8mΩ | ||
Power Loss 1.55W | ||
