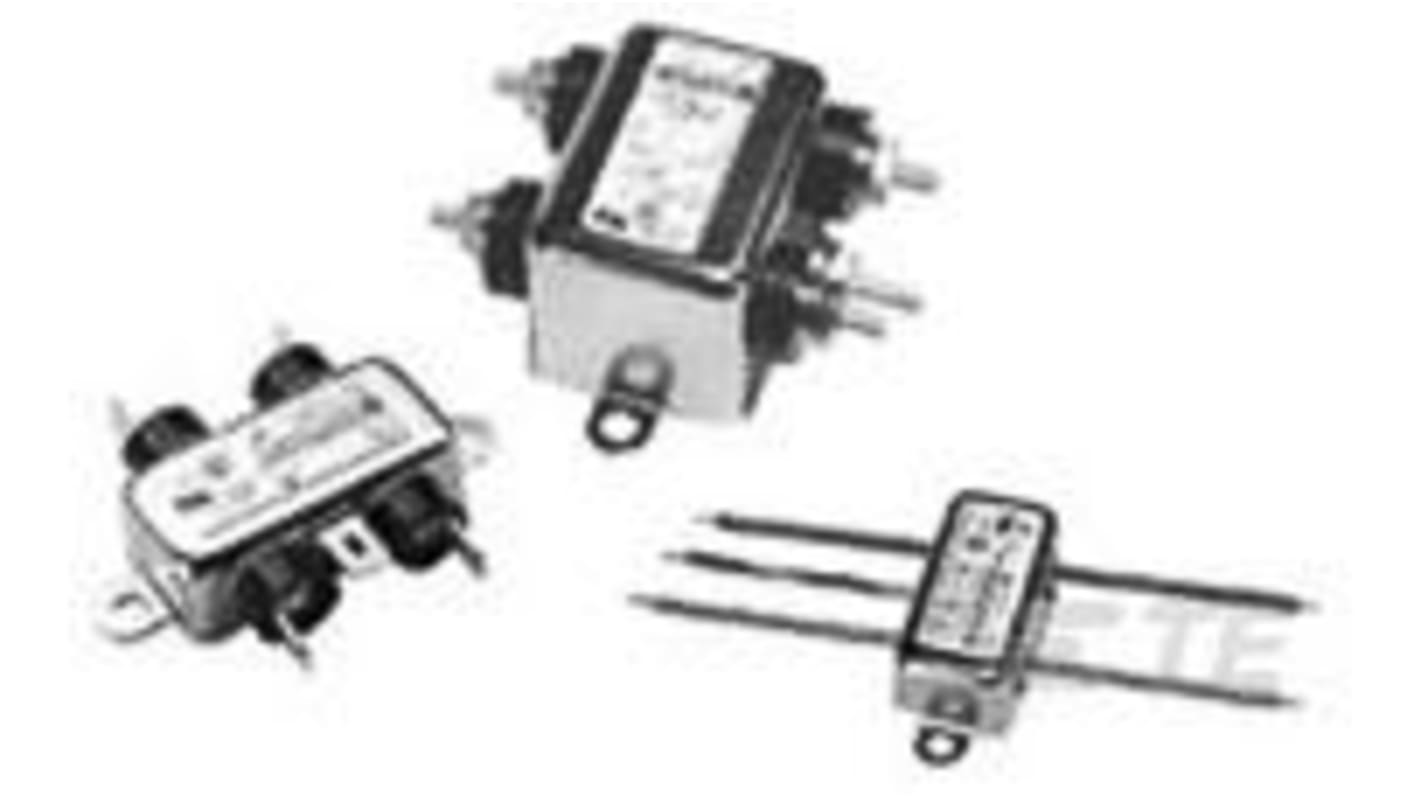

TE Connectivity, Corcom B 5A 250 V ac 50/60Hz, Flange Mount RFI Filter, Fast-On, Single Phase
- RS-artikelnummer:
- 186-3748
- Tillv. art.nr:
- 5VB1
- Tillverkare / varumärke:
- TE Connectivity
71 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
181,32 kr
(exkl. moms)
226,65 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 181,32 kr |
| 5 - 9 | 166,79 kr |
| 10 - 24 | 150,38 kr |
| 25 + | 132,30 kr |
- RS-artikelnummer:
- 186-3748
- Tillv. art.nr:
- 5VB1
- Tillverkare / varumärke:
- TE Connectivity
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
General Purpose RFI Filters for High Impedance Loads at Low Current.
General purpose RFI Filters for high impedance load / low current
General purpose
Wide variety of termination options
Meets low leakage current requirements of VDE portable equipment and non-patient medical equipment
Applications
HVAC
TV / Audio / Video
Computing & accessories
Home appliances
Medical equipment
Battery charging systems
Exercise equipment
General purpose
Wide variety of termination options
Meets low leakage current requirements of VDE portable equipment and non-patient medical equipment
Applications
HVAC
TV / Audio / Video
Computing & accessories
Home appliances
Medical equipment
Battery charging systems
Exercise equipment
Specifikationer
Attribute | Value |
|---|---|
| Maximum Current Rating | 5A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Fast-On |
| Number of Phases | 1 |
| Series | Corcom B |
| Number of Stages | Single Stage |
| Operating Frequency | 50/60Hz |
| Length | 66.3mm |
| Depth | 19.8mm |
| Height | 64.3mm |
| Dimensions | 66.3 x 19.8 x 64.3mm |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +40°C |
