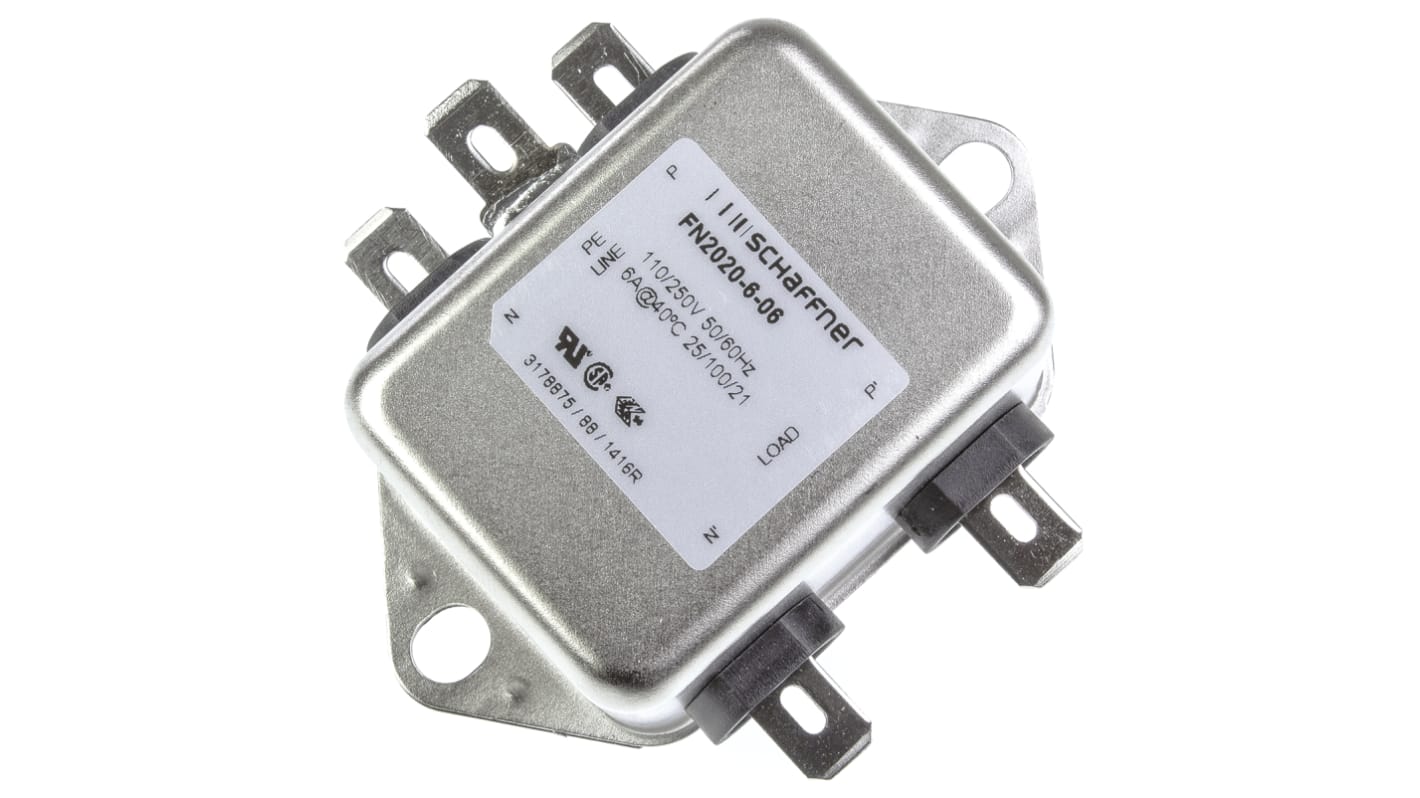

Schaffner, FN2020 6A 250 V ac 400Hz, Flange Mount RFI Filter, Tab


300 I lager för leverans inom 1 arbetsdagar
Add to Basket

Pris (ex. moms) Each (In a Box of 60)

113,632 kr

(exkl. moms)

142,04 kr

(inkl. moms)

Enheter

Lagt till varukorgen

RS-artikelnummer:
170-5001
Tillv. art.nr:
FN2020-6-06
Tillverkare / varumärke:
Schaffner
EnheterPer unitPer Box*
60 +113,632 kr6 817,92 kr
*price indicative

FN2020 Series




Approvals

Approvals

AttributeValue
Maximum Current Rating6A
Maximum Voltage Rating250 V ac
Mounting TypeFlange Mount
Termination StyleTab
Number of StagesSingle Stage
SeriesFN2020
Operating Frequency400Hz
Length64mm
Depth35mm
Capacitance4.7 nF, 150 nF
Height29.3mm
Dimensions64 x 35 x 29.3mm
Inductance1 mH
Minimum Operating Temperature-25°C
Leakage Current0.74 mA
Maximum Operating Temperature+100°C
Resistance1MΩ
