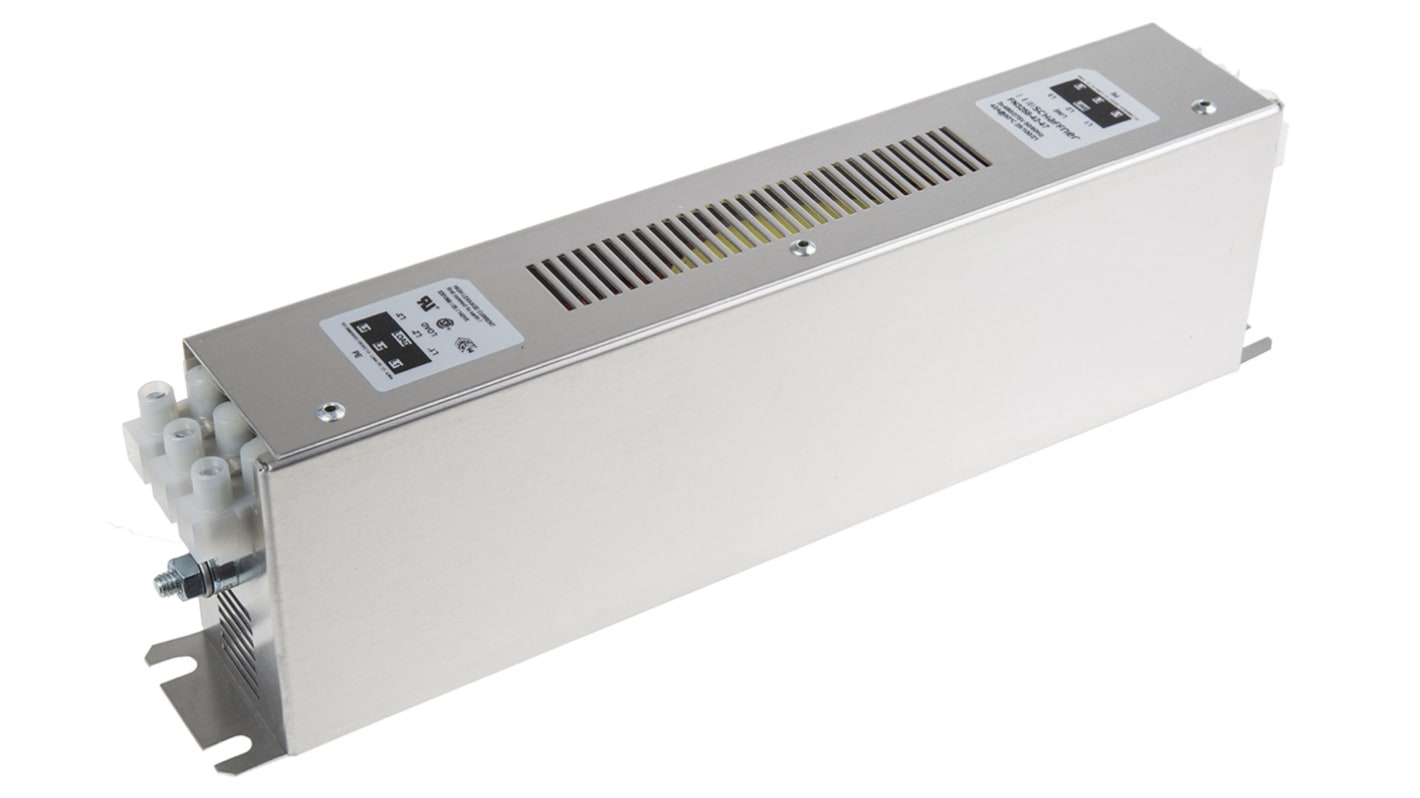

Schaffner, FN351 16A 440 V ac 60Hz, Chassis Mount EMC Filter, Terminal Block 3 Phase

Se alla Power Line Filters
För närvarande inte tillgänglig
Vi vet inte om den här artikeln kommer tillbaka i lager, RS har för avsikt att ta bort den från vårt utbud snart.

Alternativ

Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar denna produkt istället.

presentation
HIGH-POWER FILTER, 16A
RS-artikelnummer
176-8858

Varje

2 741,76 kr

(exkl. moms)

3 427,20 kr

(inkl. moms)

RS-artikelnummer:
170-4974
Tillv. art.nr:
FN 351-16-29
Tillverkare / varumärke:
Schaffner
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Schaffner

Maximum Current Rating

16A

Maximum Voltage Rating

440 V ac

Mounting Type

Chassis Mount

Termination Style

Terminal Block

Number of Phases

3

Number of Stages

Single Stage

Series

FN351

Operating Frequency

60Hz

Length

150mm

Depth

234mm

Height

65mm

Dimensions

150 x 234 x 65mm

Leakage Current

1.9 mA

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+85°C

Power Loss

8W

FN351 Series


FN351 EMC filters from Schaffner provide a range of power ratings for convenient and fast filter selections. With rated currents from 8 A to 280 A and voltages of 440 V and 520 V, FN351 filters are ideal for motor drives and industrial inverters. These line filters offer broadband common mode and differential mode attenuation which remains even when the interference is high. These line filters are compliant with IEC 60950 and feature solid, touchsafe terminals, helping to ensure the overall safety of the equipment.

Product Application Information


Typical applications for these EMC filters include inverters and converters, industrial automation equipment, 3 phase motor drives and 3 phase filtering. Other suitable applications include UPS and SMPS.

Standards

Compliant with IEC 60950
