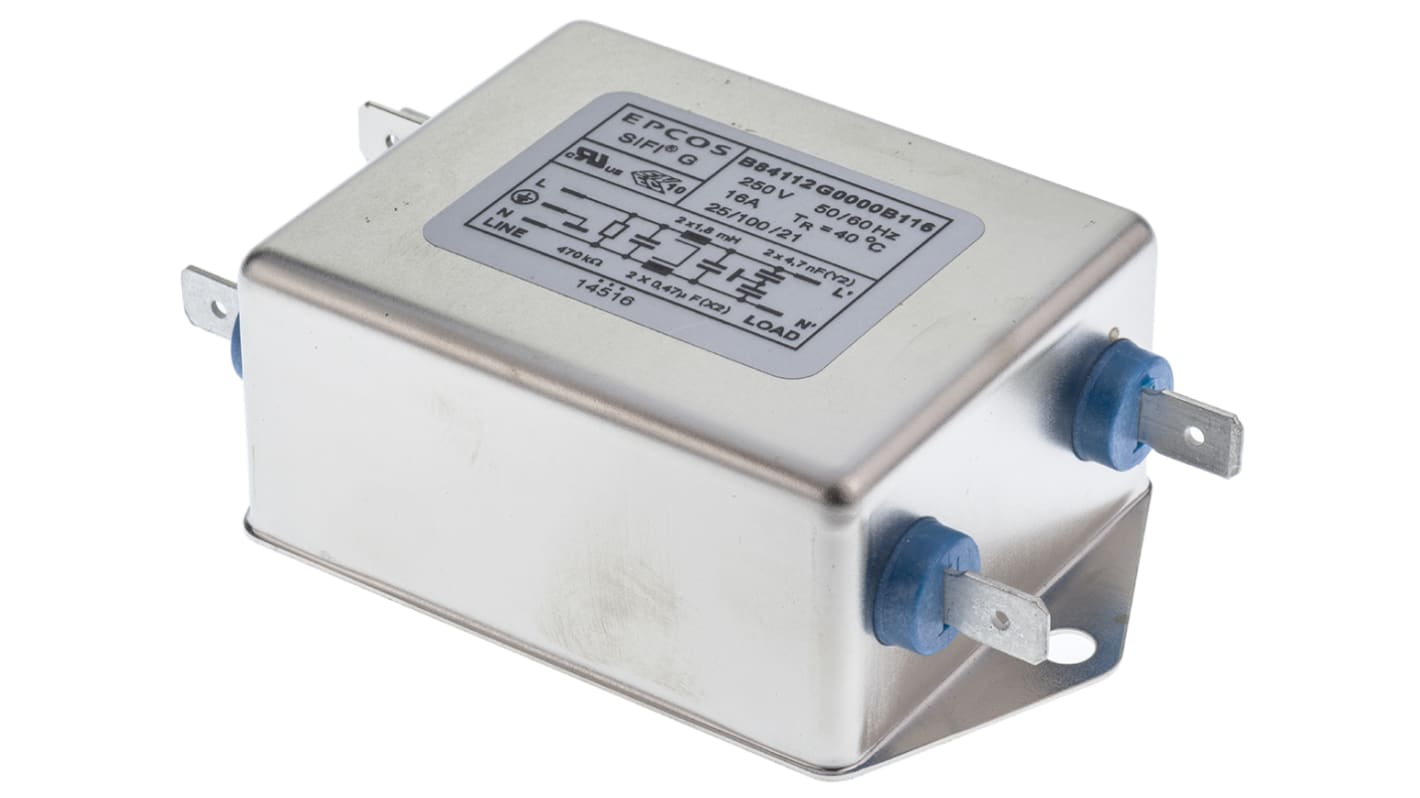

EPCOS, B84112G 16A 250 V ac/dc 50 → 60Hz, Chassis Mount RFI Filter, Screw, Single Phase

  • RS-artikelnummer 167-8314
  • Tillv. art.nr B84112G0000B116
  • Tillverkare / varumärke EPCOS
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

B84112-G Series

TDK B84112-G Series are power filters for single phase systems. Compact in design and easy to install, Constricted of 2 line filters and a metal case.SIFI-G for enhanced insertion loss. Rated voltage VR: 250 V AC/DC.Rated current IR: 2 A to 36 A

Applications

Industrial electronics
Switch-mode power supplies
Telecom systems
Data systems
DC applications
Medical equipment (version B84112G0000M*)

Specifikationer
Attribute Value
Maximum Current Rating 16A
Maximum Voltage Rating 250 V ac/dc
Mounting Type Chassis Mount
Termination Style Screw
Number of Phases 1
Series B84112G
Number of Stages Single Stage
Operating Frequency 50 → 60Hz
Length 89.5mm
Depth 52mm
Height 29mm
Capacitance 0.47 x 2 μF, 4700 x 2 pF
Dimensions 89.5 x 52 x 29mm
Inductance 1.8 x 2 mH
Minimum Operating Temperature -25°C
Leakage Current 0.369 mA
Maximum Operating Temperature +100°C
72 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Box of 24)
172,204 kr
(exkl. moms)
215,255 kr
(inkl. moms)
Enheter
Per unit
Per Box*
24 - 216
172,204 kr
4 132,896 kr
240 - 456
160,201 kr
3 844,824 kr
480 - 576
155,992 kr
3 743,808 kr
600 - 1176
151,99 kr
3 647,76 kr
1200 +
148,185 kr
3 556,44 kr
