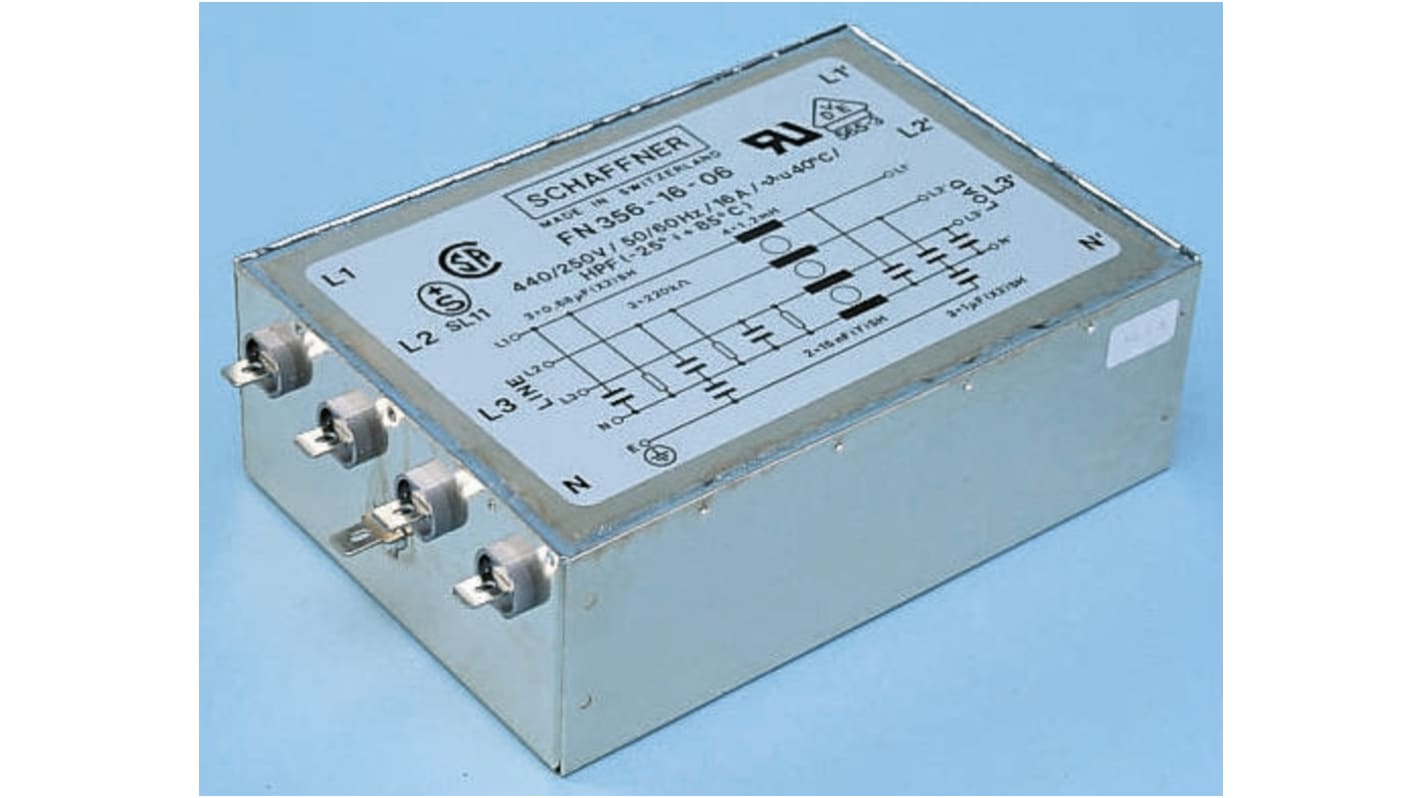

Schaffner, FN356 16A 440/250 V ac 60Hz, Chassis Mount EMI Filter, Tab 3 Phase

Se alla Power Line Filters
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.

Alternativ

Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar denna produkt istället.

presentation
Schaffner, FN3256 16A 520/300 V ac 60Hz, Chassis Mount EMI Filter, Terminal Block 3 Phase
RS-artikelnummer
766-2642

Varje

1 675,60 kr

(exkl. moms)

2 094,50 kr

(inkl. moms)

RS-artikelnummer:
167-4450
Tillv. art.nr:
FN356-16-06
Tillverkare / varumärke:
Schaffner
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Schaffner

Maximum Current Rating

16A

Maximum Voltage Rating

440/250 V ac

Mounting Type

Chassis Mount

Termination Style

Tab

Number of Phases

3

Series

FN356

Number of Stages

Single Stage

Operating Frequency

60Hz

Length

105mm

Depth

171mm

Height

50mm

Dimensions

105 x 171 x 50mm

Leakage Current

0.43 mA

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+100°C

Power Loss

7W

FN 356 series three-phase power filters


Schaffner's FN356 filters provide high attenuation of both symmetrical and asymmetrical interference. Solid touch-safe terminal blocks offer a generous contacting cross section and contribute to overall safety.

Can be used in a wide range of applications such as general purpose four-wire filtering, mainframe computer systems and office equipment.

Compact filters featuring excellent attenuation characteristics
Choice of connection styles
Low operating leakage current
