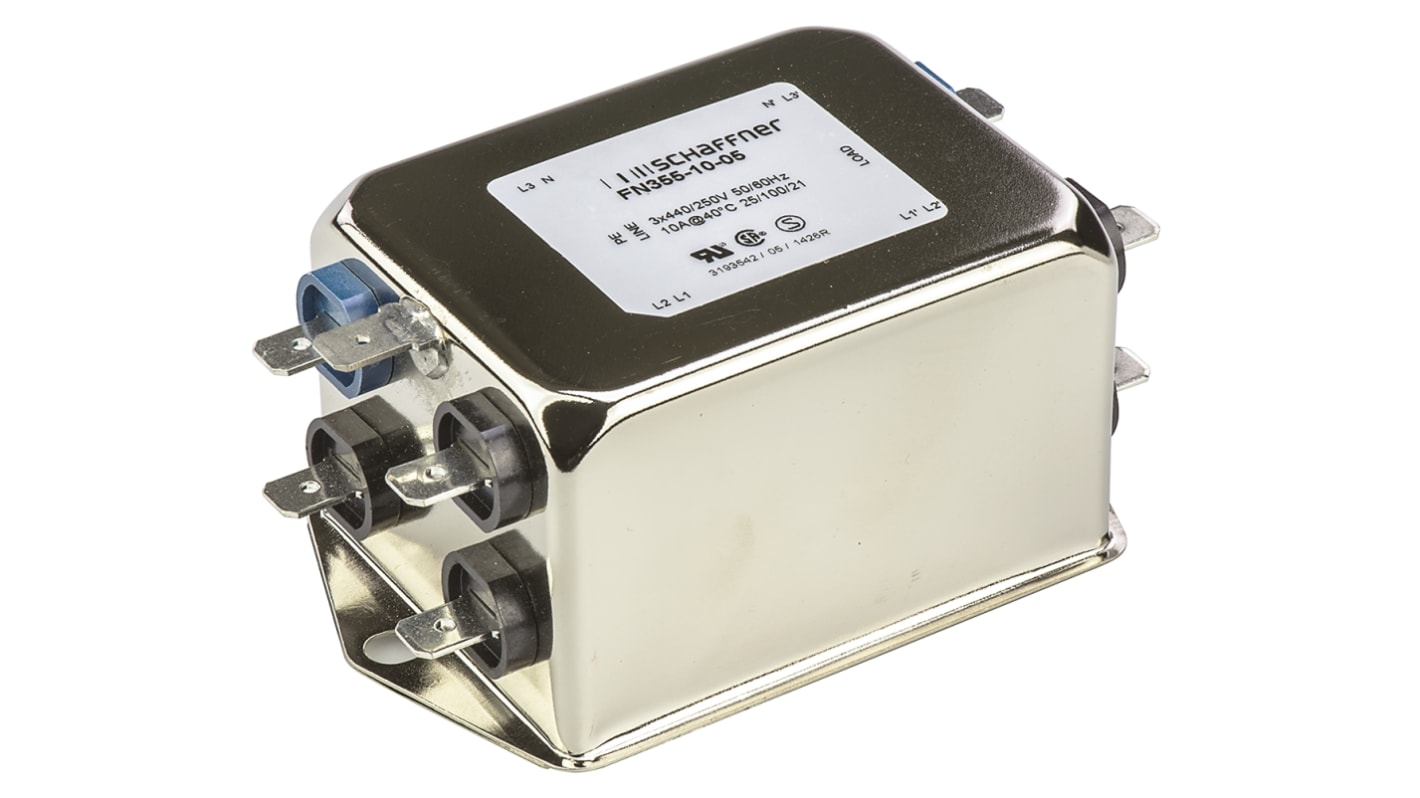

Schaffner FN 355 Series 10A 440 V ac 400Hz Flange Mount RFI Filter, with Tab Terminals
- RS-artikelnummer:
- 147-9750
- Tillv. art.nr:
- FN355-10-05
- Tillverkare / varumärke:
- Schaffner
Mängdrabatt möjlig
Antal (1 enhet)*
648,55 kr
(exkl. moms)
810,69 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 45 enhet(er) är redo att levereras
- Plus 26 enhet(er) är redo att levereras från en annan plats
- Dessutom levereras 40 enhet(er) från den 16 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 4 | 648,55 kr |
| 5 - 9 | 616,11 kr |
| 10 - 24 | 583,74 kr |
| 25 - 49 | 551,15 kr |
| 50 + | 531,78 kr |
*vägledande pris
- RS-artikelnummer:
- 147-9750
- Tillv. art.nr:
- FN355-10-05
- Tillverkare / varumärke:
- Schaffner
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Schaffner | |
| Maximum Current Rating | 10A | |
| Maximum Voltage Rating | 440 V ac | |
| Mounting Type | Flange Mount | |
| Termination Style | Tab | |
| Series | FN 355 | |
| Number of Stages | Single Stage | |
| Operating Frequency | 400Hz | |
| Length | 54mm | |
| Depth | 87.2mm | |
| Height | 40.3mm | |
| Dimensions | 54 x 87.2 x 40.3mm | |
| Leakage Current | 0.07 mA | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +100°C | |
| CAD Drawing | 3D CAD Model | |
| Power Loss | 1.8W | |
| Välj alla | ||
|---|---|---|
Brand Schaffner | ||
Maximum Current Rating 10A | ||
Maximum Voltage Rating 440 V ac | ||
Mounting Type Flange Mount | ||
Termination Style Tab | ||
Series FN 355 | ||
Number of Stages Single Stage | ||
Operating Frequency 400Hz | ||
Length 54mm | ||
Depth 87.2mm | ||
Height 40.3mm | ||
Dimensions 54 x 87.2 x 40.3mm | ||
Leakage Current 0.07 mA | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +100°C | ||
CAD Drawing 3D CAD Model | ||
Power Loss 1.8W | ||
FN355 Series
The FN355 series of EMC/EMI line filters from Schaffner provide exceptionally low operating leakage current. Offered in 3 phase and neutral options, FN355 line filters can be used in a range of applications and are a cost effective interference suppression solution. With a space saving compact design, these four wire line filters are ideal for applications where space is restricted.
Constructed with metal housing, these EMI filters use a single stage four wire LC circuit. Different current rating options are available.
Constructed with metal housing, these EMI filters use a single stage four wire LC circuit. Different current rating options are available.
Product Application Information
Suitable applications include star and delta power networks, medical equipment, office equipment and general purpose four wire filtering.
