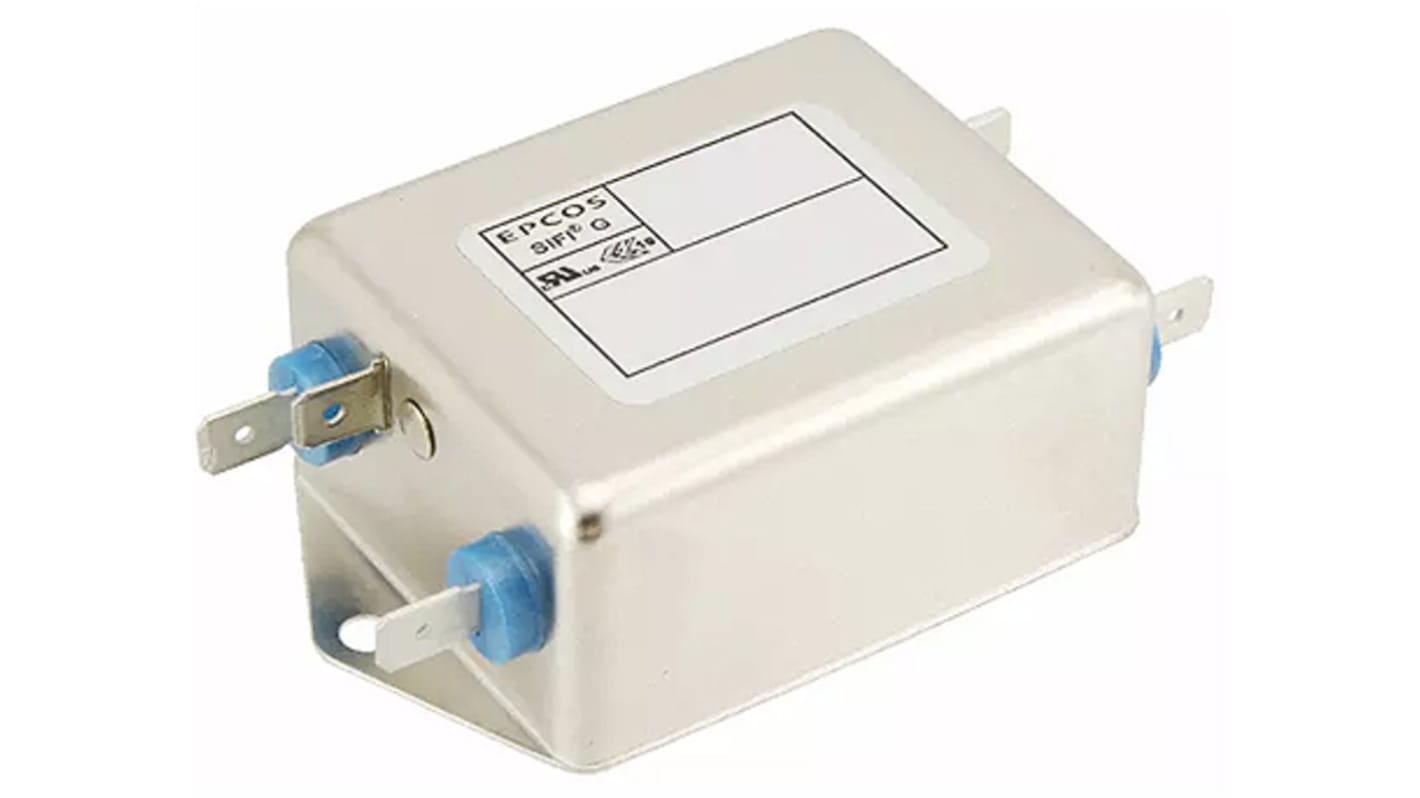

EPCOS, B84112G 8A 250 V ac/dc 50 → 60Hz, Chassis Mount EMC Filter, Lug, Tab Connector, Single Phase
- RS-artikelnummer:
- 124-5294
- Tillv. art.nr:
- B84112G0000M080
- Tillverkare / varumärke:
- EPCOS
14 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
249,75 kr
(exkl. moms)
312,19 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 9 | 249,75 kr |
| 10 - 19 | 229,45 kr |
| 20 - 24 | 223,24 kr |
| 25 - 49 | 217,36 kr |
| 50 + | 211,82 kr |
- RS-artikelnummer:
- 124-5294
- Tillv. art.nr:
- B84112G0000M080
- Tillverkare / varumärke:
- EPCOS
Lagstiftning och ursprungsland
- COO (Country of Origin):
- HU
Produktdetaljer
B84112-G Series
TDK B84112-G Series are power filters for single phase systems. Compact in design and easy to install, Constricted of 2 line filters and a metal case.SIFI-G for enhanced insertion loss. Rated voltage VR: 250 V AC/DC.Rated current IR: 2 A to 36 A
Applications
Industrial electronics
Switch-mode power supplies
Telecom systems
Data systems
DC applications
Medical equipment (version B84112G0000M*)
Switch-mode power supplies
Telecom systems
Data systems
DC applications
Medical equipment (version B84112G0000M*)
Specifikationer
Attribute | Value |
|---|---|
| Maximum Current Rating | 8A |
| Maximum Voltage Rating | 250 V ac/dc |
| Mounting Type | Chassis Mount |
| Termination Style | Lug, Tab Connector |
| Number of Phases | 1 |
| Number of Stages | Single Stage |
| Series | B84112G |
| Operating Frequency | 50 → 60Hz |
| Length | 63mm |
| Depth | 51mm |
| Height | 29mm |
| Capacitance | 0.47 x 2µF |
| Dimensions | 63 x 51 x 29mm |
| Inductance | 2.5 x 2 mH |
| Leakage Current | 0 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Standards Met | UL 1283 |
