EPCOS, B84143V 11A 520 V ac 50/60Hz, Chassis Mount EMC Filter, Terminal Block 3 Phase

Se alla Power Line Filters

Antal (1 enhet)*

4 373,76 kr

(exkl. moms)

5 467,20 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Tillfälligt slut
  • Leverans från den 14 maj 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +4 373,76 kr

*vägledande pris

RS-artikelnummer:
111-5316
Tillv. art.nr:
B84143V0011R227
Tillverkare / varumärke:
EPCOS
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

EPCOS

Maximum Current Rating

11A

Maximum Voltage Rating

520 V ac

Mounting Type

Chassis Mount

Termination Style

Terminal Block

Number of Phases

3

Series

B84143V

Operating Frequency

50/60Hz

Length

780mm

Depth

250mm

Height

360mm

Dimensions

780 x 250 x 360mm

Maximum Operating Temperature

+70°C

COO (Country of Origin):
HU

B84143V*R227

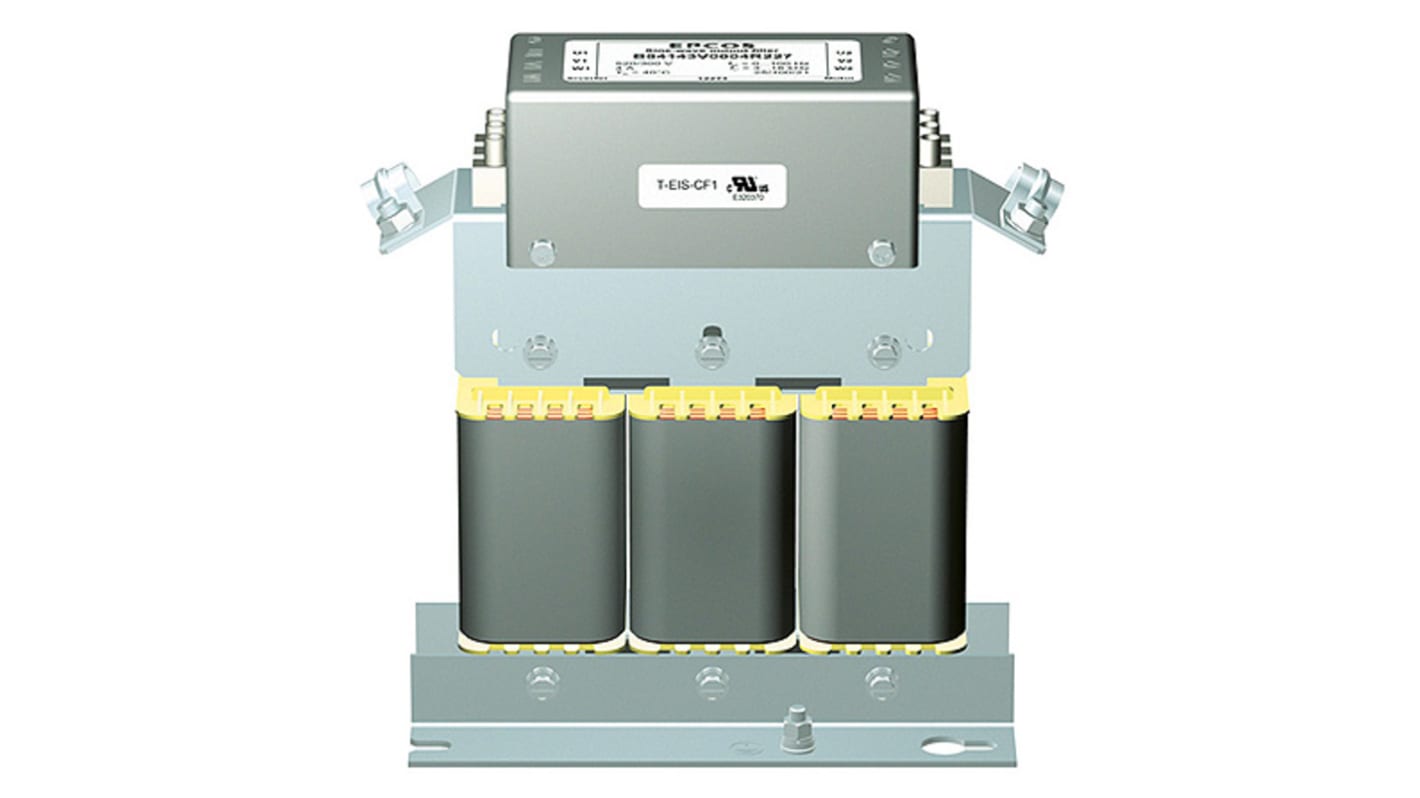

The B84143V*R227 series from EPCOS are sine wave output filters for 3 phase systems. Constructed from 3-line filters, these EMC filters are easy to install and feature a compact design. Offering eddy current losses and a reduction of motor noise, these EMC filters also provide natural cooling. They are optimised for operation under full load and designed for long motor cables.

Generate low ripple sinusoidal phase-to-phase voltage
Dv/dt reduction
IP20 protection up to 95 A
Finger safe terminal blocks in the versions up to 180A
Copper busbar terminals in the 250 A and 320 A versions

Product Application Information


These EMC filters are suitable for use in frequency converters for motor drives in HVAC systems, traction and conveyer systems, pumps and elevators.

Caution

The wiring between the filter and the inverter must be shorter than 10 m

Approvals

T-EIS-CF1 UL approved insulation system
