RS PRO 5A 240 V ac 50/60Hz, Chassis Mount RFI Filter, Fast-On

Se alla Power Line Filters
Mängdrabatt möjlig

Antal (1 enhet)*

2 628,13 kr

(exkl. moms)

3 285,16 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 68 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 - 42 628,13 kr
5 - 92 470,38 kr
10 +2 339,01 kr

*vägledande pris

RS-artikelnummer:
240-696
Tillverkare / varumärke:
RS PRO
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

RS PRO

Maximum Current Rating

5A

Maximum Voltage Rating

240 V ac

Mounting Type

Chassis Mount

Termination Style

Fast-On

Number of Stages

Three Stage

Series

MA05/10

Operating Frequency

50/60Hz

Length

85mm

Depth

52mm

Height

40mm

Dimensions

85 x 52 x 40mm

Minimum Operating Temperature

-25°C

Leakage Current

< 0.3 mA

Maximum Operating Temperature

+85°C

Standards Met

EN 60950

RoHS-status: Undantagen

COO (Country of Origin):
GB

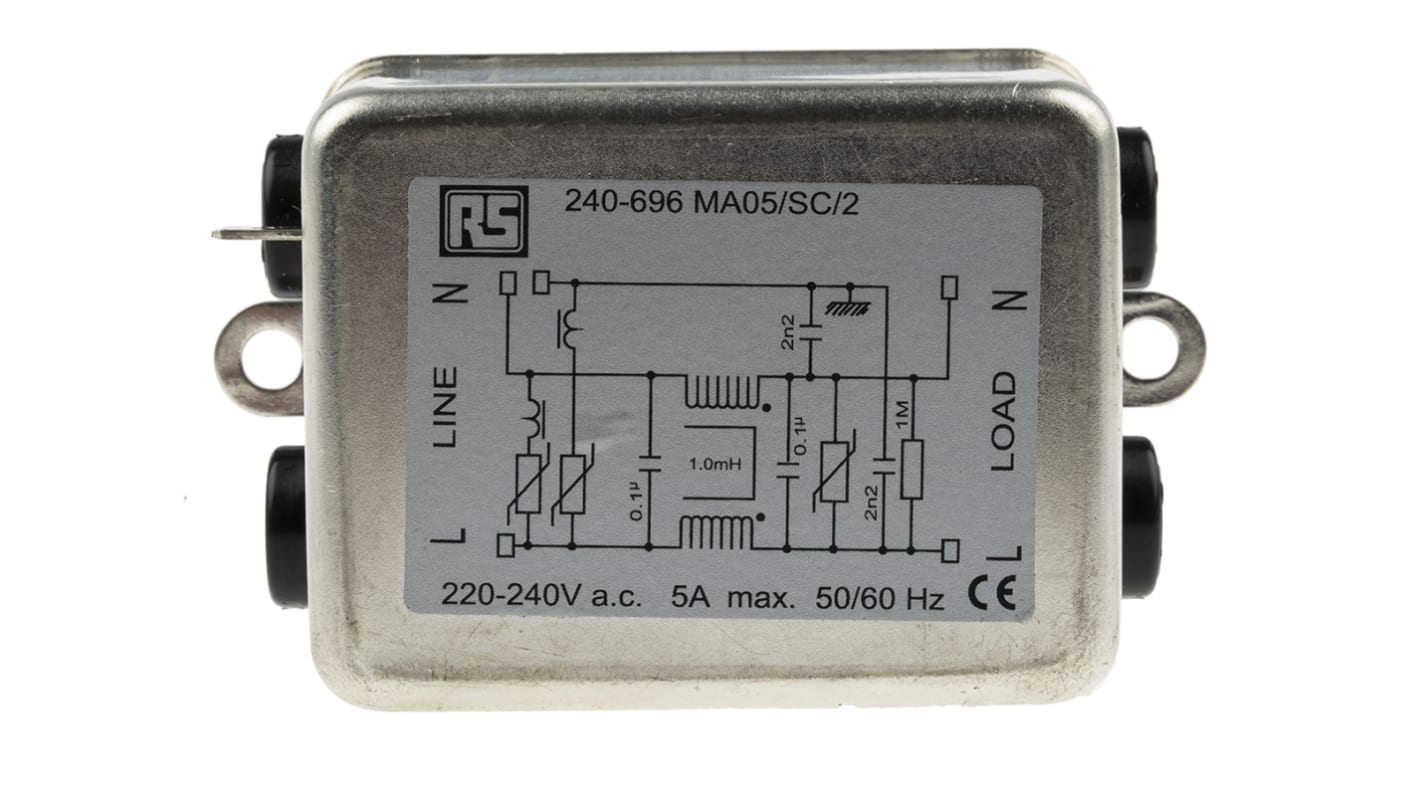

RS PRO Chassis Mounting RFI Filter, Fast-On, 5 A, 240 V AC, 50/60 Hz


Protect your equipment from the effects of RFI (radio frequency interference) with this filter from RS PRO. It's a three-stage filter system that can attenuate signal noise up to 73 dB (decibels), and offer protection from surges up to 6500 A.
The component is designed for chassis mounting, so it can be set up on machinery or panels with minimal maintenance or additional tooling. It has 1/4 in receptacles that allow you to set up connections to other parts of your circuitry with push-on termination, for an easy installation. A tin-plated steel enclosure offers a good level of impact strength and durability, for a long lifespan.
With a wide operating temperature range of -25°C to +85°C, this product is suitable for a variety of demanding settings. Use it in power grids and medical equipment.

Features and Benefits


• Frequency of 50 Hz (hertz)/60 Hz
• Dimensions of 52 (depth) x 40 (height) x 85 mm (length)
• Leakage current greater than 0.3 mA (milliampere)
• Maximum current rating of 5 A
• Operating temperature range of -25°C to +85°C
• Maximum voltage rating of 240 V (volts) AC
• Three-stage
• Chassis mounting
• Fast-on termination style
