Festo 40 l/sec. G 1/4 Water Separator, 6μm filtration, 2bar to 12 bar

RS-artikelnummer:: 202-3209
Tillv. art.nr:: MS6-LWS-1/4-U-V
Tillverkare / varumärke:: Festo

Festo 40 l/sec. G 1/4 Water Separator, 6μm filtration, 2bar to 12 bar

Antal (1 enhet)*

3 255,84 kr

(exkl. moms)

4 069,80 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

3 enhet(er) är redo att levereras från en annan plats

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 +	3 255,84 kr

*vägledande pris

RS-artikelnummer:: 202-3209
Tillv. art.nr:: MS6-LWS-1/4-U-V
Tillverkare / varumärke:: Festo

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Festo
	Port Connection	G 1/4
	Typical Flow	40 l/sec.
	Filtration Size	6µm
	Manufacturer Series	MS
	Typical Flow Rated At	2 → 12bar
	Port Connection Thread Size	0.25
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	+60°C
	Maximum Operating Pressure	12 bar
	Port Connection Thread Standard	G
	Minimum Operating Pressure	2bar

	Välj alla
	Brand Festo
	Port Connection G 1/4
	Typical Flow 40 l/sec.
	Filtration Size 6µm
	Manufacturer Series MS
	Typical Flow Rated At 2 → 12bar
	Port Connection Thread Size 0.25
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature +60°C
	Maximum Operating Pressure 12 bar
	Port Connection Thread Standard G
	Minimum Operating Pressure 2bar

COO (Country of Origin):: HU

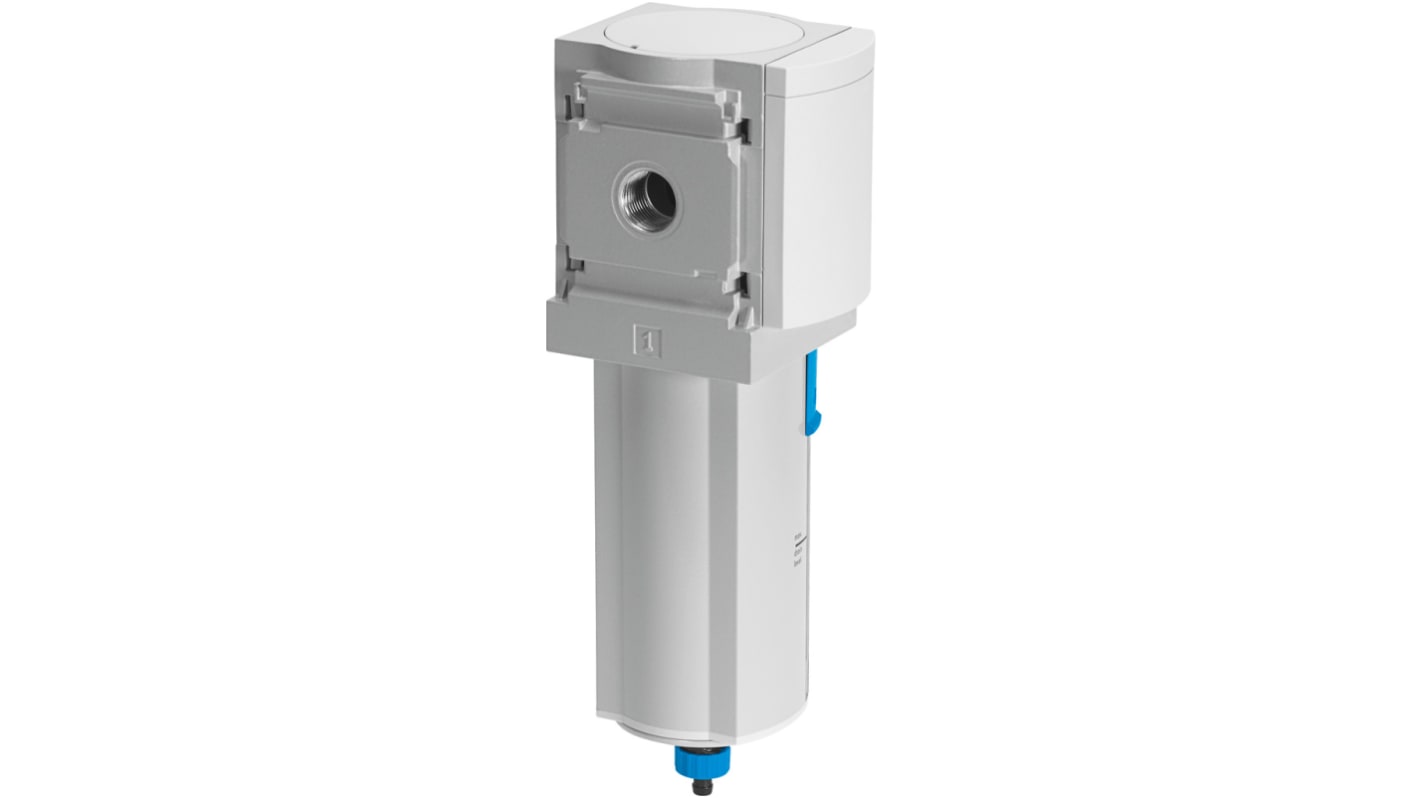

Festo Water Separator, PA Material Screen, Integrated Bowl Guard - MS6-LWS-1/4-U-V

Is moisture dampening the performance of your pneumatic setup? Add this water separator from Festo to your network. It keeps things running smoothly by removing 99% of water from the supply, so there's no risk of ice blocking your pipework or corrosion interfering with the flow. After collecting up to 38ml of condensate, the inbuilt drain automatically comes into play. This saves you from having to manually remove the wastewater after each operating cycle. A die-cast aluminium housing holds true in harsh conditions, so you can count on it over the long haul.

Features & Benefits

• Operating pressure range between 2 and 12 bar suits lower-pressure applications
• 6μm filter size removes particulates effectively
• Industry-standard G1/4 port for wide compatibility with pneumatic connections
• Performs reliably in temperatures between +5°C and +60°C
• NBR seals keep out contaminants while maintaining system pressure

Applications

• Aerospace engineering
• Pharmaceutical production
• Mining industry

How heavy is this unit?

This water separator only weighs 820g, so it keeps your setup free of unnecessary strain.

What's the best position for assembly?

The device operates optimally when assembled vertically, and offers a handy ±5° leeway.
