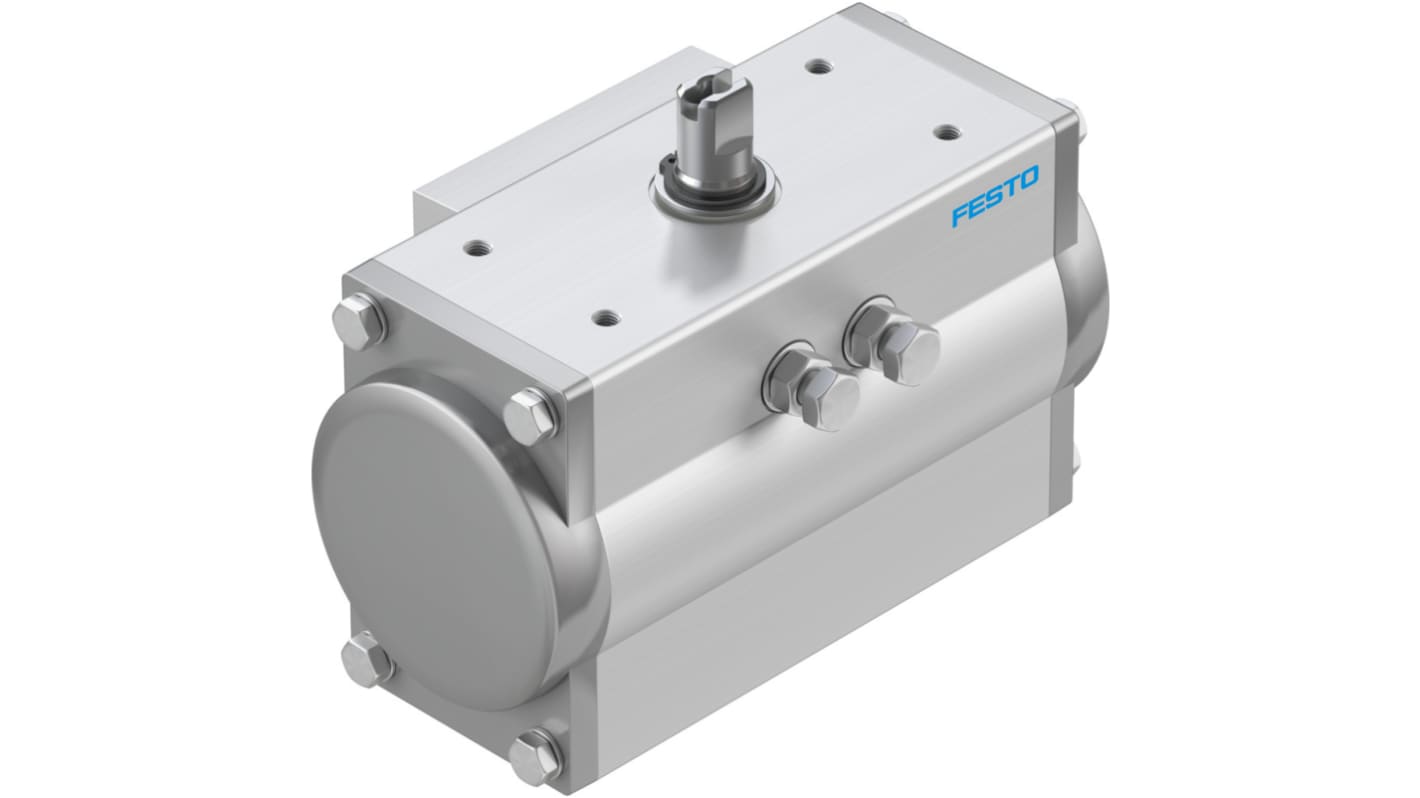

Festo DFPD Series 8 bar Double Action Pneumatic Rotary Actuator, 90° Rotary Angle, 20mm Bore

RS-artikelnummer:: 281-1720
Tillv. art.nr:: DFPD-20-RP-90-RD-F05-R3-EP
Tillverkare / varumärke:: Festo

Festo DFPD Series 8 bar Double Action Pneumatic Rotary Actuator, 90° Rotary Angle, 20mm Bore

Price Varje*

1 383,14 kr

(exkl. moms)

1 728,92 kr

(inkl. moms)

GRATIS leverans för beställningar över 500,00 kr

Tillfälligt slut

Leverans från den 05 juli 2025

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 +	1 383,14 kr

*vägledande pris

RS-artikelnummer:: 281-1720
Tillv. art.nr:: DFPD-20-RP-90-RD-F05-R3-EP
Tillverkare / varumärke:: Festo

Datasheet - DFPD-20-RP-90-RD-F05-R3-EP

Festo DFPD Series Pneumatic Rotary Actuator, 90° Rotary Angle, 20mm Bore - DFPD-20-RP-90-RD-F05-R3-EP, Numeric Part Number: 8048013

This pneumatic rotary actuator is designed for precision control in automation applications. With a 90° rotary angle and a bore size of 20mm, it offers robust performance in various industrial settings. The actuator features a double-acting mechanism, providing efficient handling of tasks requiring precise movement and positioning. Weighing in at 1275g, it is suitable for a variety of installations and mounting positions.

Features & Benefits

• G 1/8 port connection ensures seamless integration
• Built to withstand ambient temperatures between -20°C and +80°C
• Non-cushioned type allows for quicker response times
• Rugged construction with corrosion resistance class CRC 1

Applications

• Used for controlling valves in process automation
• Ideal for tasks requiring precise angular movement
• Suitable for in environments with potential explosive atmospheres
• Can be paired with standard ISO 5211 fittings for easy installation

What is the significance of the double-acting design in this actuator?

The double-acting design allows for efficient movement in both directions, enhancing operational efficiency and reducing cycle times in industrial applications.

How does the maximum operating pressure influence performance?

The maximum operating pressure of 8 bar enables the actuator to perform demanding tasks reliably, ensuring consistent power delivery for heavy-duty applications.

Is the actuator compatible with position sensors?

Yes, it features a connection point for positioners and position sensors conforming to VDI/VDE 3845 standards, allowing for enhanced control over movements.

What are the materials used in the construction of this actuator?

This actuator is constructed using anodised wrought aluminium alloy and high-alloy stainless steel, ensuring durability and low corrosion risk in demanding environments.

How does lubrication affect the operation of the actuator?

Lubrication is possible and may be required for optimal performance in specific applications, ensuring smooth operation and longevity of components.

Attribute	Value
Rotary Angle	90°
Action	Double
Bore	20mm
Manufacturer Series	DFPD
Maximum Operating Pressure	8 bar
Absolute Maximum Pressure	24bar
Cushioning Type	Not Cushioned
Port Connection	G 1/8
Weight	1.3kg
Model Number	8048013
Series	DFPD
Size Type	Standard
