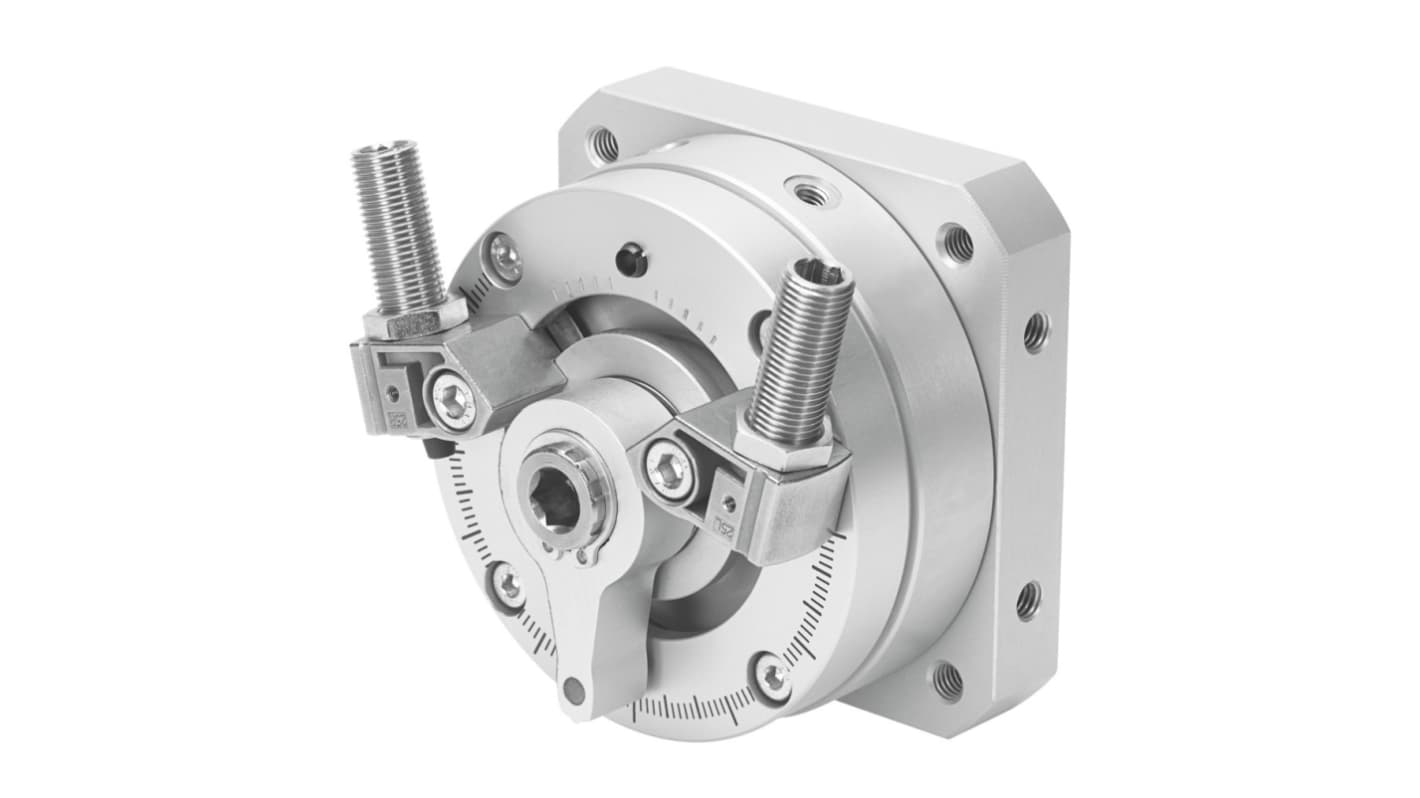

Festo DSM Series 10 bar Double Action Pneumatic Rotary Actuator, 246° Rotary Angle, 25mm Bore

RS-artikelnummer:: 275-3159
Tillv. art.nr:: DSM-25-270-P1-A-B
Tillverkare / varumärke:: Festo

Festo DSM Series 10 bar Double Action Pneumatic Rotary Actuator, 246° Rotary Angle, 25mm Bore

Price Varje*

3 735,78 kr

(exkl. moms)

4 669,72 kr

(inkl. moms)

GRATIS leverans för beställningar över 500,00 kr

I lager

2 enhet(er) är redo att levereras från en annan plats

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 +	3 735,78 kr

*vägledande pris

RS-artikelnummer:: 275-3159
Tillv. art.nr:: DSM-25-270-P1-A-B
Tillverkare / varumärke:: Festo

Festo Series DSM Pneumatic Rotary Actuator, 25mm Bore, 246° Rotary Angle - DSM-25-270-P1-A-B, Numeric Part Number: 566207

This pneumatic rotary actuator is a robust and reliable product designed for precise motion control in various automation systems. It features a 25mm bore and a maximum rotary angle of 246°, providing versatile applications. Weighing 715 g, this actuator meets the demands of high-performance environments while maintaining compact dimensions.

Features & Benefits

• Offers double-acting functionality for efficient operations
• Designed for a maximum operating pressure of 10 bar
• Equipped with elastic cushioning rings for smooth movement
• M5 port connection ensures easy integration into existing systems
• Engineered for precise positioning in pneumatic applications

Applications

• Used in assembly automation for precise component placement
• Suitable for packaging machines to control lid
• Employed in robotic systems for accurate movement control
• Utilised in material handling systems for effective load management
• Ideal for automotive manufacturing where precision is crucial

What is the effective pressure range for optimised operation?

The actuator operates effectively at a maximum pressure of 10 bar, which ensures high performance in demanding applications.

How does the elastic cushioning enhance its functionality?

The elastic cushioning rings significantly reduce impact during motion, leading to smoother operation and extended service life.

What type of connections are compatible with this actuator?

It features an M5 port connection, which allows for quick and reliable setup in various pneumatic systems.

What weight considerations should be taken into account during installation?

Weighing 715 g, it is lightweight, making installation easy and allowing for flexible mounting options without additional structural support.

Can it be integrated with existing pneumatic systems easily?

Yes, its compact design and M5 connectivity allow for straightforward integration into pre-existing pneumatic frameworks, saving time during setup.

Attribute	Value
Rotary Angle	246°
Action	Double
Bore	25mm
Manufacturer Series	DSM
Maximum Operating Pressure	10 bar
Cushioning Type	Elastic
Port Connection	M5
Weight	715g
Model Number	566207
