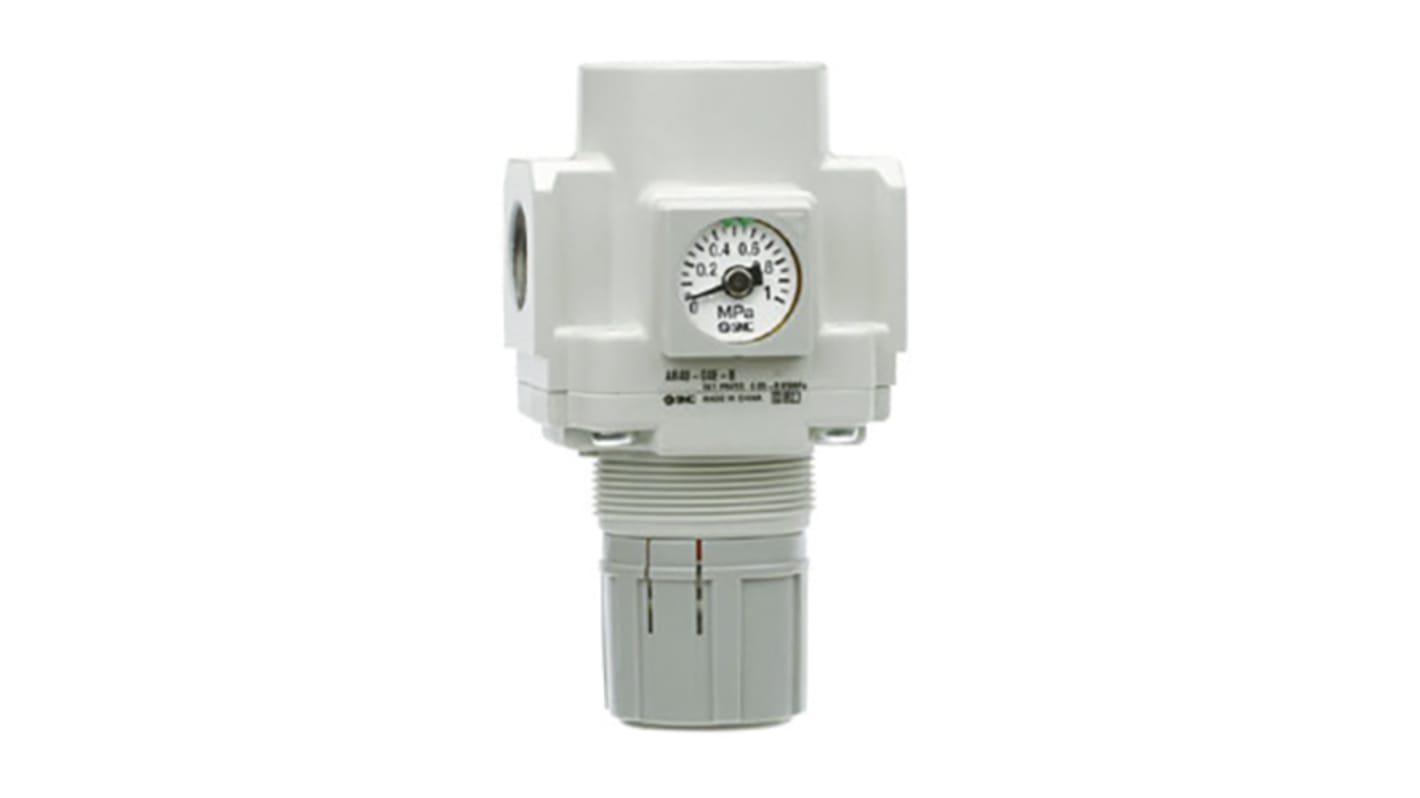

SMC G 1/4 Pneumatic Regulator - 0.05MPa to 0.85MPa, 1/4in, 1MPa max. input

Se alla Pneumatic Regulators
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.

Alternativ

Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar denna produkt istället.

presentation
SMC G 1/4 Regulator - 0.05MPa to 0.85MPa, 1.5MPa max. input
RS-artikelnummer
255-3291

Varje

406,76 kr

(exkl. moms)

508,45 kr

(inkl. moms)

RS-artikelnummer:
890-3156
Tillv. art.nr:
AR20-F02G-B
Tillverkare / varumärke:
SMC
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

SMC

Port Connection

G 1/4

Maximum Outlet Pressure

0.85MPa

Minimum Outlet Pressure

0.05MPa

Maximum Input Pressure

1MPa

Pressure Gauge Port Size

G 1/8

Port Connection Thread Size

1/4in

Pressure Gauge Port Thread Size

1/8in

Maximum Flow Rate

20L/min

Integral Check Valve

Without Check Valve

Port Connection Thread Standard

G

Minimum Operating Temperature

-5°C

Maximum Operating Temperature

60°C

Pressure Gauge Port Thread Standard

G

Overall Height

94mm

Overall Dimensions

40 x 57 x 94mm

Proof Pressure

1.5MPa

Overall Width

57mm

Overall Length

40mm

RoHS-status: Undantagen

COO (Country of Origin):
FR

SMC Air Regulator AR20-B - AR40-B


SMC’s new AR-B series pneumatic regulators with a pressure range setting of 0.05 to 0.7 MPa or 0.02 to 0.2 MPa. The modular design of these pneumatic regulators allows connection to other SMC air preparation equipment and the AR-B series can be mounted using a bracket or panel mounted.
