SMC Pneumatic Regulator G 1/4 20L/min, 0.05 → 0.85Mpa

  • RS-artikelnummer 884-6788
  • Tillv. art.nr AR25-F02H-B
  • Tillverkare / varumärke SMC
Datablad
Lagstiftning och ursprungsland
Uppfyller ej
COO (Country of Origin): JP
Produktdetaljer

SMC Air Regulator AR20-B - AR40-B

SMC’s new AR-B series pneumatic regulators with a pressure range setting of 0.05 to 0.7 MPa or 0.02 to 0.2 MPa. The modular design of these pneumatic regulators allows connection to other SMC air preparation equipment and the AR-B series can be mounted using a bracket or panel mounted.

Note

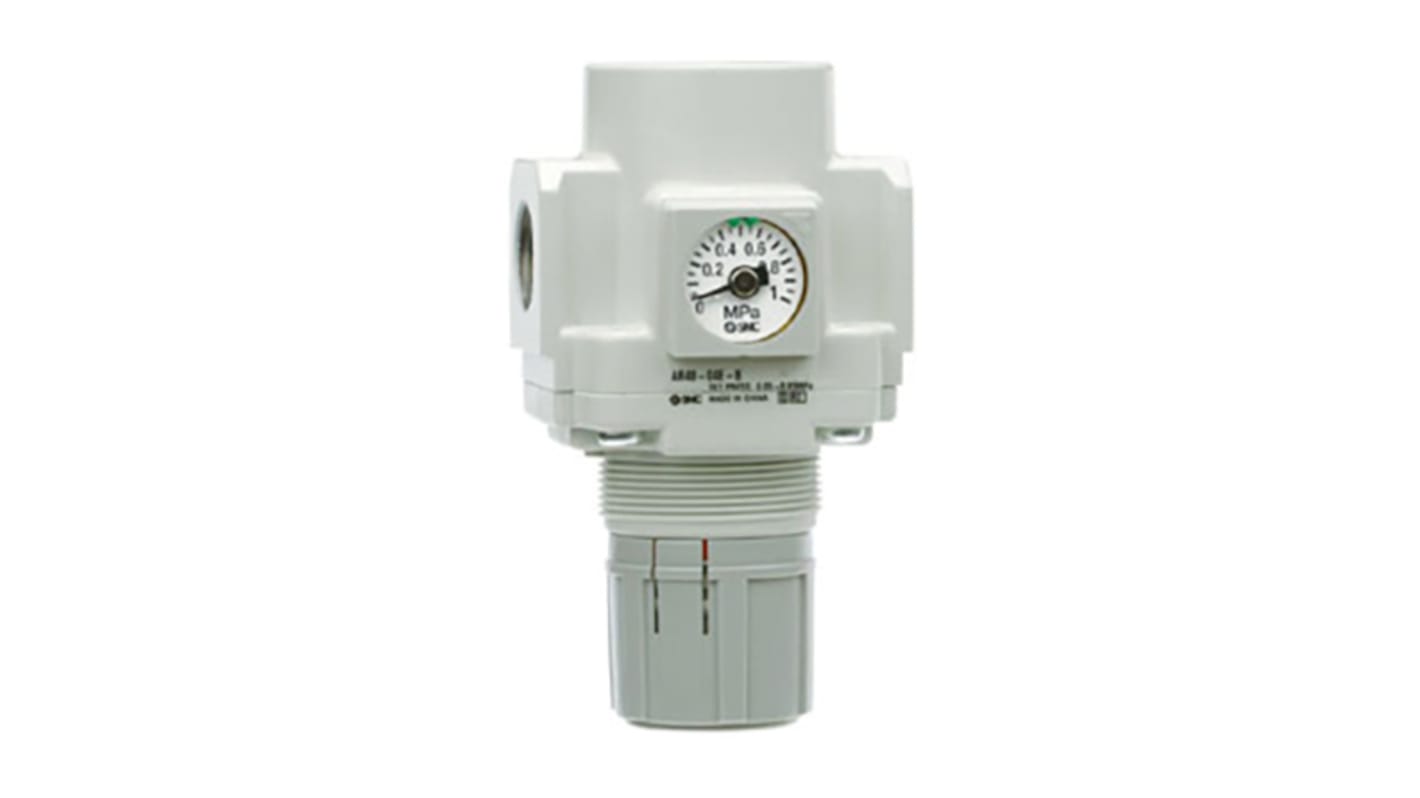

An integral Pressure Gauge is shown on the picture for reference only. It is not supplied as a part of the set and has to be bought separately.

Specifikationer
Attribute Value
Port Connection G 1/4
Minimum Outlet Pressure 0.05MPa
Maximum Outlet Pressure 0.85MPa
Maximum Input Pressure 1MPa
Pressure Gauge Port Size Rc 1/8
Port Connection Thread Size 1/4
Pressure Gauge Port Thread Size 1/8 in
Maximum Flow Rate 20L/min
Integral Check Valve Without Check Valve
Port Connection Thread Standard G
Minimum Operating Temperature -5°C
Maximum Operating Temperature +60°C
Overall Width 55mm
Pressure Gauge Port Thread Standard Rc
Overall Height 101mm
Proof Pressure 1.5MPa
